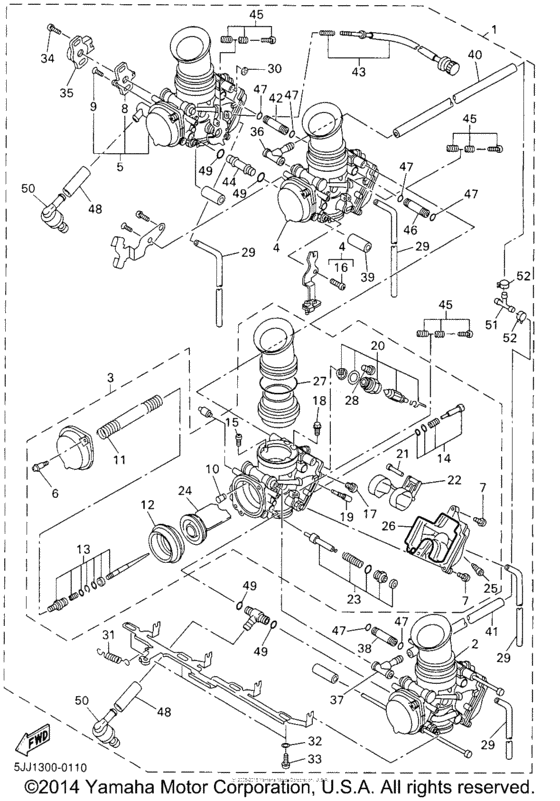

Carburetor Diagram Yamaha YZF-R1 R1 Champions Limited Edition
- Year
- 2001
- Colour
- Deep Purplish Blue Metallic C
- Model code
- 5JJF
- Sales region
- USA
- Базовая модель
- YZFR1SN
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5JJ-14900-20-00 Carburetor Assy5JJG |
5JJ-14900-20-00 |
US $2,785.09 |
||
|
1
|
1
5JJ-14900-40-00 Carburetor Assy5JJF |
5JJ-14900-40-00 |
US $2,785.09 |
||
|
2
|
2
5JJ-14901-20-00 Carburetor Assy 15JJG |
5JJ-14901-20-00 |
US $789.12 |
||
|
2
|
2
5JJ-14901-40-00 Carburetor Assy 15JJF |
5JJ-14901-40-00 |
US $797.09 |
||
|
3
|
3
5JJ-14902-20-00 Carburetor Assy 25JJG |
5JJ-14902-20-00 |
US $818.39 |
||
|
3
|
3
5JJ-14902-40-00
Carburetor Assy 2
5JJF |
5JJ-14902-40-00 |
— | ||
|
4
|
4
5JJ-14903-20-00 Carburetor Assy 35JJG |
5JJ-14903-20-00 |
US $890.68 |
||
|
4
|
4
5JJ-14903-40-00 Carburetor Assy 35JJF |
5JJ-14903-40-00 |
US $890.68 |
||
|
5
|
5
5JJ-14904-20-00 Carburetor Assy 45JJG |
5JJ-14904-20-00 |
US $890.68 |
||
|
5
|
5
5JJ-14904-40-00 Carburetor Assy 45JJF |
5JJ-14904-40-00 |
US $890.68 |
||
|
6
|
6
4KM-14216-00-00 Screw |
4KM-14216-00-00 |
from US $3.54 |
||
|
7
|
7
985-07050-12-00
Screw, Pan Head
|
985-07050-12-00 |
— | ||
| replacement | |||||
|
7
|
7
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
8
|
8
4KG-14995-00-00 Bracket |
4KG-14995-00-00 |
US $23.69 |
||
|
9
|
9
98707-04008-00 Screw, Flat Head |
98707-04008-00 |
from US $2.13 |
||
|
10
|
10
4SV-14968-00-00
Cap
|
4SV-14968-00-00 |
— | ||
|
11
|
11
4SV-14933-00-00 Spring, Diaphragm |
4SV-14933-00-00 |
from US $13.46 |
||
|
12
|
12
4SV-24411-00-00 Diaphragm |
4SV-24411-00-00 |
from US $53.61 |
||
|
13
|
13
4XV-1490J-30-00 Needle Set |
4XV-1490J-30-00 |
US $25.85 |
||
|
14
|
14
4SV-14105-00-00 Pilot Screw Set |
4SV-14105-00-00 |
from US $18.74 |
||
|
15
|
15
4SV-14216-00-00 Screw |
4SV-14216-00-00 |
US $4.57 |
||
|
16
|
16
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
16
|
16
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
17
|
17
3G2-14231-26-00
Jet, Main (#130)
|
3G2-14231-26-00 |
— | ||
| replacement | |||||
|
17
|
17
3G2-14231-26-A0 Jet, Main (#130) |
3G2-14231-26-A0 |
from US $12.28 |
||
|
18
|
18
8CC-14232-24-00
Jet, Air (120)
120 |
8CC-14232-24-00 |
— | ||
|
19
|
19
4KM-14142-15-00 Jet, Pilot (#15) |
4KM-14142-15-00 |
from US $6.06 |
||
|
20
|
20
4KM-14107-15-00 Needle Valve Set |
4KM-14107-15-00 |
from US $38.38 |
||
|
21
|
21
620-14186-00-00 Pin, Float |
620-14186-00-00 |
from US $2.20 |
||
|
22
|
22
4SV-14985-00-00 Float |
4SV-14985-00-00 |
from US $30.30 |
||
|
23
|
23
4SV-1410A-00-00 Starter Set |
4SV-1410A-00-00 |
from US $34.85 |
||
|
24
|
24
4SV-14112-00-00 Valve, Throttle 1 |
4SV-14112-00-00 |
from US $91.74 |
||
|
25
|
25
4KP-14191-00-00 Plug, Drain |
4KP-14191-00-00 |
from US $9.78 |
||
|
26
|
26
4XV-14562-00-00 O-Ring |
4XV-14562-00-00 |
from US $11.46 |
||
|
27
|
27
4XV-14275-00-00
Spring
|
4XV-14275-00-00 |
— | ||
|
28
|
28
1FN-14565-00-00 Screw |
1FN-14565-00-00 |
from US $1.36 |
||
|
29
|
29
3JE-14197-00-00 Pipe |
3JE-14197-00-00 |
US $12.05 |
||
|
30
|
30
28V-14952-00-00 Washer |
28V-14952-00-00 |
US $1.62 |
||
|
31
|
31
4SV-14935-00-00 Spring |
4SV-14935-00-00 |
from US $6.76 |
||
|
32
|
32
4NK-14327-00-00 Packing |
4NK-14327-00-00 |
from US $2.27 |
||
|
33
|
33
4XV-24453-00-00 Screw |
4XV-24453-00-00 |
from US $2.55 |
||
|
34
|
34
4KM-24453-00-00 Screw |
4KM-24453-00-00 |
from US $4.68 |
||
|
35
|
35
4SV-85885-00-00
Throttle Position Sensor Assy
|
4SV-85885-00-00 |
— | ||
| replacement | |||||
|
35
|
35
4HD-85885-00-00 Throttle Sensor Assy |
4HD-85885-00-00 |
from US $321.91 |
||
|
36
|
36
4SV-14987-00-00
Hose
|
4SV-14987-00-00 |
— | ||
|
37
|
37
4XV-90445-00-00 Hose |
4XV-90445-00-00 |
from US $17.85 |
||
|
38
|
38
4XV-14149-30-00
Pipe
|
4XV-14149-30-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
4XV-14149-60-00 Pipe |
4XV-14149-60-00 |
US $9.99 |
||
|
40
|
40
4YW-14987-00-00 Hose |
4YW-14987-00-00 |
from US $14.31 |
||
|
41
|
41
5JJ-14987-00-00 Hose |
5JJ-14987-00-00 |
from US $41.45 |
||
|
42
|
42
4XV-14149-40-00
Pipe
|
4XV-14149-40-00 |
— | ||
|
43
|
43
4XV-14103-00-00 Throttle Screw Set |
4XV-14103-00-00 |
from US $68.13 |
||
|
44
|
44
4XV-14149-90-00
Pipe
|
4XV-14149-90-00 |
— | ||
|
45
|
45
3EN-1490K-00-00
Stop Screw Set
|
3EN-1490K-00-00 |
— | ||
| replacement | |||||
|
45
|
45
4KM-1490K-00-00 Stop Screw Set |
4KM-1490K-00-00 |
from US $11.05 |
||
|
46
|
46
4XV-14149-70-00
Pipe
|
4XV-14149-70-00 |
— | ||
|
47
|
47
36Y-14147-00-00 O-Ring |
36Y-14147-00-00 |
from US $7.51 |
||
|
48
|
48
3LN-14348-00-00 Pipe 1 |
3LN-14348-00-00 |
US $5.53 |
||
|
49
|
49
3LN-1416A-00-00 O-Ring |
3LN-1416A-00-00 |
from US $9.88 |
||
|
50
|
50
3LN-24515-00-00 Net, Filter 2 |
3LN-24515-00-00 |
from US $14.87 |
||
|
51
|
51
90413-10016-00 Way 3 |
90413-10016-00 |
US $28.66 |
||
|
52
|
52
90467-11090-00 Clip |
90467-11090-00 |
from US $1.28 |
||
| replacement | |||||
|
52
|
52
90467-10135-00 Clip |
90467-10135-00 |
from US $1.28 |
||
