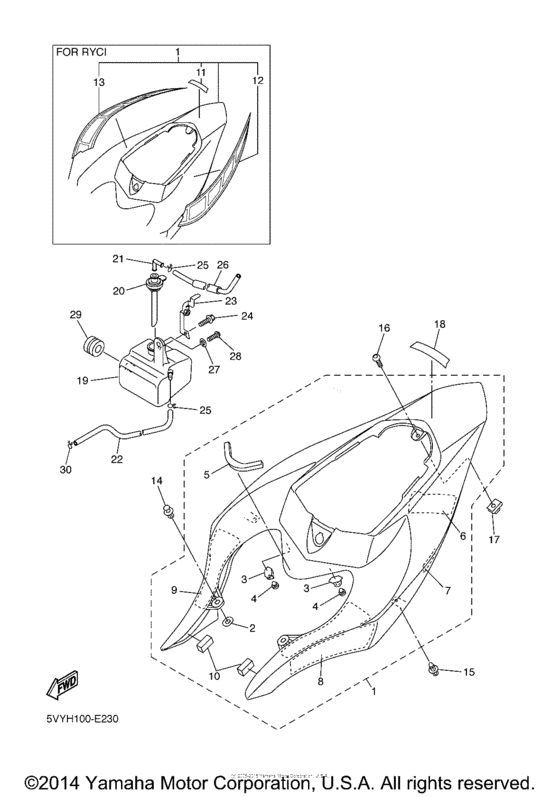

Side cover Diagram Yamaha YZF-R1 R1
- Year
- 2006
- Model code
- 5VYH
- Sales region
- USA
- Базовая модель
- YZFR1V
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VY-21710-01-P4 Side Cover Assy 1Use for Color Black Metallic X SMX / 0903 |
5VY-21710-01-P4 |
from US $422.84 |
||
| replacement | |||||
|
1
|
1
5VY-21710-02-P4 SIDE COVER ASSYUse for Color Black Metallic X SMX / 0903 |
5VY-21710-02-P4 |
from US $354.40 |
||
|
1
|
1
5VY-21710-01-P1 Side Cover Assy 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
5VY-21710-01-P1 |
from US $317.73 |
||
| replacement | |||||
|
1
|
1
5VY-21710-02-P1 Side Cover Assy 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
5VY-21710-02-P1 |
US $382.25 |
||
|
1
|
1
5VY-Y2171-61-P5 Cover, Side 1Use for Color REDDISH YELLOW COCKTAIL 1 RYC1 / 0251 |
5VY-Y2171-61-P5 |
from US $636.24 |
||
| replacement | |||||
|
1
|
1
5VY-W2171-61-P5
Cover, Side 1
Use for Color REDDISH YELLOW COCKTAIL 1 RYC1 / 0251 |
5VY-W2171-61-P5 |
— | ||
|
2
|
2
5PW-2174X-00-00 Damper |
5PW-2174X-00-00 |
from US $1.70 |
||
|
3
|
3
5VY-2172E-00-00 Stay, Side Cover 1 |
5VY-2172E-00-00 |
from US $7.18 |
||
|
4
|
4
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
4
|
4
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
5
|
5
5VY-21747-00-00 Damper |
5VY-21747-00-00 |
US $4.36 |
||
|
6
|
6
1JK-21735-00-00 Seal 2 |
1JK-21735-00-00 |
from US $6.52 |
||
|
7
|
7
5PW-21732-00-00 Seal 1 |
5PW-21732-00-00 |
from US $3.26 |
||
|
8
|
8
5VY-2172P-00-00 Seat, 1 |
5VY-2172P-00-00 |
from US $15.42 |
||
|
9
|
9
5VY-2173P-00-00 Seat, 2 |
5VY-2173P-00-00 |
from US $15.42 |
||
|
10
|
10
1UJ-21717-00-00 Damper 1 |
1UJ-21717-00-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
83R-14425-00-00 Damper 1 |
83R-14425-00-00 |
from US $1.56 |
||
|
11
|
11
99244-00080-00 Emblem, Yamahafor Color REDDISH YELLOW COCKTAIL 1 RYC1 / 0251 |
99244-00080-00 |
from US $8.64 |
||
|
12
|
12
5VY-2173E-00-00 Graphic 1Use for Color REDDISH YELLOW COCKTAIL 1 RYC1 / 0251 |
5VY-2173E-00-00 |
from US $60.08 |
||
|
13
|
13
5VY-2173F-00-00 Graphic 2Use for Color REDDISH YELLOW COCKTAIL 1 RYC1 / 0251 |
5VY-2173F-00-00 |
from US $61.25 |
||
|
14
|
14
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.70 |
||
|
15
|
15
90269-06011-00 Rivet |
90269-06011-00 |
from US $3.54 |
||
|
16
|
16
90111-05007-00 Bolt, Hex. Socket Button |
90111-05007-00 |
from US $1.98 |
||
|
17
|
17
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
17
|
17
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
18
|
18
99241-00080-00 Emblem, Yamahafor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
99241-00080-00 |
from US $8.08 |
||
|
18
|
18
992-47000-80-00 Emblem, Yamahafor Color Black Metallic X SMX / 0903 |
992-47000-80-00 |
from US $7.79 |
||
|
19
|
19
5VY-21871-00-00 Tank, Recovery |
5VY-21871-00-00 |
from US $35.56 |
||
|
20
|
20
5VY-21875-00-00 Cap |
5VY-21875-00-00 |
from US $8.93 |
||
|
21
|
21
26H-21828-00-00 Elbow |
26H-21828-00-00 |
from US $4.04 |
||
|
22
|
22
90445-08022-00 Hose |
90445-08022-00 |
from US $4.82 |
||
|
23
|
23
5VY-21843-00-00 Stay, 4 |
5VY-21843-00-00 |
from US $10.87 |
||
|
24
|
24
90105-06052-00 Bolt, Flange |
90105-06052-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
95022-06010-00 Bolt, Flange |
95022-06010-00 |
from US $1.36 |
||
|
25
|
25
90467-08075-00 Clip |
90467-08075-00 |
from US $1.70 |
||
| replacement | |||||
|
25
|
25
90467-08021-00 Clip |
90467-08021-00 |
from US $1.70 |
||
|
26
|
26
90445-087K6-00 Hose (L700) |
90445-087K6-00 |
from US $10.48 |
||
|
27
|
27
90387-062M9-00 Collar |
90387-062M9-00 |
from US $1.70 |
||
|
28
|
28
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.42 |
||
|
29
|
29
90480-20001-00 Grommet |
90480-20001-00 |
from US $2.41 |
||
|
30
|
30
90467-08075-00 Clip |
90467-08075-00 |
from US $1.70 |
||
| replacement | |||||
|
30
|
30
90467-08021-00 Clip |
90467-08021-00 |
from US $1.70 |
||
