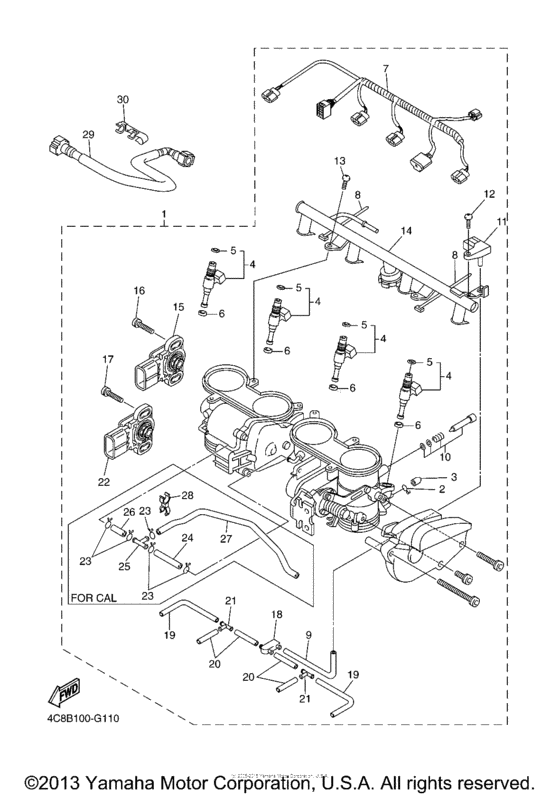

Intake (2) Diagram Yamaha YZF-R1 R1
- Year
- 2008
- Model code
- 4C8B
- Sales region
- USA
- Базовая модель
- YZFR1XB
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4C8-13750-20-00 Throttle Body Assy4C8B 49 |
4C8-13750-20-00 |
from US $2,182.43 |
||
|
1
|
1
4C8-13750-30-00 Throttle Body AssyXC 4C8C CA |
4C8-13750-30-00 |
US $2,097.74 |
||
|
2
|
2
8A7-14139-00-00 Clip, Pipe |
8A7-14139-00-00 |
from US $3.40 |
||
|
3
|
3
895-14169-00-00 Cap |
895-14169-00-00 |
from US $4.11 |
||
|
4
|
4
4C8-13761-00-00 Injector |
4C8-13761-00-00 |
from US $167.17 |
||
|
5
|
5
5PS-14147-00-00 O-Ring |
5PS-14147-00-00 |
from US $10.06 |
||
|
6
|
6
8FP-13556-00-00 Rubber, Injector |
8FP-13556-00-00 |
from US $4.53 |
||
|
7
|
7
4C8-82386-00-00 Extension, Wire Harness |
4C8-82386-00-00 |
from US $135.40 |
||
|
8
|
8
4KM-14137-00-00 Clip |
4KM-14137-00-00 |
from US $7.69 |
||
|
9
|
9
5JW-14987-00-00 Hose |
5JW-14987-00-00 |
from US $9.07 |
||
|
10
|
10
2C0-14105-00-00 Pilot Screw Set |
2C0-14105-00-00 |
from US $18.99 |
||
|
11
|
11
2C0-82380-00-00
Sensor, Pressure
|
2C0-82380-00-00 |
— | ||
| replacement | |||||
|
11
|
11
1WS-82380-00-00 Sensor, Pressure |
1WS-82380-00-00 |
from US $114.40 |
||
|
12
|
12
2C0-14216-00-00 Screw |
2C0-14216-00-00 |
from US $2.98 |
||
|
13
|
13
985-02060-12-00
Screw, Pan Head
|
985-02060-12-00 |
— | ||
| replacement | |||||
|
13
|
13
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.36 |
||
|
14
|
14
4C8-13930-00-00 Pipe Inlet Assembly |
4C8-13930-00-00 |
from US $290.70 |
||
|
15
|
15
13S-85885-00-00
Throttle Sensor Assy
|
13S-85885-00-00 |
— | ||
| replacement | |||||
|
15
|
15
13S-85885-01-00 Throttle Sensor Assy |
13S-85885-01-00 |
from US $127.94 |
||
|
16
|
16
8CC-14216-10-00 Screw |
8CC-14216-10-00 |
from US $6.09 |
||
|
17
|
17
5FL-14216-00-00 Screw |
5FL-14216-00-00 |
from US $4.11 |
||
|
18
|
18
3XV-14251-00-00 Nipple |
3XV-14251-00-00 |
from US $22.67 |
||
|
19
|
19
5FL-14349-10-00 Pipe |
5FL-14349-10-00 |
from US $4.96 |
||
|
20
|
20
5JW-14396-00-00 Pipe |
5JW-14396-00-00 |
from US $4.68 |
||
|
21
|
21
68V-24376-00-00 Pipe, Joint 1 |
68V-24376-00-00 |
from US $9.07 |
||
|
22
|
22
13S-85884-00-00 Accelerator Sensor Assy |
13S-85884-00-00 |
from US $123.10 |
||
|
23
|
23
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
23
|
23
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
24
|
24
4C8-14465-10-00 Pipe |
4C8-14465-10-00 |
US $28.49 |
||
|
25
|
25
90413-08012-00 Way 3 |
90413-08012-00 |
from US $4.96 |
||
|
26
|
26
4C8-14466-10-00 Pipe |
4C8-14466-10-00 |
US $22.52 |
||
|
27
|
27
4C8-1443J-00-00 Pipe |
4C8-1443J-00-00 |
US $17.99 |
||
|
28
|
28
90464-09012-00 Clamp |
90464-09012-00 |
from US $3.40 |
||
|
29
|
29
4C8-13971-00-00 Pipe, Fuel 1 |
4C8-13971-00-00 |
from US $65.35 |
||
|
30
|
30
90464-16005-00 Clamp |
90464-16005-00 |
from US $7.65 |
||
