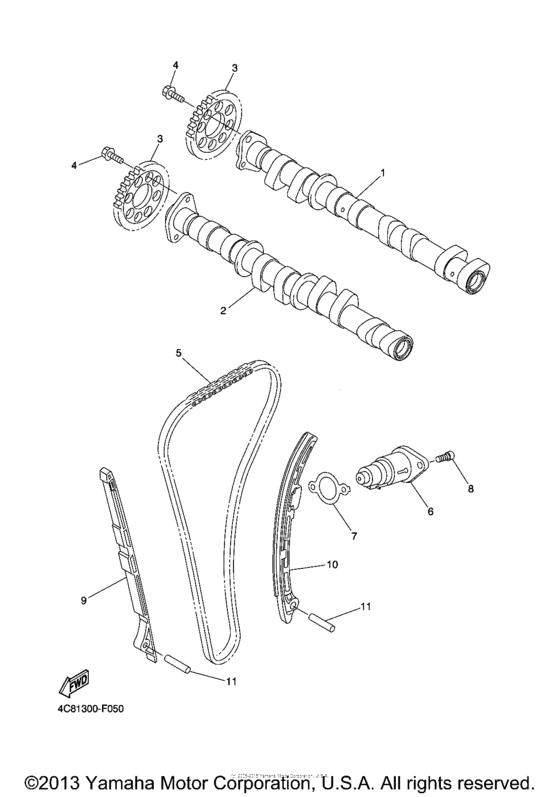

Camshaft & chain Diagram Yamaha YZF-R1 R1
- Year
- 2008
- Model code
- 4C8B
- Sales region
- USA
- Базовая модель
- YZFR1XL
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4C8-12170-00-00
Camshaft Assy 1
|
4C8-12170-00-00 |
— | ||
|
2
|
2
4C8-12180-00-00
Camshaft Assy 2
|
4C8-12180-00-00 |
— | ||
|
3
|
3
4C8-12176-00-00 Sprocket, Cam Chain |
4C8-12176-00-00 |
from US $57.47 |
||
| replacement | |||||
|
3
|
3
14B-12176-00-00 Sprocket, Cam Chain |
14B-12176-00-00 |
from US $57.47 |
||
|
4
|
4
90105-07006-00 Bolt, Flange |
90105-07006-00 |
from US $1.84 |
||
|
5
|
5
945-91601-24-00 Chain |
945-91601-24-00 |
from US $48.22 |
||
|
6
|
6
4C8-12210-00-00 Tensioner Assy, Cam Chain |
4C8-12210-00-00 |
US $186.52 |
||
| replacement | |||||
|
6
|
6
4C8-12210-01-00 TENSIONER ASSY CAM CHAIN |
4C8-12210-01-00 |
from US $219.44 |
||
|
7
|
7
2D1-12213-00-00 Gasket, Tensioner Case |
2D1-12213-00-00 |
from US $3.40 |
||
|
8
|
8
90110-06106-00 Bolt, Hexagon Socket Head |
90110-06106-00 |
from US $1.70 |
||
|
9
|
9
4C8-12251-00-00 Damper, Chain 1 |
4C8-12251-00-00 |
from US $18.84 |
||
|
10
|
10
4C8-12252-00-00 Damper, Chain 2 |
4C8-12252-00-00 |
from US $63.14 |
||
|
11
|
11
93607-44002-00 Pin, Dowel |
93607-44002-00 |
from US $3.12 |
||
