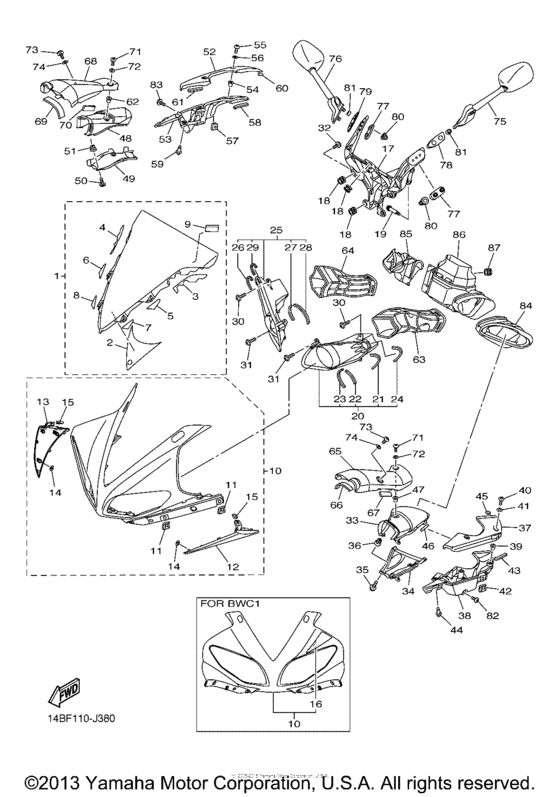

Cowling (1) Diagram Yamaha YZF-R1 R1
- Year
- 2010
- Model code
- 14BG
- Sales region
- United States (California)
- Базовая модель
- YZFR1ZCL
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14B-Y283P-10-00 Screen |
14B-Y283P-10-00 |
from US $245.92 |
||
|
2
|
2
14B-2832P-00-00 Graphic 1818 |
14B-2832P-00-00 |
US $76.89 |
||
|
3
|
3
14B-28428-00-00 Seal 1 |
14B-28428-00-00 |
from US $8.36 |
||
|
4
|
4
14B-28429-00-00 Seal 2 |
14B-28429-00-00 |
from US $7.42 |
||
|
5
|
5
14B-2844E-00-00 Seal 3 |
14B-2844E-00-00 |
from US $4.39 |
||
|
6
|
6
14B-2846F-00-00 Seal 4 |
14B-2846F-00-00 |
from US $4.39 |
||
|
7
|
7
14B-2847F-00-00 Seal 5 |
14B-2847F-00-00 |
from US $3.40 |
||
|
8
|
8
14B-2848F-00-00 Seal 6 |
14B-2848F-00-00 |
from US $3.40 |
||
|
9
|
9
4B5-2815K-00-00 Label, Notice Windshield 1 |
4B5-2815K-00-00 |
from US $6.52 |
||
|
10
|
10
14B-Y283G-00-P3 Body, Front Upper 1Use for Color Black Metallic X SMX / 0903 |
14B-Y283G-00-P3 |
from US $512.86 |
||
|
10
|
10
14B-Y283G-70-P1 Body, Front Upper 1Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-Y283G-70-P1 |
from US $588.72 |
||
|
10
|
10
14B-Y283G-00-P2 Body, Front Upper 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-Y283G-00-P2 |
from US $512.86 |
||
|
11
|
11
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
11
|
11
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
12
|
12
14B-28219-00-P0 Cover 1Use for Color Black Metallic X SMX / 0903 |
14B-28219-00-P0 |
from US $99.61 |
||
|
12
|
12
14B-28219-00-P3 Cover 1Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-28219-00-P3 |
from US $99.61 |
||
|
13
|
13
14B-28229-00-P0 Cover 2Use for Color Black Metallic X SMX / 0903 |
14B-28229-00-P0 |
from US $99.61 |
||
|
13
|
13
14B-28229-00-P3 Cover 2Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-28229-00-P3 |
from US $99.61 |
||
|
14
|
14
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.36 |
||
|
15
|
15
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
15
|
15
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
16
|
16
14B-2832L-70-00 Graphic, 1313 Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-2832L-70-00 |
from US $28.53 |
||
|
17
|
17
14B-28356-00-00 Stay 1 |
14B-28356-00-00 |
from US $265.27 |
||
|
18
|
18
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.84 |
||
|
19
|
19
90105-08052-00 Bolt, Flange |
90105-08052-00 |
from US $2.13 |
||
|
20
|
20
14B-2838B-00-00 Grill Assy |
14B-2838B-00-00 |
from US $29.89 |
||
|
21
|
21
14B-28372-00-00 Damper |
14B-28372-00-00 |
from US $1.36 |
||
|
22
|
22
J44-78248-00-00 Seal 4 |
J44-78248-00-00 |
from US $1.42 |
||
|
23
|
23
905-20030-01-00 Damper, Plate |
905-20030-01-00 |
from US $1.26 |
||
|
24
|
24
1TX-28267-00-00 Damper 5 |
1TX-28267-00-00 |
from US $3.68 |
||
|
25
|
25
14B-2838B-10-00 Grill Assy |
14B-2838B-10-00 |
from US $29.89 |
||
|
26
|
26
14B-28372-00-00 Damper |
14B-28372-00-00 |
from US $1.36 |
||
|
27
|
27
J44-78248-00-00 Seal 4 |
J44-78248-00-00 |
from US $1.42 |
||
|
28
|
28
905-20030-01-00 Damper, Plate |
905-20030-01-00 |
from US $1.26 |
||
|
29
|
29
1TX-28267-00-00 Damper 5 |
1TX-28267-00-00 |
from US $3.68 |
||
|
30
|
30
90160-05007-00 Screw, Round Tapping |
90160-05007-00 |
from US $2.13 |
||
|
31
|
31
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
32
|
32
90160-05006-00 Screw, Round Tapping |
90160-05006-00 |
from US $1.36 |
||
|
33
|
33
14B-2838N-00-P5 Duct 1Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-2838N-00-P5 |
from US $72.53 |
||
|
33
|
33
14B-2838N-00-P6 Duct 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-2838N-00-P6 |
from US $72.53 |
||
|
34
|
34
14B-2838T-00-00 Duct 3 |
14B-2838T-00-00 |
from US $7.08 |
||
|
35
|
35
977-02500-12-00
Screw, Truss Head Tapping
|
977-02500-12-00 |
— | ||
| replacement | |||||
|
35
|
35
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
36
|
36
90480-08005-00 Grommet |
90480-08005-00 |
from US $1.36 |
||
|
37
|
37
14B-2839K-00-P5 Lid 1Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-2839K-00-P5 |
from US $62.17 |
||
|
37
|
37
14B-2839K-00-P6 Lid 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-2839K-00-P6 |
from US $62.17 |
||
|
38
|
38
14B-2838V-00-00 Box 3 |
14B-2838V-00-00 |
from US $11.76 |
||
|
39
|
39
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
40
|
40
901-11050-34-00 Bolt, Hex. Socket Button |
901-11050-34-00 |
from US $1.56 |
||
|
41
|
41
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.70 |
||
|
42
|
42
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
42
|
42
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
43
|
43
J44-78248-00-00 Seal 4 |
J44-78248-00-00 |
from US $1.42 |
||
|
44
|
44
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
45
|
45
905-20010-01-00 Damper, Plate |
905-20010-01-00 |
from US $1.56 |
||
|
46
|
46
905-20030-05-00 Damper, Plate |
905-20030-05-00 |
from US $1.98 |
||
|
47
|
47
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
48
|
48
14B-2838R-00-P5 Duct 2Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-2838R-00-P5 |
from US $72.53 |
||
|
48
|
48
14B-2838R-00-P6 Duct 2Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-2838R-00-P6 |
from US $72.53 |
||
|
49
|
49
14B-2838U-00-00 Duct 4 |
14B-2838U-00-00 |
from US $7.08 |
||
|
50
|
50
977-02500-12-00
Screw, Truss Head Tapping
|
977-02500-12-00 |
— | ||
| replacement | |||||
|
50
|
50
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
51
|
51
90480-08005-00 Grommet |
90480-08005-00 |
from US $1.36 |
||
|
52
|
52
14B-2839L-00-P5 Lid 2Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-2839L-00-P5 |
from US $62.17 |
||
|
52
|
52
14B-2839L-00-P6 Lid 2Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-2839L-00-P6 |
from US $62.17 |
||
|
53
|
53
14B-2838W-00-00 Box 4 |
14B-2838W-00-00 |
from US $11.76 |
||
|
54
|
54
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
55
|
55
901-11050-34-00 Bolt, Hex. Socket Button |
901-11050-34-00 |
from US $1.56 |
||
|
56
|
56
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.70 |
||
|
57
|
57
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
57
|
57
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
58
|
58
J44-78248-00-00 Seal 4 |
J44-78248-00-00 |
from US $1.42 |
||
|
59
|
59
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
60
|
60
905-20010-01-00 Damper, Plate |
905-20010-01-00 |
from US $1.56 |
||
|
61
|
61
905-20030-05-00 Damper, Plate |
905-20030-05-00 |
from US $1.98 |
||
|
62
|
62
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
63
|
63
14B-2838J-00-00 Duct 5 |
14B-2838J-00-00 |
from US $31.07 |
||
| replacement | |||||
|
63
|
63
14B-2838J-01-00 Duct 5 |
14B-2838J-01-00 |
US $38.32 |
||
|
64
|
64
14B-2838P-00-00 Duct 6 |
14B-2838P-00-00 |
from US $32.67 |
||
|
65
|
65
14B-2837L-00-P5 Panel, Console 1Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-2837L-00-P5 |
from US $88.42 |
||
|
65
|
65
14B-2837L-00-P6 Panel, Console 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-2837L-00-P6 |
from US $88.42 |
||
|
66
|
66
4C8-2112D-00-00 Damper, 3 |
4C8-2112D-00-00 |
from US $1.70 |
||
|
67
|
67
2S3-2111D-00-00 Seal 1 |
2S3-2111D-00-00 |
from US $7.65 |
||
|
68
|
68
14B-2837M-00-P5 Panel, Console 2Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-2837M-00-P5 |
from US $88.42 |
||
|
68
|
68
14B-2837M-00-P6 Panel, Console 2Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-2837M-00-P6 |
from US $88.42 |
||
|
69
|
69
4C8-2112D-00-00 Damper, 3 |
4C8-2112D-00-00 |
from US $1.70 |
||
|
70
|
70
2S3-2111D-00-00 Seal 1 |
2S3-2111D-00-00 |
from US $7.65 |
||
|
71
|
71
901-11050-34-00 Bolt, Hex. Socket Button |
901-11050-34-00 |
from US $1.56 |
||
|
72
|
72
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.70 |
||
|
73
|
73
901-11050-34-00 Bolt, Hex. Socket Button |
901-11050-34-00 |
from US $1.56 |
||
|
74
|
74
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.70 |
||
|
75
|
75
14B-26280-00-00 Rear View Mirror Assy (Left) |
14B-26280-00-00 |
from US $100.86 |
||
|
76
|
76
14B-26290-00-00 Rear View Mirror Assy (Right) |
14B-26290-00-00 |
from US $100.86 |
||
|
77
|
77
4C8-26298-00-00 Plate, Mirror Fitting 1 |
4C8-26298-00-00 |
from US $2.69 |
||
|
78
|
78
14B-2628N-00-00 Base, Mirror (Left) |
14B-2628N-00-00 |
from US $3.40 |
||
|
79
|
79
14B-2628R-00-00 Base, Mirror (Right) |
14B-2628R-00-00 |
from US $3.40 |
||
|
80
|
80
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.56 |
||
|
81
|
81
90387-064T3-00 Collar |
90387-064T3-00 |
from US $1.36 |
||
|
82
|
82
901-11050-34-00 Bolt, Hex. Socket Button |
901-11050-34-00 |
from US $1.56 |
||
|
83
|
83
901-11050-34-00 Bolt, Hex. Socket Button |
901-11050-34-00 |
from US $1.56 |
||
|
84
|
84
14B-2846C-00-00 Box, Side 1 |
14B-2846C-00-00 |
from US $40.62 |
||
|
85
|
85
14B-2846D-00-00 Box, Side 2 |
14B-2846D-00-00 |
from US $40.62 |
||
|
86
|
86
14B-2845D-10-00 Box, Front |
14B-2845D-10-00 |
from US $70.60 |
||
|
87
|
87
90480-13567-00 Grommet |
90480-13567-00 |
from US $1.84 |
||
