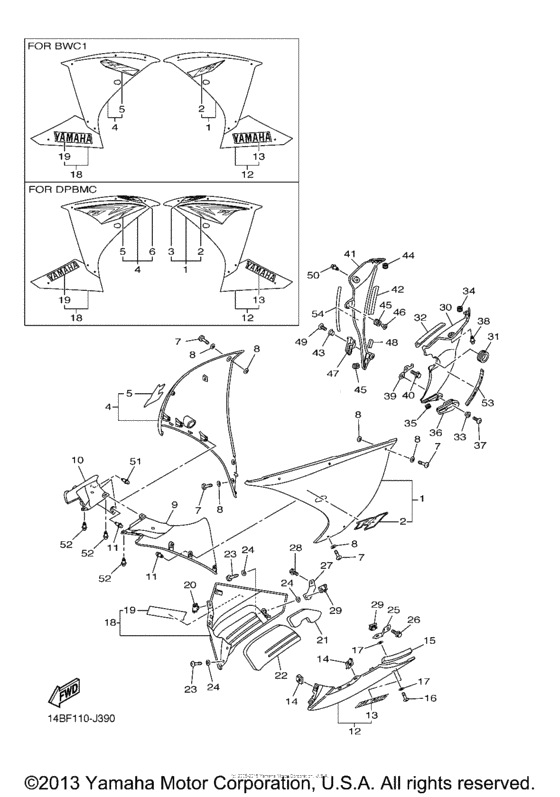

Cowling (2) Diagram Yamaha YZF-R1 R1
- Year
- 2010
- Model code
- 14BG
- Sales region
- United States (California)
- Базовая модель
- YZFR1ZCW
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14B-W283U-80-P3 Panel Assy 1Use for Color Black Metallic X SMX / 0903 |
14B-W283U-80-P3 |
from US $354.64 |
||
| replacement | |||||
|
1
|
1
14B-W283U-E0-P3 PANEL ASSY 1Use for Color Black Metallic X SMX / 0903 |
14B-W283U-E0-P3 |
from US $282.55 |
||
|
1
|
1
14B-W283U-90-P4 Panel Assy 1Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-W283U-90-P4 |
from US $326.06 |
||
| replacement | |||||
|
1
|
1
14B-W283U-F0-P1 Panel Assy 1Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-W283U-F0-P1 |
from US $255.29 |
||
|
1
|
1
14B-W283U-A0-P2 Panel Assy 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-W283U-A0-P2 |
from US $473.26 |
||
| replacement | |||||
|
1
|
1
14B-W283U-G0-P2 PANEL ASSY 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-W283U-G0-P2 |
from US $424.10 |
||
|
2
|
2
14B-2839B-00-00 Emblem 3D3D Use for Color Black Metallic X SMX / 0903 |
14B-2839B-00-00 |
from US $79.69 |
||
|
2
|
2
14B-28391-70-00 Graphic, 1Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-28391-70-00 |
from US $20.56 |
||
|
2
|
2
14B-28393-A0-00 Graphic, 3Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-28393-A0-00 |
US $125.50 |
||
|
3
|
3
14B-28391-A0-00 Graphic, 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-28391-A0-00 |
from US $39.47 |
||
|
4
|
4
14B-W283V-80-P3 Panel Assy 2Use for Color Black Metallic X SMX / 0903 |
14B-W283V-80-P3 |
from US $354.64 |
||
| replacement | |||||
|
4
|
4
14B-W283V-E0-P3 Panel Assy 2Use for Color Black Metallic X SMX / 0903 |
14B-W283V-E0-P3 |
from US $282.55 |
||
|
4
|
4
14B-W283V-A0-P2 Panel Assy 2Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-W283V-A0-P2 |
US $473.26 |
||
| replacement | |||||
|
4
|
4
14B-W283V-G0-P2 PANEL ASSY 2Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-W283V-G0-P2 |
US $500.27 |
||
|
4
|
4
14B-W283V-90-P4 Panel Assy 2Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-W283V-90-P4 |
from US $305.33 |
||
| replacement | |||||
|
4
|
4
14B-W283V-F0-P1 Panel Assy 2Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-W283V-F0-P1 |
from US $239.52 |
||
|
5
|
5
14B-2839B-00-00 Emblem 3D3D Use for Color Black Metallic X SMX / 0903 |
14B-2839B-00-00 |
from US $79.69 |
||
|
5
|
5
14B-28392-70-00 Graphic, 2Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-28392-70-00 |
from US $29.84 |
||
|
5
|
5
14B-28394-A0-00 Graphic, 4Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-28394-A0-00 |
US $125.50 |
||
|
6
|
6
14B-28392-A0-00 Graphic, 2Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-28392-A0-00 |
from US $39.47 |
||
|
7
|
7
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
8
|
8
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $1.36 |
||
|
9
|
9
14B-2836K-00-00 Panel, Inner 1 |
14B-2836K-00-00 |
from US $53.88 |
||
|
10
|
10
14B-2836L-00-00 Panel, Inner 2 |
14B-2836L-00-00 |
from US $53.88 |
||
|
11
|
11
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
12
|
12
14B-W2838-10-P2 Under Cover Comp. 1for Color MAT BLACK 2 MBL2 / 0582 |
14B-W2838-10-P2 |
from US $198.95 |
||
| replacement | |||||
|
12
|
12
14B-W2838-50-P1 UNDER COVER COMP. 1for Color MAT BLACK 2 MBL2 / 0582 |
14B-W2838-50-P1 |
from US $154.90 |
||
|
12
|
12
14B-W2838-00-P1 Under Cover Comp. 1for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-W2838-00-P1 |
from US $198.95 |
||
| replacement | |||||
|
12
|
12
14B-W2838-40-P2 Under Cover Comp. 1for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-W2838-40-P2 |
from US $154.90 |
||
|
12
|
12
14B-W2838-10-P1 Under Cover Comp. 1for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-W2838-10-P1 |
US $300.42 |
||
| replacement | |||||
|
12
|
12
14B-W2838-S0-P2 UNDER COVER COMP. 1for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-W2838-S0-P2 |
US $205.20 |
||
|
13
|
13
14B-2153B-90-00 Emblem, Yamahafor Color Black Metallic X SMX / 0903 |
14B-2153B-90-00 |
from US $21.82 |
||
|
13
|
13
14B-2153E-A0-00 Emblem, Yamahafor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-2153E-A0-00 |
US $22.72 |
||
|
13
|
13
14B-2153E-10-00 Emblem, Yamahafor Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-2153E-10-00 |
from US $25.60 |
||
|
14
|
14
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
14
|
14
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
15
|
15
14B-2834E-00-00 Damper 3 |
14B-2834E-00-00 |
from US $11.33 |
||
|
16
|
16
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
17
|
17
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $1.36 |
||
|
18
|
18
14B-W2839-10-P2 Under Cover Comp. 2for Color MAT BLACK 2 MBL2 / 0582 |
14B-W2839-10-P2 |
from US $154.90 |
||
| replacement | |||||
|
18
|
18
14B-W2839-50-P1 UNDER COVER COMP. 2for Color MAT BLACK 2 MBL2 / 0582 |
14B-W2839-50-P1 |
from US $154.90 |
||
|
18
|
18
14B-W2839-00-P1 Under Cover Comp. 2for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-W2839-00-P1 |
from US $198.95 |
||
| replacement | |||||
|
18
|
18
14B-W2839-40-P2 Under Cover Comp. 2for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-W2839-40-P2 |
from US $154.90 |
||
|
18
|
18
14B-W2839-10-P1 Under Cover Comp. 2for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-W2839-10-P1 |
US $205.20 |
||
|
19
|
19
14B-2153B-90-00 Emblem, Yamahafor Color Black Metallic X SMX / 0903 |
14B-2153B-90-00 |
from US $21.82 |
||
|
19
|
19
14B-2153E-10-00 Emblem, Yamahafor Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-2153E-10-00 |
from US $25.60 |
||
|
19
|
19
14B-2153E-A0-00 Emblem, Yamahafor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-2153E-A0-00 |
US $22.72 |
||
|
20
|
20
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
20
|
20
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
21
|
21
14B-28371-00-00 Damper |
14B-28371-00-00 |
from US $10.48 |
||
|
22
|
22
14B-2848M-00-00 Seat 4 |
14B-2848M-00-00 |
from US $47.94 |
||
|
23
|
23
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
24
|
24
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $1.36 |
||
|
25
|
25
14B-2836A-00-00 Bracket 1 |
14B-2836A-00-00 |
from US $9.63 |
||
|
26
|
26
95802-06016-00 Bolt, Flange |
95802-06016-00 |
US $1.07 |
||
| replacement | |||||
|
26
|
26
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
27
|
27
14B-2836E-00-00 Bracket 2 |
14B-2836E-00-00 |
from US $9.78 |
||
|
28
|
28
90105-06174-00 Bolt, Flange |
90105-06174-00 |
from US $1.07 |
||
| replacement | |||||
|
28
|
28
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
29
|
29
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
29
|
29
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
30
|
30
14B-2836M-00-P5 Panel, Inner 3Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-2836M-00-P5 |
from US $186.52 |
||
| replacement | |||||
|
30
|
30
14B-2836M-10-P0 Panel, Inner 3Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-2836M-10-P0 |
from US $186.52 |
||
|
30
|
30
14B-2836M-00-P6 Panel, Inner 3Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-2836M-00-P6 |
from US $186.52 |
||
| replacement | |||||
|
30
|
30
14B-2836M-10-P1 Panel, Inner 3Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-2836M-10-P1 |
from US $186.52 |
||
|
31
|
31
14B-2836T-00-00 Damper, Locating 1 |
14B-2836T-00-00 |
from US $3.26 |
||
|
32
|
32
905-20050-11-00 Damper, Plate |
905-20050-11-00 |
from US $3.83 |
||
|
33
|
33
90560-08251-00 Collar |
90560-08251-00 |
from US $2.69 |
||
| replacement | |||||
|
33
|
33
90387-08079-00 Collar |
90387-08079-00 |
from US $2.69 |
||
|
34
|
34
90480-08006-00 Grommet |
90480-08006-00 |
from US $1.70 |
||
|
35
|
35
904-80125-96-00 Grommet (rubber) |
904-80125-96-00 |
from US $1.84 |
||
|
36
|
36
14B-283C1-00-00 Stopper, Rubber 1 |
14B-283C1-00-00 |
from US $4.39 |
||
|
37
|
37
90111-06051-00 Bolt, Hex. Socket Button |
90111-06051-00 |
from US $1.70 |
||
|
38
|
38
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
39
|
39
14B-28321-00-00 Stay 1 |
14B-28321-00-00 |
from US $12.04 |
||
|
40
|
40
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
40
|
40
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
40
|
40
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
41
|
41
14B-2836N-00-P5
Panel, Inner 4
Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-2836N-00-P5 |
— | ||
| replacement | |||||
|
41
|
41
14B-2836N-10-P0 Panel, Inner 4Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-2836N-10-P0 |
from US $147.83 |
||
|
41
|
41
14B-2836N-00-P6 Panel, Inner 4Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-2836N-00-P6 |
from US $147.83 |
||
| replacement | |||||
|
41
|
41
14B-2836N-10-P1 Panel, Inner 4Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-2836N-10-P1 |
from US $147.83 |
||
|
42
|
42
3NU-21732-00-00 Seal 1 |
3NU-21732-00-00 |
from US $2.69 |
||
|
43
|
43
90560-08251-00 Collar |
90560-08251-00 |
from US $2.69 |
||
| replacement | |||||
|
43
|
43
90387-08079-00 Collar |
90387-08079-00 |
from US $2.69 |
||
|
44
|
44
90480-08006-00 Grommet |
90480-08006-00 |
from US $1.70 |
||
|
45
|
45
904-80125-96-00 Grommet (rubber) |
904-80125-96-00 |
from US $1.84 |
||
|
46
|
46
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
46
|
46
903-87061-59-00 Collar |
903-87061-59-00 |
from US $1.56 |
||
|
47
|
47
14B-283C2-00-00 Stopper, Rubber 2 |
14B-283C2-00-00 |
from US $4.39 |
||
|
48
|
48
4B5-2847F-00-00 Seal 5 |
4B5-2847F-00-00 |
from US $5.38 |
||
|
49
|
49
90111-06051-00 Bolt, Hex. Socket Button |
90111-06051-00 |
from US $1.70 |
||
|
50
|
50
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
51
|
51
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
52
|
52
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
53
|
53
14B-2834C-A0-00
Emblem 1, L
1, L Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-2834C-A0-00 |
— | ||
|
54
|
54
14B-2835C-A0-00 Emblem 2, R2, R Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-2835C-A0-00 |
US $14.40 |
||
