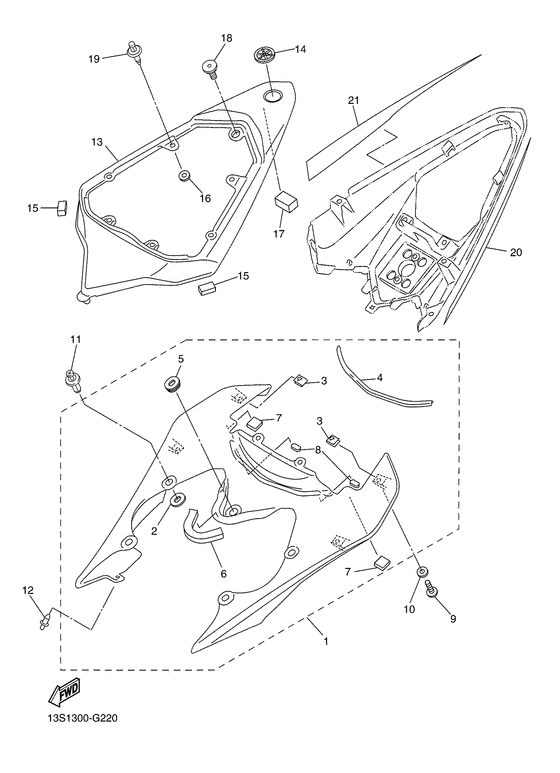

Side cover Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2008
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 13S1
- Sales region
- Europe (General) (010)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
13S-21710-00-P0 Side Cover Assy 1Ur for dpbmc |
13S-21710-00-P0 |
from US $190.66 |
||
|
01
|
01
13S-21710-00-P1 Side Cover Assy 1Ur for bwc1 |
13S-21710-00-P1 |
from US $190.66 |
||
|
01
|
01
13S-21710-00-P2
Side Cover Assy 1
Ur for dnmg |
13S-21710-00-P2 |
— | ||
|
02
|
02
5PW-2174X-00-00 Damper |
5PW-2174X-00-00 |
from US $1.70 |
||
|
03
|
03
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
03
|
03
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
04
|
04
13S-2171L-00-00 Mole, Side Cover 1 |
13S-2171L-00-00 |
from US $4.25 |
||
|
05
|
05
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
06
|
06
2C0-28237-00-00 Damper 3 |
2C0-28237-00-00 |
from US $2.13 |
||
|
07
|
07
1UF-15379-00-00 Seal |
1UF-15379-00-00 |
from US $1.70 |
||
|
08
|
08
5SL-28416-00-00 Damper 2 |
5SL-28416-00-00 |
from US $1.84 |
||
|
09
|
09
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
10
|
10
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
11
|
11
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.66 |
||
|
12
|
12
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
13
|
13
13S-21720-00-P0 Side Cover Assy 2For dpbmc |
13S-21720-00-P0 |
from US $167.17 |
||
|
13
|
13
13S-21720-00-P1 Side Cover Assy 2For bwc1,dnmg |
13S-21720-00-P1 |
from US $167.17 |
||
|
14
|
14
4KN-2836B-10-00 Tuning Fork Mark |
4KN-2836B-10-00 |
from US $17.86 |
||
|
15
|
15
13S-21639-00-00 Damper 2 |
13S-21639-00-00 |
from US $1.70 |
||
|
16
|
16
5SL-84753-00-00 Damper |
5SL-84753-00-00 |
from US $1.70 |
||
|
17
|
17
4J2-21778-00-00 Cap |
4J2-21778-00-00 |
from US $1.84 |
||
| replacement | |||||
|
17
|
17
1WG-2143A-00-00 Cap |
1WG-2143A-00-00 |
from US $5.67 |
||
|
18
|
18
90109-06248-00 Bolt |
90109-06248-00 |
from US $16.15 |
||
|
19
|
19
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.34 |
||
|
20
|
20
13S-2173E-00-00 Graphic 1For dpbmc |
13S-2173E-00-00 |
US $34 |
||
|
21
|
21
13S-2173F-00-00 Graphic 2For dpbmc |
13S-2173F-00-00 |
US $34 |
||
