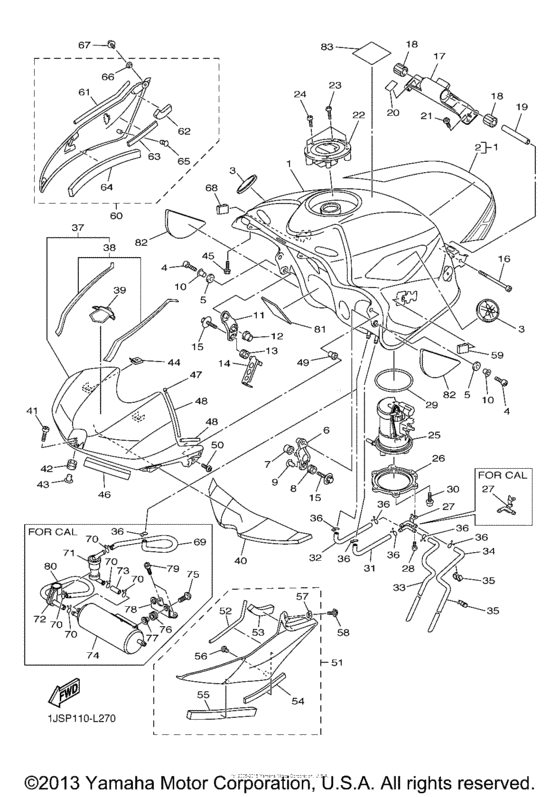

Fuel tank Diagram Yamaha YZF-R6/ YZF600 R6 50th Anniversary Edition
- Year
- 2012
- Model code
- 1JSR
- Sales region
- United States (California)
- Базовая модель
- YZFR6BCGP
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13S-Y2410-00-06 Fuel Tank Compfor Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
13S-Y2410-00-06 |
from US $1,235.52 |
||
| replacement | |||||
|
1
|
1
13S-W2410-01-06 Fuel Tank Assyfor Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
13S-W2410-01-06 |
US $1,035.06 |
||
|
2
|
2
1JS-24244-00-00 Graphic, Fuel Tank 1 |
1JS-24244-00-00 |
from US $67.57 |
||
|
3
|
3
5SL-2413B-10-00 Emblem 3D3D |
5SL-2413B-10-00 |
from US $22.50 |
||
|
4
|
4
91312-06016-00 Bolt |
91312-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
5
|
5
5VY-24183-00-00 Damper, Locating 3 |
5VY-24183-00-00 |
from US $3.26 |
||
|
6
|
6
5VY-24191-10-00 Bracket, Fuel Tank 1 |
5VY-24191-10-00 |
from US $11.90 |
||
|
7
|
7
5VY-24181-00-00 Damper, Locating 1 |
5VY-24181-00-00 |
from US $2.69 |
||
|
8
|
8
90480-10542-00 Grommet |
90480-10542-00 |
from US $5.95 |
||
|
9
|
9
90387-066Y6-00 Collar |
90387-066Y6-00 |
from US $4.39 |
||
|
10
|
10
90387-06143-00 Collar |
90387-06143-00 |
from US $6.94 |
||
|
11
|
11
5VY-24192-10-00 Bracket, Fuel Tank 2 |
5VY-24192-10-00 |
from US $11.90 |
||
|
12
|
12
5VY-24181-00-00 Damper, Locating 1 |
5VY-24181-00-00 |
from US $2.69 |
||
|
13
|
13
90480-10542-00 Grommet |
90480-10542-00 |
from US $5.95 |
||
|
14
|
14
2C0-21339-00-00 Guide, Wire |
2C0-21339-00-00 |
from US $12.75 |
||
|
15
|
15
901-19062-62-00 Bolt, With Washer |
901-19062-62-00 |
from US $1.42 |
||
|
16
|
16
913-12060-90-00
Bolt, Hexagon Socket Head
|
913-12060-90-00 |
— | ||
| replacement | |||||
|
16
|
16
91314-06090-00 Bolt, Hexagon Socket Head |
91314-06090-00 |
from US $1.98 |
||
|
17
|
17
2C0-2413Y-00-00 Bracket, Tank Fitting |
2C0-2413Y-00-00 |
from US $35.56 |
||
|
18
|
18
5SL-24183-00-00 Damper, Locating 3 |
5SL-24183-00-00 |
from US $3.68 |
||
|
19
|
19
903-87060-55-00 Collar |
903-87060-55-00 |
from US $4.39 |
||
|
20
|
20
2C0-21566-00-00 Tape, 1 |
2C0-21566-00-00 |
from US $2.55 |
||
|
21
|
21
90111-06071-00 Bolt, Hex. Socket Button |
90111-06071-00 |
from US $1.70 |
||
| replacement | |||||
|
21
|
21
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.70 |
||
|
22
|
22
39P-24602-00-00 Cap Assy |
39P-24602-00-00 |
from US $164.98 |
||
|
23
|
23
90110-05112-00 Bolt, Hexagon Socket Head |
90110-05112-00 |
from US $1.70 |
||
|
24
|
24
91312-05010-00 Bolt |
91312-05010-00 |
from US $1.56 |
||
|
25
|
25
14B-13907-00-00
Fuel Pump Comp
|
14B-13907-00-00 |
— | ||
| replacements | |||||
|
25
|
25
14B-13907-20-00
Fuel Pump Comp
|
14B-13907-20-00 |
— | ||
|
25
|
25
14B-13907-21-00
FUEL PUMP COMP
|
14B-13907-21-00 |
— | ||
|
25
|
25
14B-13907-22-00
Fuel Pump Comp.
|
14B-13907-22-00 |
— | ||
|
25
|
25
14B-13907-23-00 FUEL PUMP COMP |
14B-13907-23-00 |
from US $687 |
||
|
26
|
26
13S-24491-00-00 Bracket, Fuel Pump |
13S-24491-00-00 |
from US $20.18 |
||
|
27
|
27
13S-24135-00-00 Clamp 1FOR U49 |
13S-24135-00-00 |
from US $25.64 |
||
|
27
|
27
13S-24135-10-00
Clamp 1
FOR CALIFORNIA |
13S-24135-10-00 |
— | ||
|
28
|
28
90154-05012-00 Screw, Bind |
90154-05012-00 |
from US $1.35 |
||
| replacement | |||||
|
28
|
28
98907-05008-00 Screw, Binding |
98907-05008-00 |
from US $1.98 |
||
|
29
|
29
19B-24486-00-00 O-Ring |
19B-24486-00-00 |
from US $20.97 |
||
| replacement | |||||
|
29
|
29
19B-24486-01-00 O-Ring |
19B-24486-01-00 |
from US $20.97 |
||
|
30
|
30
90110-05028-00 Bolt, Hexagon Socket Head |
90110-05028-00 |
from US $1.70 |
||
|
31
|
31
13S-24315-00-00 Pipe 5 |
13S-24315-00-00 |
from US $8.36 |
||
|
32
|
32
13S-24316-00-00 Pipe 6 |
13S-24316-00-00 |
from US $8.64 |
||
|
33
|
33
13S-24317-00-00 Pipe 7 |
13S-24317-00-00 |
from US $17.14 |
||
|
33
|
33
13S-24317-10-00 Pipe 7FOR CALIFORNIA |
13S-24317-10-00 |
US $28.51 |
||
|
34
|
34
13S-24313-00-00 Pipe 3 |
13S-24313-00-00 |
from US $17.57 |
||
|
35
|
35
90464-09M31-00 Clamp |
90464-09M31-00 |
from US $1.66 |
||
|
36
|
36
904-67090-06-00
Clip
FOR CALIFORNIA |
904-67090-06-00 |
— | ||
| replacement | |||||
|
36
|
36
904-67090-A2-00 ClipFOR CALIFORNIA |
904-67090-A2-00 |
from US $1.56 |
||
|
37
|
37
13S-Y210A-10-1X Cover, Topfor Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
13S-Y210A-10-1X |
from US $299.52 |
||
|
38
|
38
1JS-24230-20-00 Graphic Set 1 |
1JS-24230-20-00 |
from US $45.47 |
||
|
39
|
39
1KB-2416B-00-00 Emblem 3D3D |
1KB-2416B-00-00 |
from US $49.18 |
||
| replacement | |||||
|
39
|
39
1KB-2416B-01-00 EMBLEM3D |
1KB-2416B-01-00 |
US $54.68 |
||
|
40
|
40
13S-24854-00-00 Damper |
13S-24854-00-00 |
from US $5.10 |
||
|
41
|
41
90111-06030-00 Bolt, Hex. Socket Button |
90111-06030-00 |
from US $2.69 |
||
|
42
|
42
90480-12314-00 Grommet |
90480-12314-00 |
from US $1.28 |
||
| replacement | |||||
|
42
|
42
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.28 |
||
|
43
|
43
903-87062-22-00 Collar |
903-87062-22-00 |
from US $3.54 |
||
|
44
|
44
90183-05074-00 Nut, Spring(3Yx) |
90183-05074-00 |
from US $1.98 |
||
|
45
|
45
90105-05014-00 Bolt, Flange |
90105-05014-00 |
from US $1.70 |
||
|
46
|
46
2C0-2414J-00-00 Damper, Plate 2 |
2C0-2414J-00-00 |
from US $1.84 |
||
|
47
|
47
13S-24181-00-00 Damper, Locating 1 |
13S-24181-00-00 |
from US $1.84 |
||
|
48
|
48
2C0-2414N-00-00 Damper, Plate |
2C0-2414N-00-00 |
from US $0.95 |
||
| replacement | |||||
|
48
|
48
90520-03016-00 Damper, Plate |
90520-03016-00 |
from US $1.34 |
||
|
49
|
49
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
50
|
50
98902-05014-00 Screw, Bind |
98902-05014-00 |
from US $1.56 |
||
|
51
|
51
13S-24106-00-00 Tank Side Cover Assy 1 |
13S-24106-00-00 |
from US $35.42 |
||
|
52
|
52
4C8-2414H-00-00 Damper, Plate 1 |
4C8-2414H-00-00 |
from US $1.39 |
||
| replacement | |||||
|
52
|
52
90520-04013-00 Damper, Plate |
90520-04013-00 |
from US $1.84 |
||
|
53
|
53
2C0-2414P-00-00 Damper, Plate 5 |
2C0-2414P-00-00 |
from US $1.84 |
||
|
54
|
54
4C8-2414J-00-00 Damper, Plate 2 |
4C8-2414J-00-00 |
from US $1.66 |
||
| replacement | |||||
|
54
|
54
90520-04012-00 Damper, Plate |
90520-04012-00 |
from US $1.84 |
||
|
55
|
55
2C0-24184-00-00 Damper, Locating 4 |
2C0-24184-00-00 |
from US $1.84 |
||
|
56
|
56
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
56
|
56
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
57
|
57
90387-05035-00 Collar |
90387-05035-00 |
from US $3.54 |
||
|
58
|
58
98902-05008-00 Screw, Bind |
98902-05008-00 |
from US $1.56 |
||
|
59
|
59
5PW-2411J-01-00 Damper, Side Cover |
5PW-2411J-01-00 |
from US $2.41 |
||
|
60
|
60
13S-24108-00-00 Tank Side Cover Assy 2 |
13S-24108-00-00 |
from US $35.42 |
||
|
61
|
61
4C8-2414H-00-00 Damper, Plate 1 |
4C8-2414H-00-00 |
from US $1.39 |
||
| replacement | |||||
|
61
|
61
90520-04013-00 Damper, Plate |
90520-04013-00 |
from US $1.84 |
||
|
62
|
62
2C0-2414P-00-00 Damper, Plate 5 |
2C0-2414P-00-00 |
from US $1.84 |
||
|
63
|
63
4C8-2414J-00-00 Damper, Plate 2 |
4C8-2414J-00-00 |
from US $1.66 |
||
| replacement | |||||
|
63
|
63
90520-04012-00 Damper, Plate |
90520-04012-00 |
from US $1.84 |
||
|
64
|
64
2C0-24184-00-00 Damper, Locating 4 |
2C0-24184-00-00 |
from US $1.84 |
||
|
65
|
65
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
65
|
65
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
66
|
66
90387-05035-00 Collar |
90387-05035-00 |
from US $3.54 |
||
|
67
|
67
98902-05008-00 Screw, Bind |
98902-05008-00 |
from US $1.56 |
||
|
68
|
68
5PW-2411J-01-00 Damper, Side Cover |
5PW-2411J-01-00 |
from US $2.41 |
||
|
69
|
69
13S-24314-00-00 Pipe 4FOR CALIFORNIA |
13S-24314-00-00 |
US $40.52 |
||
|
70
|
70
904-67090-06-00
Clip
FOR CALIFORNIA |
904-67090-06-00 |
— | ||
| replacement | |||||
|
70
|
70
904-67090-A2-00 ClipFOR CALIFORNIA |
904-67090-A2-00 |
from US $1.56 |
||
|
71
|
71
2C0-24180-00-00 Roll Over Valve AssyFOR CALIFORNIA |
2C0-24180-00-00 |
from US $43.93 |
||
|
72
|
72
2C0-24398-00-00
Band 1
FOR CALIFORNIA |
2C0-24398-00-00 |
— | ||
|
73
|
73
904-45110-65-00 Hose (L30)FOR CALIFORNIA |
904-45110-65-00 |
US $3.40 |
||
|
74
|
74
5EL-24170-00-00 Canister AssyFOR CALIFORNIA |
5EL-24170-00-00 |
from US $510.26 |
||
|
75
|
75
90111-06091-00 Bolt, Hexagon Socket HeadFOR CALIFORNIA |
90111-06091-00 |
from US $1.70 |
||
| replacement | |||||
|
75
|
75
901-10062-00-00 Bolt, Hexagon Socket HeadFOR CALIFORNIA |
901-10062-00-00 |
from US $1.70 |
||
|
76
|
76
90480-13018-00 GrommetFOR CALIFORNIA |
90480-13018-00 |
from US $1.56 |
||
|
77
|
77
90387-062L2-00 CollarFOR CALIFORNIA |
90387-062L2-00 |
from US $3.54 |
||
|
78
|
78
2C0-2419F-00-00 Bracket, CanistorFOR CALIFORNIA |
2C0-2419F-00-00 |
from US $11.90 |
||
|
79
|
79
901-10061-75-00
Bolt, Hexagon Socket Head
FOR CALIFORNIA |
901-10061-75-00 |
— | ||
| replacements | |||||
|
79
|
79
913-14060-20-00 BoltFOR CALIFORNIA |
913-14060-20-00 |
from US $1.07 |
||
|
79
|
79
91312-06020-00 Bolt, Hexagon Socket HeadFOR CALIFORNIA |
91312-06020-00 |
from US $1.21 |
||
|
80
|
80
2C0-1443J-01-00 PipeFOR CALIFORNIA |
2C0-1443J-01-00 |
US $32.24 |
||
|
81
|
81
13S-24145-10-00 Damper, Side Cover |
13S-24145-10-00 |
from US $2.55 |
||
|
82
|
82
2C0-24145-10-00 Damper, Side Cover |
2C0-24145-10-00 |
from US $1.70 |
||
|
83
|
83
4C8-2118K-00-00 Label, Caution |
4C8-2118K-00-00 |
from US $4.39 |
||
