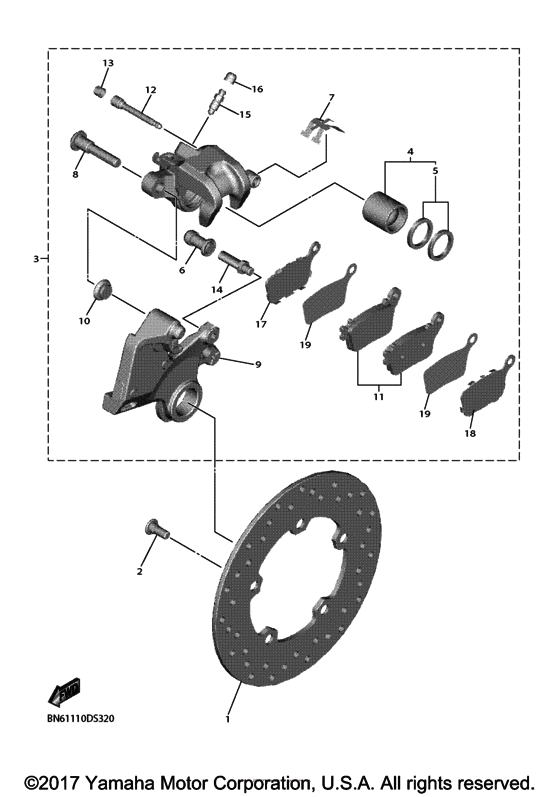

Rear brake caliper Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2017
- Model code
- BN62
- Sales region
- United States (California)
- Базовая модель
- YZFR6HCL
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5SL-2582W-00-00 Disc, Rear Brake 2 |
5SL-2582W-00-00 |
from US $211.38 |
||
|
2
|
2
90149-08009-00 Screw |
90149-08009-00 |
from US $4.11 |
||
| replacement | |||||
|
2
|
2
901-49080-10-00 Screw |
901-49080-10-00 |
from US $4.11 |
||
|
3
|
3
BN6-2580W-00-00 CALIPER ASSY, REAR 2 |
BN6-2580W-00-00 |
from US $316.39 |
||
|
4
|
4
2CR-25802-00-00 Piston Assy, Caliper |
2CR-25802-00-00 |
from US $25.36 |
||
|
5
|
5
3JD-25803-50-00 Caliper Seal Kit |
3JD-25803-50-00 |
from US $4.82 |
||
|
6
|
6
1UY-25937-51-00 Boot 2 |
1UY-25937-51-00 |
from US $5.10 |
||
|
7
|
7
2CR-25919-50-00 Support, Pad |
2CR-25919-50-00 |
from US $2.98 |
||
|
8
|
8
5DH-25914-50-00 Pin, Slide |
5DH-25914-50-00 |
from US $8.08 |
||
|
9
|
9
BN6-25921-50-00 BRACKET, SUPPORT |
BN6-25921-50-00 |
from US $111.63 |
||
|
10
|
10
3JD-25917-00-00 Boot, Caliper |
3JD-25917-00-00 |
from US $2 |
||
|
11
|
11
2CR-25806-00-00 Brake Pad Kit 2 |
2CR-25806-00-00 |
from US $65.66 |
||
|
12
|
12
2CR-25924-00-00 Pin, Pad |
2CR-25924-00-00 |
from US $6.09 |
||
|
13
|
13
5DH-25916-50-00 Plug |
5DH-25916-50-00 |
from US $3.26 |
||
|
14
|
14
3SP-25914-51-00 Pin, Slide |
3SP-25914-51-00 |
from US $5.10 |
||
|
15
|
15
8CR-25824-00-00 Screw, Bleed |
8CR-25824-00-00 |
from US $2.69 |
||
|
16
|
16
2CR-25825-00-00 Cap |
2CR-25825-00-00 |
from US $1.28 |
||
|
17
|
17
2CR-25827-00-00 Shim, Caliper |
2CR-25827-00-00 |
from US $3.40 |
||
|
18
|
18
2CR-25827-10-00 Shim, Caliper |
2CR-25827-10-00 |
from US $3.40 |
||
|
19
|
19
2CR-25828-00-00 Shim, Caliper |
2CR-25828-00-00 |
from US $9.49 |
||
