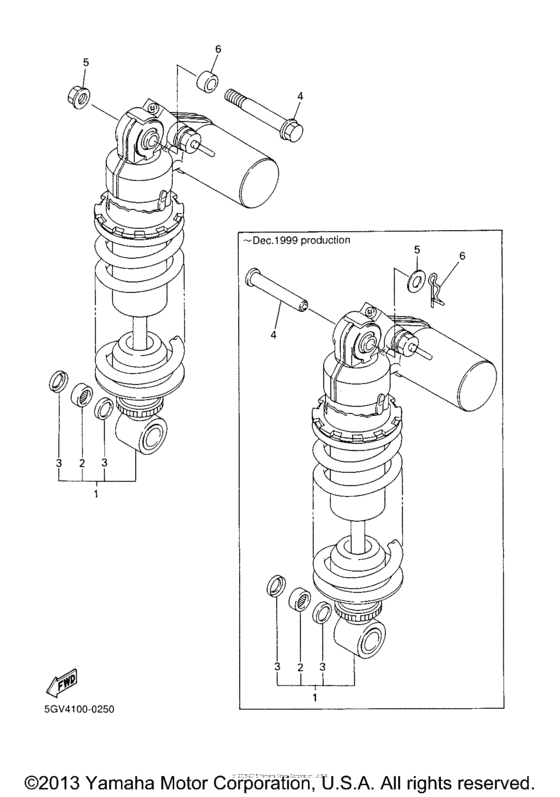

Rear suspension Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2000
- Model code
- 5GV5
- Sales region
- United States (California)
- Базовая модель
- YZFR6MC
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EB-22210-10-00
Shock Absorber Assy,
|
5EB-22210-10-00 |
— | ||
| replacement | |||||
|
1
|
1
5MT-22210-20-00
Shock Absorber Assy, Rear
|
5MT-22210-20-00 |
— | ||
|
2
|
2
933-15317-59-00 Bearing |
933-15317-59-00 |
from US $18.99 |
||
|
3
|
3
931-09170-71-00 Oil Seal |
931-09170-71-00 |
from US $2.98 |
||
|
4
|
4
90105-10376-00 Bolt, Flange |
90105-10376-00 |
from US $6.23 |
||
|
4
|
4
90240-10143-00
Pin, Clevis
|
90240-10143-00 |
— | ||
|
5
|
5
90201-08759-00 Washer, Plate |
90201-08759-00 |
from US $1.70 |
||
|
5
|
5
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
6
|
6
90468-20196-00 Clip |
90468-20196-00 |
from US $1.04 |
||
|
6
|
6
90387-1013U-00 Collar |
90387-1013U-00 |
from US $13.88 |
||
