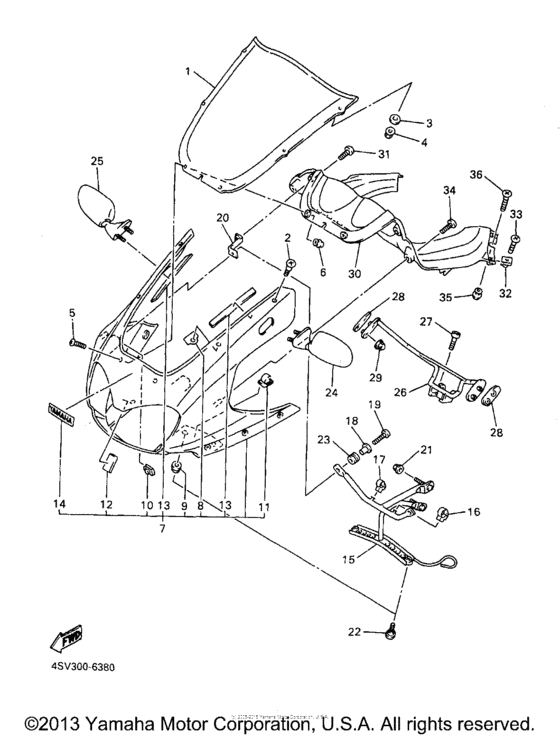

Cowling (1) Diagram Yamaha YZF1000R Thunderace
- Year
- 1997
- Model code
- 4YW2
- Sales region
- United States (California)
- Engine Capacity
- 1000
- Model
- YZF1000R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SV-28381-00-00
Windshield
|
4SV-28381-00-00 |
— | ||
| replacement | |||||
|
1
|
1
4SV-28381-01-00 Windshield |
4SV-28381-01-00 |
US $157.37 |
||
|
2
|
2
90149-05273-00 Screw |
90149-05273-00 |
from US $3.26 |
||
|
3
|
3
4FM-28215-00-00 Washer, Special |
4FM-28215-00-00 |
from US $3.12 |
||
|
4
|
4
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
5
|
5
901-50050-24-00 Screw, Round Head |
901-50050-24-00 |
from US $1.56 |
||
|
6
|
6
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
7
|
7
4SV-Y283G-10-1X Body, Front Upper 1Use for Color BLACK 2 BL2 / 004B |
4SV-Y283G-10-1X |
US $918.79 |
||
| replacement | |||||
|
7
|
7
4SV-W283G-10-5X Body, Front Upper 1Use for Color BLACK 2 BL2 / 004B |
4SV-W283G-10-5X |
US $918.79 |
||
|
7
|
7
4SV-Y283G-00-0X Body, Front Upper 1Use for Color BLACK 2 BL2 / 004B |
4SV-Y283G-00-0X |
US $920.12 |
||
| replacement | |||||
|
7
|
7
4SV-W283G-00-4X Body, Front Upper 1Use for Color BLACK 2 BL2 / 004B |
4SV-W283G-00-4X |
US $920.12 |
||
|
8
|
8
4SV-2834V-00-00 Protector 1 |
4SV-2834V-00-00 |
US $1.58 |
||
|
9
|
9
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
9
|
9
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
10
|
10
90183-06023-00 Nut, Spring |
90183-06023-00 |
from US $3.68 |
||
|
11
|
11
90464-25160-00 Clamp |
90464-25160-00 |
from US $5.24 |
||
|
12
|
12
22F-24181-00-00
Damper, Locating 1
|
22F-24181-00-00 |
— | ||
|
13
|
13
4SV-28415-00-00 Damper 1 |
4SV-28415-00-00 |
US $1.39 |
||
|
14
|
14
992-36001-00-00
Emblem, Yamaha
for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
992-36001-00-00 |
— | ||
| replacement | |||||
|
14
|
14
992-46001-00-00 Emblem, Yamahafor Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
992-46001-00-00 |
from US $10.20 |
||
|
14
|
14
992-34001-00-00
Emblem, Yamaha
for Color BLACK 2 BL2 / 004B |
992-34001-00-00 |
— | ||
| replacement | |||||
|
14
|
14
992-44001-00-00 Emblem, Yamahafor Color BLACK 2 BL2 / 004B |
992-44001-00-00 |
from US $8.22 |
||
|
15
|
15
4SV-28356-00-00 Stay 1 |
4SV-28356-00-00 |
US $394.51 |
||
|
16
|
16
90464-20191-00 Clamp |
90464-20191-00 |
from US $1.70 |
||
|
17
|
17
90464-10190-00 Clamp |
90464-10190-00 |
from US $1.70 |
||
|
18
|
18
90387-067N5-00 Collar |
90387-067N5-00 |
from US $4.68 |
||
|
19
|
19
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
20
|
20
4SV-28357-00-00
Stay 2
|
4SV-28357-00-00 |
— | ||
|
21
|
21
956-17082-00-00
Nut, Self-Locking
|
956-17082-00-00 |
— | ||
| replacement | |||||
|
21
|
21
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
22
|
22
90150-06036-00 Screw, Round Head |
90150-06036-00 |
from US $1.84 |
||
|
23
|
23
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
23
|
23
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
24
|
24
4SV-26280-00-00 Rear View Mirror Assy(Left) |
4SV-26280-00-00 |
from US $117.71 |
||
|
25
|
25
4SV-26290-00-00 Rear View Mirror Assy (Right) |
4SV-26290-00-00 |
from US $117.71 |
||
|
26
|
26
4SV-2831W-00-00
Stay, Mirror 1
|
4SV-2831W-00-00 |
— | ||
|
27
|
27
90110-06210-00 Bolt |
90110-06210-00 |
US $1.07 |
||
| replacement | |||||
|
27
|
27
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
28
|
28
4SV-26298-00-00 Plate, Mirror Fitting 1 |
4SV-26298-00-00 |
from US $10.63 |
||
|
29
|
29
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.56 |
||
|
30
|
30
4SV-2837L-00-00 Panel, Console 1 |
4SV-2837L-00-00 |
from US $236.25 |
||
|
31
|
31
90154-05013-00 Screw, Binding |
90154-05013-00 |
from US $1.70 |
||
|
32
|
32
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
32
|
32
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.36 |
||
|
33
|
33
90150-05039-00 Screw, Round Head |
90150-05039-00 |
from US $2.55 |
||
|
34
|
34
90167-05075-00
Screw, Tapping
|
90167-05075-00 |
— | ||
| replacement | |||||
|
34
|
34
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
35
|
35
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
36
|
36
98907-05016-00 Screw, Bind |
98907-05016-00 |
from US $1.56 |
||
