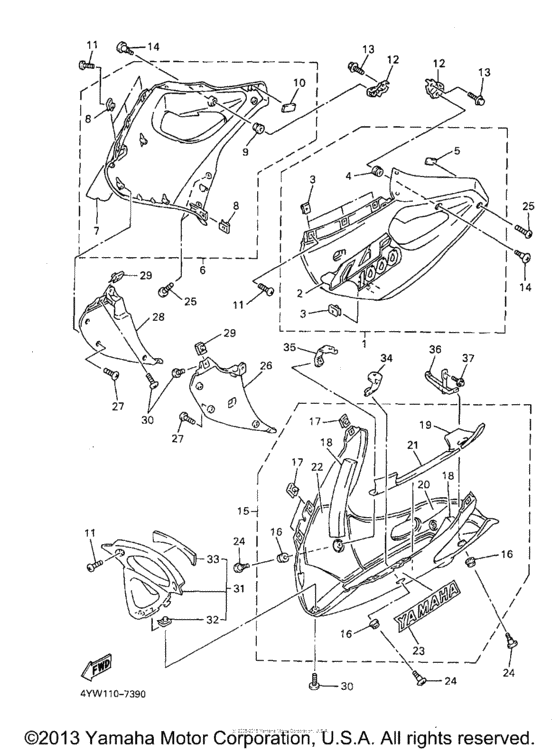

Cowling (2) Diagram Yamaha YZF1000R Thunderace
- Year
- 1997
- Model code
- 4YW2
- Sales region
- United States (California)
- Engine Capacity
- 1000
- Model
- YZF1000R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SV-Y283U-30-4B
Panel Assembly 1
Use for Color BLACK 2 BL2 / 004B |
4SV-Y283U-30-4B |
— | ||
| replacements | |||||
|
1
|
1
4SV-W283U-51-P3
PANEL ASSEMBLY 2
Use for Color BLACK 2 BL2 / 004B |
4SV-W283U-51-P3 |
— | ||
|
1
|
1
4SV-Y283U-A0-4B
New Genuine Part
Use for Color BLACK 2 BL2 / 004B |
4SV-Y283U-A0-4B |
— | ||
|
1
|
1
4SV-Y283U-51-4B
Panel Assy 1
Use for Color BLACK 2 BL2 / 004B |
4SV-Y283U-51-4B |
— | ||
|
1
|
1
4SV-Y283U-20-P0 Panel Assembly 1Use for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
4SV-Y283U-20-P0 |
US $971.87 |
||
| replacement | |||||
|
1
|
1
4SV-Y283U-11-P0 Panel Assy 1Use for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
4SV-Y283U-11-P0 |
US $971.87 |
||
|
2
|
2
4WN-28391-10-00
Graphic 1
Use for Color BLACK 2 BL2 / 004B |
4WN-28391-10-00 |
— | ||
|
2
|
2
4WN-28391-00-00
Graphic 1
Use for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
4WN-28391-00-00 |
— | ||
|
3
|
3
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
3
|
3
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.36 |
||
|
4
|
4
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
4
|
4
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
5
|
5
4SV-28372-00-00 Damper |
4SV-28372-00-00 |
from US $1.84 |
||
|
6
|
6
4SV-Y283V-30-4B
Panel Assembly 2
Use for Color BLACK 2 BL2 / 004B |
4SV-Y283V-30-4B |
— | ||
| replacements | |||||
|
6
|
6
4SV-Y283V-51-4B
Panel Assy 2 Black
Use for Color BLACK 2 BL2 / 004B |
4SV-Y283V-51-4B |
— | ||
|
6
|
6
4SV-Y283V-A0-4B
New Genuine Part
Use for Color BLACK 2 BL2 / 004B |
4SV-Y283V-A0-4B |
— | ||
|
6
|
6
4SV-Y283V-20-P0 Panel Assembly 2Use for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
4SV-Y283V-20-P0 |
US $966.98 |
||
| replacement | |||||
|
6
|
6
4SV-Y283V-11-P0 Panel Assy 2 RedUse for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
4SV-Y283V-11-P0 |
US $966.98 |
||
|
7
|
7
4WN-28392-10-00 Graphic 2Use for Color BLACK 2 BL2 / 004B |
4WN-28392-10-00 |
US $92.25 |
||
|
7
|
7
4WN-28392-00-00 Graphic 2Use for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
4WN-28392-00-00 |
US $82.39 |
||
|
8
|
8
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
8
|
8
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.36 |
||
|
9
|
9
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
9
|
9
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
10
|
10
4SV-28372-00-00 Damper |
4SV-28372-00-00 |
from US $1.84 |
||
|
11
|
11
90150-05039-00 Screw, Round Head |
90150-05039-00 |
from US $2.55 |
||
|
12
|
12
4SV-2836A-00-00
Bracket 1
|
4SV-2836A-00-00 |
— | ||
|
13
|
13
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
14
|
14
90150-06036-00 Screw, Round Head |
90150-06036-00 |
from US $1.84 |
||
|
15
|
15
4SV-Y2808-10-6M
Cover Assembly, Under
for Color BLACK 2 BL2 / 004B |
4SV-Y2808-10-6M |
— | ||
|
15
|
15
4SV-Y2808-10-P0
Cover Assembly, Under
for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
4SV-Y2808-10-P0 |
— | ||
|
16
|
16
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
16
|
16
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
17
|
17
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
17
|
17
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.36 |
||
|
18
|
18
4SV-28371-00-00
Damper
|
4SV-28371-00-00 |
— | ||
|
19
|
19
4SV-2848K-00-00 Seat 2 |
4SV-2848K-00-00 |
US $24.35 |
||
|
20
|
20
4SV-2848L-00-00 Seat 3 |
4SV-2848L-00-00 |
US $66.65 |
||
|
21
|
21
4SV-2848M-00-00 Seat 4 |
4SV-2848M-00-00 |
US $11.11 |
||
|
22
|
22
4SV-2848N-00-00 Seat 5 |
4SV-2848N-00-00 |
US $34.33 |
||
|
23
|
23
99234-00280-00 Emblem, Yamaha |
99234-00280-00 |
from US $16.29 |
||
| replacement | |||||
|
23
|
23
99244-00280-00 Emblem, Yamaha |
99244-00280-00 |
from US $21.68 |
||
|
24
|
24
90150-06036-00 Screw, Round Head |
90150-06036-00 |
from US $1.84 |
||
|
25
|
25
90150-05039-00 Screw, Round Head |
90150-05039-00 |
from US $2.55 |
||
|
26
|
26
4SV-2836K-00-4B Panel, Inner 1Use for Color BLACK 2 BL2 / 004B |
4SV-2836K-00-4B |
US $348.39 |
||
| replacement | |||||
|
26
|
26
4SV-2836K-00-P3 Panel, Inner 1Use for Color BLACK 2 BL2 / 004B |
4SV-2836K-00-P3 |
US $348.39 |
||
|
26
|
26
4SV-2836K-00-P0 Panel, Inner 1Use for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
4SV-2836K-00-P0 |
US $371.61 |
||
|
27
|
27
97704-40012-00 Screw, Tapping |
97704-40012-00 |
from US $1.56 |
||
|
28
|
28
4SV-2836L-00-P0
Panel, Inner 2
Use for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
4SV-2836L-00-P0 |
— | ||
|
28
|
28
4SV-2836L-00-4B Panel, Inner 2Use for Color BLACK 2 BL2 / 004B |
4SV-2836L-00-4B |
US $197.19 |
||
| replacement | |||||
|
28
|
28
4SV-2836L-00-P3 Panel, Inner 2Use for Color BLACK 2 BL2 / 004B |
4SV-2836L-00-P3 |
US $197.19 |
||
|
29
|
29
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
29
|
29
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.36 |
||
|
30
|
30
90150-05039-00 Screw, Round Head |
90150-05039-00 |
from US $2.55 |
||
|
31
|
31
4SV-Y283S-00-6M Panel, Inner 3Use for Color BLACK 2 BL2 / 004B |
4SV-Y283S-00-6M |
US $263.63 |
||
|
31
|
31
4SV-Y283S-00-P0 Panel, Inner 3Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
4SV-Y283S-00-P0 |
US $284.85 |
||
|
32
|
32
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
32
|
32
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.36 |
||
|
33
|
33
4SV-2848H-00-00
Seat
|
4SV-2848H-00-00 |
— | ||
|
34
|
34
4SV-2836F-00-00 Bracket 3 |
4SV-2836F-00-00 |
US $12.51 |
||
|
35
|
35
4SV-2836G-00-00
Bracket 4
|
4SV-2836G-00-00 |
— | ||
|
36
|
36
4FM-2831T-00-00 Stay, Support 1 |
4FM-2831T-00-00 |
US $50.18 |
||
|
37
|
37
90119-06018-00 Bolt, With Washer |
90119-06018-00 |
from US $1.56 |
||
| replacement | |||||
|
37
|
37
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
