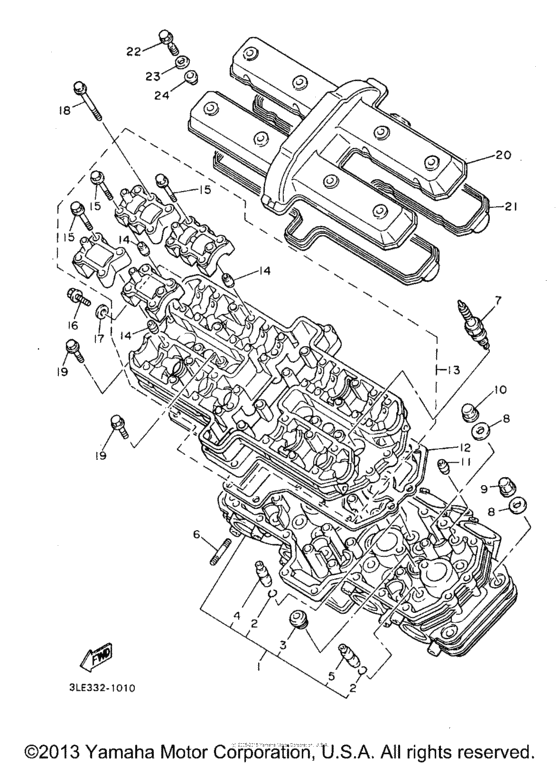

Cylinder head Diagram Yamaha YZF1000R Thunderace
- Year
- 1997
- Model code
- 4YW2
- Sales region
- United States (California)
- Engine Capacity
- 1000
- Model
- YZF1000R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SV-11102-00-00
Cylinder Head Assembly
|
4SV-11102-00-00 |
— | ||
|
2
|
2
93440-10153-00 Circlip |
93440-10153-00 |
from US $1.70 |
||
|
3
|
3
90340-18101-00 Plug, Straight Screw |
90340-18101-00 |
from US $7.51 |
||
|
4
|
4
3GM-11133-10-00
Guide, Valve 1
|
3GM-11133-10-00 |
— | ||
|
5
|
5
3GM-11134-10-00 Guide, Valve 2 |
3GM-11134-10-00 |
from US $51.92 |
||
|
6
|
6
95617-08625-00 Bolt, Stud |
95617-08625-00 |
from US $3.83 |
||
|
7
|
7
NGK-DR8EA-00-00 Plug, Spark (Ngk Dr8Ea)UR |
NGK-DR8EA-00-00 |
US $4.23 |
||
| replacement | |||||
|
7
|
7
DR8-EA000-00-00 Plug, Spark (Ngk Dr8Ea)UR |
DR8-EA000-00-00 |
US $50.20 |
||
|
7
|
7
94701-00222-00
Plug, Spark
X24ESR-U UR |
94701-00222-00 |
— | ||
| replacement | |||||
|
7
|
7
SPL-X24ES-RU-00
Spark Plug - Denso X24Esru
X24ESR-U UR |
SPL-X24ES-RU-00 |
— | ||
|
8
|
8
90201-103M4-00 Washer, Plate |
90201-103M4-00 |
from US $1.84 |
||
|
9
|
9
90176-10075-00 Nut, Crown |
90176-10075-00 |
from US $4.39 |
||
|
10
|
10
90179-10584-00 Nut |
90179-10584-00 |
from US $19.20 |
||
|
11
|
11
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
11
|
11
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.70 |
||
|
11
|
11
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
12
|
12
3FV-11182-00-00 Gasket, Cylinder Head 2 |
3FV-11182-00-00 |
from US $50.84 |
||
|
13
|
13
3GM-1115A-01-00
Cam Case Assembly
|
3GM-1115A-01-00 |
— | ||
|
14
|
14
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.36 |
||
|
15
|
15
90105-06153-00 Bolt, Flange |
90105-06153-00 |
from US $1.70 |
||
|
16
|
16
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
17
|
17
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
18
|
18
90105-06541-00 Bolt, Flange |
90105-06541-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
95817-06070-00 Bolt, Flange |
95817-06070-00 |
from US $1.56 |
||
|
19
|
19
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $1.98 |
||
|
20
|
20
3GM-11191-00-00
Cover,cyl.head 1
|
3GM-11191-00-00 |
— | ||
| replacement | |||||
|
20
|
20
3GM-11191-01-00
Cover, Cylinder Head 1
|
3GM-11191-01-00 |
— | ||
|
21
|
21
4SV-11193-00-00
Gasket, Head Cover 1
|
4SV-11193-00-00 |
— | ||
| replacement | |||||
|
21
|
21
4SV-11193-01-00 Gasket, Head Cover 1 |
4SV-11193-01-00 |
from US $51.71 |
||
|
22
|
22
90109-064F0-00 Bolt |
90109-064F0-00 |
from US $5.24 |
||
|
23
|
23
902-09112-62-00 Washer |
902-09112-62-00 |
from US $1.98 |
||
|
24
|
24
2GH-1111G-00-00 Rubber, Mount 1 |
2GH-1111G-00-00 |
from US $5.38 |
||
