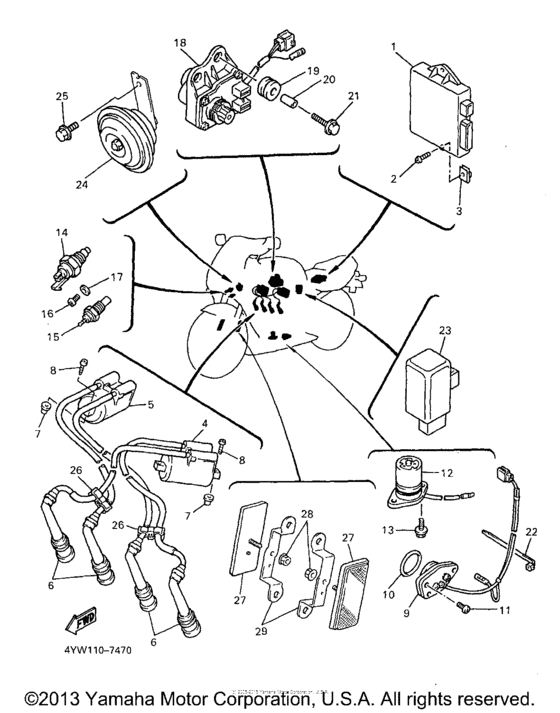

Electrical (1) Diagram Yamaha YZF1000R Thunderace
- Year
- 1997
- Model code
- 4YW2
- Sales region
- United States (California)
- Engine Capacity
- 1000
- Model
- YZF1000R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4YW-82305-00-00 Ignitor Unit Assembly |
4YW-82305-00-00 |
US $1,067.09 |
||
|
2
|
2
92017-06020-00 Bolt, Button Head |
92017-06020-00 |
from US $1.56 |
||
|
3
|
3
90183-06023-00 Nut, Spring |
90183-06023-00 |
from US $3.68 |
||
|
4
|
4
4FM-82310-01-00 Ignition Coil Assy |
4FM-82310-01-00 |
from US $110.67 |
||
| replacements | |||||
|
4
|
4
4KM-82310-01-00
Ignition Coil Assy
|
4KM-82310-01-00 |
— | ||
|
4
|
4
4KM-82310-02-00 Ignition Coil Assy |
4KM-82310-02-00 |
from US $117.01 |
||
|
5
|
5
4FM-82320-01-00
Ignition Coil Assy
|
4FM-82320-01-00 |
— | ||
| replacement | |||||
|
5
|
5
4BH-82320-01-00
Ignition Coil Assy
|
4BH-82320-01-00 |
— | ||
|
6
|
6
4SV-82370-10-00 Plug Cap Assembly |
4SV-82370-10-00 |
US $109.42 |
||
|
7
|
7
90338-08226-00 Plug |
90338-08226-00 |
from US $1.70 |
||
|
8
|
8
97707-60525-00 Screw, Tapping |
97707-60525-00 |
from US $2.13 |
||
|
9
|
9
4FM-82540-01-00
Neutral Switch Assembly
|
4FM-82540-01-00 |
— | ||
|
10
|
10
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.56 |
||
|
11
|
11
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
12
|
12
3GM-85720-00-00 Oil Level Gauge Assembly |
3GM-85720-00-00 |
US $260.91 |
||
|
13
|
13
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
13
|
13
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.41 |
||
|
14
|
14
3LN-82560-01-00 Thermo Switch Assy |
3LN-82560-01-00 |
from US $61.07 |
||
|
15
|
15
11H-83591-00-00 Thermo Unit |
11H-83591-00-00 |
from US $90.36 |
||
|
16
|
16
98507-06010-00 Screw, Pan Head |
98507-06010-00 |
from US $1.07 |
||
|
17
|
17
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
18
|
18
4FM-85820-00-00 Servo Motor Assy |
4FM-85820-00-00 |
from US $327.53 |
||
| replacement | |||||
|
18
|
18
4FM-85820-01-00
Servo Motor Assy
|
4FM-85820-01-00 |
— | ||
|
19
|
19
90480-14412-00 Grommet |
90480-14412-00 |
from US $1.90 |
||
|
20
|
20
90387-0609L-00 Collar |
90387-0609L-00 |
from US $4.68 |
||
|
21
|
21
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
22
|
22
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
23
|
23
3GM-83350-01-00
Flasher Relay Assy
|
3GM-83350-01-00 |
— | ||
| replacements | |||||
|
23
|
23
3GM-83350-02-00 Flasher Relay Assy |
3GM-83350-02-00 |
from US $51.67 |
||
|
23
|
23
3GM-83350-03-00 Flasher Relay Assy |
3GM-83350-03-00 |
US $93.53 |
||
|
24
|
24
3TB-83371-01-00 Horn |
3TB-83371-01-00 |
from US $63.23 |
||
| replacement | |||||
|
24
|
24
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
25
|
25
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
26
|
26
90464-10186-00 Clamp |
90464-10186-00 |
from US $2.94 |
||
|
27
|
27
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $12.12 |
||
|
28
|
28
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
29
|
29
4SV-85112-00-00 Bracket, Reflector 1 |
4SV-85112-00-00 |
US $14.69 |
||
