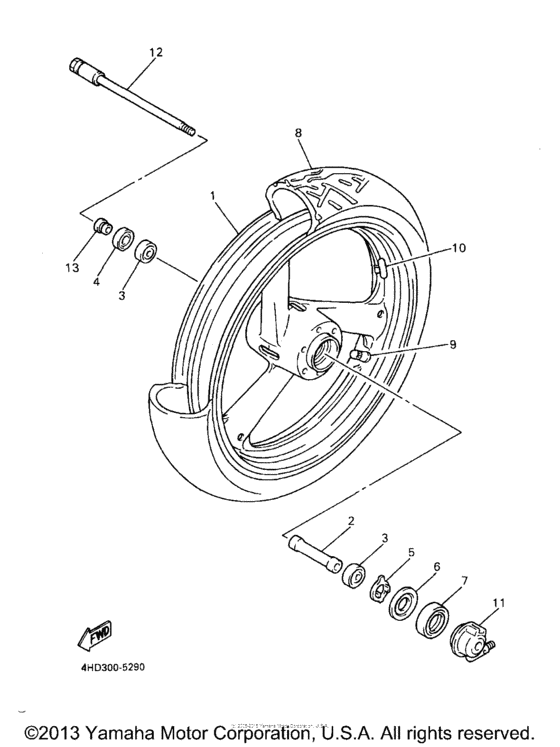

Front wheel Diagram Yamaha YZF1000R Thunderace
- Year
- 1997
- Model code
- 4YW2
- Sales region
- United States (California)
- Engine Capacity
- 1000
- Model
- YZF1000R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SV-25168-00-7B Cast Wheel, Front |
4SV-25168-00-7B |
US $919.67 |
||
|
2
|
2
90387-2200S-00 Spacer, Bearing |
90387-2200S-00 |
from US $17.28 |
||
| replacement | |||||
|
2
|
2
5EA-25117-00-00 Spacer, Bearing |
5EA-25117-00-00 |
from US $16.43 |
||
|
3
|
3
93306-00420-00 Bearing |
93306-00420-00 |
from US $20.12 |
||
|
4
|
4
93102-28021-00 Oil Seal |
93102-28021-00 |
from US $5.24 |
||
| replacement | |||||
|
4
|
4
93106-28043-00 Oil Seal |
93106-28043-00 |
from US $4.02 |
||
|
5
|
5
4FM-25149-00-00 Clutch, Meter |
4FM-25149-00-00 |
from US $10.06 |
||
|
6
|
6
341-25846-00-00 Retainer, Clutch |
341-25846-00-00 |
from US $2.98 |
||
|
7
|
7
93105-45017-00 Oil Seal |
93105-45017-00 |
from US $11.05 |
||
|
8
|
8
94112-1709J-00
Tire
120/70 ZR17 D204F UR DUNLOP |
94112-1709J-00 |
— | ||
|
8
|
8
94112-1708X-00
Tire
120/70 ZR17 B50F UR BRIDGE- STONE |
94112-1708X-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
120/70 ZR17 B50F UR BRIDGE- STONE |
999-99999-99-00 |
— | ||
|
9
|
9
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
10
|
10
29L-25398-20-00 Balancer, Wheel (30G)30G UN |
29L-25398-20-00 |
from US $7.65 |
||
| replacement | |||||
|
10
|
10
5MT-25398-20-00 Balancer, Wheel (30G)30G UN |
5MT-25398-20-00 |
from US $7.65 |
||
|
10
|
10
29L-25398-10-00
Balancer, Wheel (20G)
20G UN |
29L-25398-10-00 |
— | ||
| replacement | |||||
|
10
|
10
5MT-25398-10-00 Balancer, Wheel (20G)20G UN |
5MT-25398-10-00 |
from US $7.65 |
||
|
10
|
10
29L-25398-00-00
Balancer, Wheel (10G)
10G UN |
29L-25398-00-00 |
— | ||
| replacement | |||||
|
10
|
10
5MT-25398-00-00 Balancer, Wheel (10G)10G UN |
5MT-25398-00-00 |
from US $7.65 |
||
|
11
|
11
4FM-25190-00-00 Gear Unit Assembly |
4FM-25190-00-00 |
from US $108.25 |
||
|
12
|
12
4FM-25181-01-00 Axle, Wheel |
4FM-25181-01-00 |
from US $71.91 |
||
| replacement | |||||
|
12
|
12
4FM-25181-10-00 Axle, Wheel |
4FM-25181-10-00 |
from US $71.91 |
||
|
13
|
13
903-87220-0T-00
Collar, Wheel
|
903-87220-0T-00 |
— | ||
| replacement | |||||
|
13
|
13
903-87220-16-00 Collar, Wheel |
903-87220-16-00 |
from US $12.47 |
||
