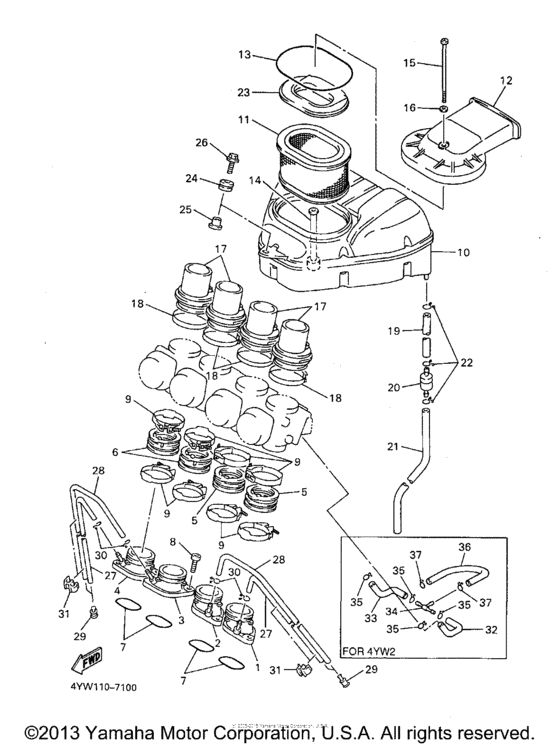

Intake Diagram Yamaha YZF1000R Thunderace
- Year
- 1997
- Model code
- 4YW2
- Sales region
- United States (California)
- Engine Capacity
- 1000
- Model
- YZF1000R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SV-13586-00-00 Joint, Carburetor 1 |
4SV-13586-00-00 |
US $84.55 |
||
|
2
|
2
4SV-13586-10-00
Joint, Carburetor 1
|
4SV-13586-10-00 |
— | ||
|
3
|
3
4SV-13596-10-00
Joint, Carburetor 2
|
4SV-13596-10-00 |
— | ||
|
4
|
4
4SV-13596-00-00
Joint, Carburetor 2
|
4SV-13596-00-00 |
— | ||
|
5
|
5
3GM-13597-00-00 Joint, Carburetor 3 |
3GM-13597-00-00 |
from US $29.09 |
||
|
6
|
6
3GM-13598-00-00 Joint, Carburetor 4 |
3GM-13598-00-00 |
from US $29.09 |
||
|
7
|
7
932-10445-45-00 O-Ring |
932-10445-45-00 |
from US $6.52 |
||
|
8
|
8
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
9
|
9
904-50570-34-00
Hose Clamp
|
904-50570-34-00 |
— | ||
| replacement | |||||
|
9
|
9
904-50570-16-00 Hose Clamp |
904-50570-16-00 |
from US $7.08 |
||
|
10
|
10
4SV-14401-00-00 Air Cleaner Case Assembly |
4SV-14401-00-00 |
US $164.90 |
||
|
11
|
11
3GM-14451-00-00 Element, Air Cleaner |
3GM-14451-00-00 |
from US $56.56 |
||
|
12
|
12
4SV-14422-00-00 Cap, Cleaner Case 2 |
4SV-14422-00-00 |
US $40.77 |
||
|
13
|
13
36F-14457-00-00
Seal
|
36F-14457-00-00 |
— | ||
|
14
|
14
3GM-14443-00-00 Collar |
3GM-14443-00-00 |
US $30.89 |
||
|
15
|
15
98511-06140-00
Screw, Pan Head
|
98511-06140-00 |
— | ||
| replacement | |||||
|
15
|
15
98517-06140-00
Screw, Pan Head
|
98517-06140-00 |
— | ||
|
16
|
16
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
17
|
17
4SV-14453-00-00 Joint, Air Cleaner 1 |
4SV-14453-00-00 |
US $11.20 |
||
|
18
|
18
90450-75083-00 Hose Clamp Assy |
90450-75083-00 |
US $8.96 |
||
|
19
|
19
90445-11452-00 Hose (L100) |
90445-11452-00 |
from US $3.68 |
||
| replacement | |||||
|
19
|
19
90445-11293-00 Hose (L100) |
90445-11293-00 |
from US $3.68 |
||
|
20
|
20
4X7-2149Y-00-00 Filter Assy |
4X7-2149Y-00-00 |
from US $11.33 |
||
|
21
|
21
90445-114E2-00 Hose (L700) |
90445-114E2-00 |
from US $12.61 |
||
| replacement | |||||
|
21
|
21
904-45110-83-00 Hose (L800) |
904-45110-83-00 |
from US $12.61 |
||
|
22
|
22
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
22
|
22
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
22
|
22
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
23
|
23
3GM-14432-00-00 Silencer, Inner |
3GM-14432-00-00 |
US $32.02 |
||
|
24
|
24
90480-12314-00 Grommet |
90480-12314-00 |
from US $1.28 |
||
| replacement | |||||
|
24
|
24
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.28 |
||
|
25
|
25
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
25
|
25
903-87061-59-00 Collar |
903-87061-59-00 |
from US $1.56 |
||
|
26
|
26
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
27
|
27
90445-09496-00 Hose (L685) |
90445-09496-00 |
from US $16.86 |
||
| replacement | |||||
|
27
|
27
90445-090G9-00 Hose (L685) |
90445-090G9-00 |
from US $16.86 |
||
|
28
|
28
90445-090E5-00 Hose (L685) |
90445-090E5-00 |
from US $16.86 |
||
| replacement | |||||
|
28
|
28
90445-090G9-00 Hose (L685) |
90445-090G9-00 |
from US $16.86 |
||
|
29
|
29
90338-05240-00
Plug(4Jh)
|
90338-05240-00 |
— | ||
|
30
|
30
90467-08017-00 Clip |
90467-08017-00 |
from US $1.56 |
||
|
31
|
31
90468-15139-00 Clip |
90468-15139-00 |
from US $1.70 |
||
|
32
|
32
4YW-14465-00-00
Pipe
CA |
4YW-14465-00-00 |
— | ||
|
33
|
33
4YW-14466-00-00
Pipe
CA |
4YW-14466-00-00 |
— | ||
|
34
|
34
90413-08012-00 Way 3CA |
90413-08012-00 |
from US $4.96 |
||
|
35
|
35
904-67100-08-00
Clip
CA |
904-67100-08-00 |
— | ||
| replacements | |||||
|
35
|
35
90467-100A1-00 ClipCA |
90467-100A1-00 |
from US $1.28 |
||
|
35
|
35
90467-11106-00 ClipCA |
90467-11106-00 |
from US $1.28 |
||
|
36
|
36
4YW-1443J-00-00
Pipe
CA |
4YW-1443J-00-00 |
— | ||
|
37
|
37
904-67100-08-00
Clip
CA |
904-67100-08-00 |
— | ||
| replacements | |||||
|
37
|
37
90467-100A1-00 ClipCA |
90467-100A1-00 |
from US $1.28 |
||
|
37
|
37
90467-11106-00 ClipCA |
90467-11106-00 |
from US $1.28 |
||
