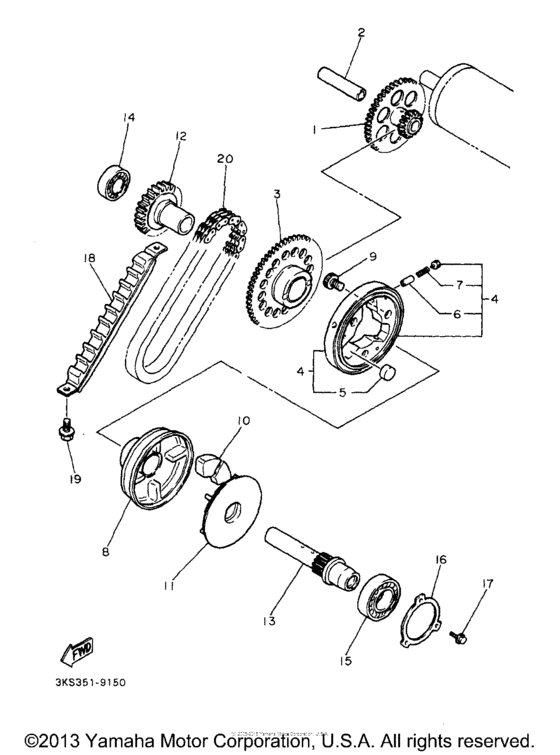

Starter Diagram Yamaha YZF1000R Thunderace
- Year
- 1997
- Model code
- 4YW2
- Sales region
- United States (California)
- Engine Capacity
- 1000
- Model
- YZF1000R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GM-15512-01-00 Gear, Idler 1 |
3GM-15512-01-00 |
US $183.15 |
||
|
2
|
2
51Y-15521-00-00 Shaft 1 |
51Y-15521-00-00 |
US $26.57 |
||
|
3
|
3
4BH-15517-00-00
Gear, Idler 2
|
4BH-15517-00-00 |
— | ||
|
4
|
4
3GM-15580-00-00
Starter Clutch Outer Assembly
|
3GM-15580-00-00 |
— | ||
|
5
|
5
93615-12088-00 Pin, Dowel |
93615-12088-00 |
from US $6.94 |
||
|
6
|
6
1J7-15583-01-00 Cap, Starter Clutch Spring |
1J7-15583-01-00 |
from US $11.33 |
||
|
7
|
7
905-01046-23-00 Spring, Compression |
905-01046-23-00 |
from US $3.68 |
||
|
8
|
8
3GM-15524-00-00
Wheel, Starter
|
3GM-15524-00-00 |
— | ||
|
9
|
9
90110-08177-00 Bolt, Hexagon Socket Head |
90110-08177-00 |
from US $2.09 |
||
|
10
|
10
4H7-16155-01-00 Absorber 1 |
4H7-16155-01-00 |
from US $6.38 |
||
|
11
|
11
3GM-15689-00-00
Retainer
|
3GM-15689-00-00 |
— | ||
|
12
|
12
3GM-15519-00-00
Sprocket, Starter 2
|
3GM-15519-00-00 |
— | ||
|
13
|
13
3GM-15522-00-00
Shaft 2
|
3GM-15522-00-00 |
— | ||
|
14
|
14
93306-20321-00 Bearing |
93306-20321-00 |
from US $26.35 |
||
| replacement | |||||
|
14
|
14
933-06203-27-00 Bearing (7X9) |
933-06203-27-00 |
from US $26.35 |
||
|
15
|
15
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $16.50 |
||
|
16
|
16
1AE-15381-00-00 Plate, Bearing Cover |
1AE-15381-00-00 |
US $15.59 |
||
|
17
|
17
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
17
|
17
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.41 |
||
|
18
|
18
4SV-11474-01-00
Guide, Upper
|
4SV-11474-01-00 |
— | ||
|
19
|
19
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.07 |
||
|
20
|
20
4SV-11456-00-00
Chain, Primary
|
4SV-11456-00-00 |
— | ||
