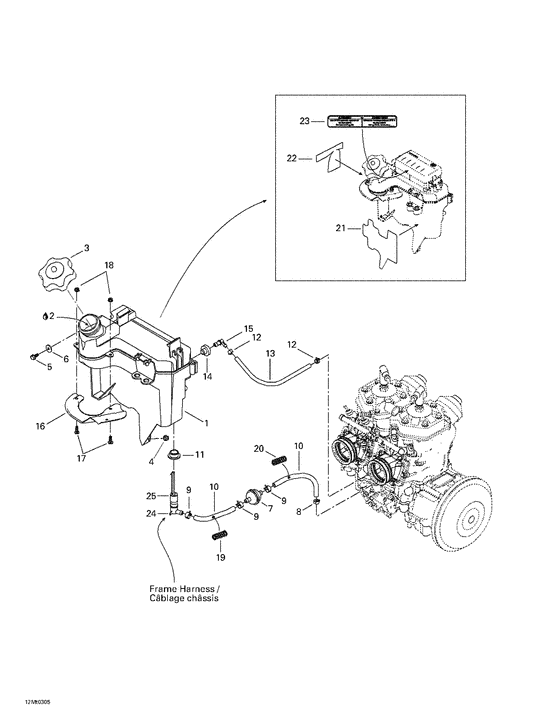

02- oil tank Diagram Bombardier Legend
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
413803000
Huile 2t 3x1g min+r* oil 2t 3x1g mineral
|
413803000 |
— | ||
|
|
413803200
Huile 2t baril * oil 2t drum mineral
|
413803200 |
— | ||
|
|
413711000
Huile xps synth*oil-xps synth.
|
413711000 |
— | ||
| replacement | |||||
|
|
293600046
Huile 2t 3x1g synth *oil 2t 3x1g synth
|
293600046 |
— | ||
|
|
413710700
Huile inj.2stro*oil-inj2stroke
|
413710700 |
— | ||
| replacement | |||||
|
|
293600047
Huile 2t baril * oil 2t drum synth
|
293600047 |
— | ||
|
|
293600045
Huile 2t 12x1 synth * oil 2t 12x1 synth
Bombardier-Rotax Formula XP-S-II; |
293600045 |
— | ||
|
|
413802900
Huile 2t 12x1 min+r* oil 2t 12x1 mineral
|
413802900 |
— | ||
| replacement | |||||
|
|
293600117 Huile 2t 12x1 *oil 2t 12x1 mineral |
293600117 |
US $15.64 |
||
|
1
|
1
519000049
Reservoir huile*tank-oil
|
519000049 |
— | ||
|
2
|
2
413803100
Huile pr+-m+l * oil premix 12x500ml
|
413803100 |
— | ||
|
3
|
3
519000042 Bouchon *cap |
519000042 |
US $42.81 |
||
|
4
|
4
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
5
|
5
210261280 Screw-forming hex.hd.fl.gm6174m |
210261280 |
US $1.79 |
||
|
6
|
6
250200000
Washer-lock serrated int.& ext.m6
|
250200000 |
— | ||
| replacement | |||||
|
6
|
6
250200041 Washer-lock serrated int.ext.m6 |
250200041 |
US $14.80 |
||
|
7
|
7
414536500 Filtre huile *filter-oil |
414536500 |
US $4.56 |
||
|
8
|
8
414420700 Bride a ressort*clamp-spring |
414420700 |
US $9.50 |
||
|
9
|
9
414415200 Bride a ressort*clamp-spring |
414415200 |
US $11.70 |
||
|
10
|
10
415080700 Boyau polyure *hose*polyurethane |
415080700 |
US $30.51 |
||
|
11
|
11
570023000 Bague isolante *ring-insulated |
570023000 |
US $36.20 |
||
|
12
|
12
414554800 Bride a ressort*clamp-spring |
414554800 |
US $11.70 |
||
|
13
|
13
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
14
|
14
570135100
Passe-fils *grommet
|
570135100 |
— | ||
| replacement | |||||
|
14
|
14
709200285
GROMMET
|
709200285 |
— | ||
|
15
|
15
414580700 Raccord male *connector-male |
414580700 |
US $26.60 |
||
|
16
|
16
519000043
Deflecteur *deflector
|
519000043 |
— | ||
|
17
|
17
208651641
Screw-pan hd.ph.din.7985a
|
208651641 |
— | ||
|
18
|
18
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
19
|
19
519000062
Ressort *spring
|
519000062 |
— | ||
|
20
|
20
519000063 Ressort *spring |
519000063 |
US $7.09 |
||
|
21
|
21
519000059 Feuille reflect*reflect. sheet |
519000059 |
US $9.13 |
||
|
22
|
22
519000051 Feuille reflect*sheet-reflect |
519000051 |
US $8.13 |
||
|
23
|
23
516001794
Decalque aver. *warning decal.
|
516001794 |
— | ||
|
24
|
24
414681800 Conct.niveau *switch-level |
414681800 |
US $29.53 |
||
|
25
|
25
414681900 Flotteur huile *float |
414681900 |
US $11.66 |
||
| replacements | |||||
|
25
|
25
278001013 Joint de fil *seal-wire |
278001013 |
from US $4.80 |
||
|
25
|
25
515176327 Conct.niveau *switch-level |
515176327 |
US $64.23 |
||
|
25
|
25
278001014 Cosse femelle *terminal-femal |
278001014 |
from US $6.09 |
||
|
25
|
25
409209500 Logement femel.*housing-femal. |
409209500 |
from US $15.23 |
||
