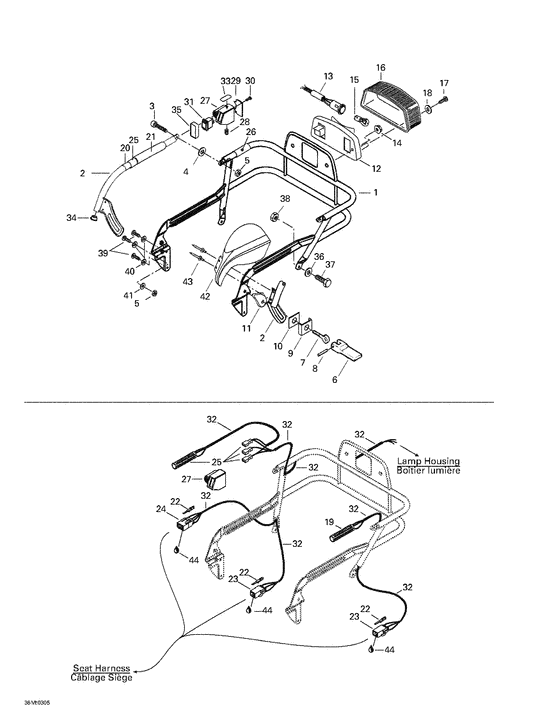

09- luggage rack Diagram Bombardier Legend
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
415050300
Gaine poignee *grip-handle
Grand Touring SE 800 SDI.; |
415050300 |
— | ||
|
|
517300900
Bras gauche pei*arm-lh paint
Grand Touring SE 800 SDI.; |
517300900 |
— | ||
|
|
572089500
Protecteur ga. *protector-lh.
Grand Touring SE 800 SDI.; |
572089500 |
— | ||
|
1
|
1
511000124
Porte-bagage p.*rack-paint
Grand Touring SE 800 SDI.; |
511000124 |
— | ||
|
2
|
2
511000012
Bras droit pei.*arm-rh.paint
Grand Touring SE 800 SDI.; |
511000012 |
— | ||
|
3
|
3
205061644 Screw-socket hd.din.912Grand Touring SE 800 SDI.; |
205061644 |
US $11.10 |
||
|
4
|
4
234062100 Washer-flat plastic din.9021bGrand Touring SE 800 SDI.; |
234062100 |
US $16.20 |
||
|
5
|
5
232561414 Nut-stop elastic din.985Grand Touring SE 800 SDI.; |
232561414 |
US $7.10 |
||
|
6
|
6
572038200
Levier blocage *lever-lock
Grand Touring SE 800 SDI.; |
572038200 |
— | ||
|
7
|
7
517250100 Vis a oeillet *eye-boltGrand Touring SE 800 SDI.; |
517250100 |
US $21.39 |
||
|
8
|
8
414821400 Tige *pinGrand Touring SE 800 SDI.; |
414821400 |
US $9.25 |
||
|
9
|
9
511000226
Guide *guide
Grand Touring SE 800 SDI.; |
511000226 |
— | ||
|
10
|
10
570063800
Entretoise *spacer
Grand Touring SE 800 SDI.; |
570063800 |
— | ||
|
11
|
11
572088900
Entretoise *spacer
Grand Touring SE 800 SDI.; |
572088900 |
— | ||
|
12
|
12
515175397 Housing - tail lampGrand Touring SE 800 SDI.; |
515175397 |
US $49.93 |
||
|
13
|
13
511000224
Raccord *socket
Grand Touring SE 800 SDI.; |
511000224 |
— | ||
|
14
|
14
233251414 Nut-flange elastic din.6926Grand Touring SE 800 SDI.; |
233251414 |
US $5.36 |
||
|
15
|
15
410504100
Ampoule feu arr*bulb-tail lamp
Grand Touring SE 800 SDI.; |
410504100 |
— | ||
| replacement | |||||
|
15
|
15
520000758 Ampoule *bulbGrand Touring SE 800 SDI.; |
520000758 |
US $160.50 |
||
|
16
|
16
414513700 Lens 21/68Grand Touring SE 800 SDI.; |
414513700 |
US $31.06 |
||
|
17
|
17
209632540 Screw-tapp.pan.hd.ph.din.7981cGrand Touring SE 800 SDI.; |
209632540 |
US $1.31 |
||
|
18
|
18
414516400 WasherGrand Touring SE 800 SDI.; |
414516400 |
US $0.82 |
||
|
19
|
19
515175710
Element chauff.*heated film
Grand Touring SE 800 SDI.; |
515175710 |
— | ||
|
20
|
20
414988700
Feuille reflect*sheet-reflect.
Grand Touring SE 800 SDI.; |
414988700 |
— | ||
|
21
|
21
415050200 Gaine poignee *grip-handleGrand Touring SE 800 SDI.; |
415050200 |
US $11.02 |
||
|
22
|
22
515175232 Cosse male *terminal-maleGrand Touring SE 800 SDI.; |
515175232 |
US $20.10 |
||
|
23
|
23
515175494 Logement male *housing-maleGrand Touring SE 800 SDI.; |
515175494 |
US $90.60 |
||
|
24
|
24
515175846 Logement *housingGrand Touring SE 800 SDI.; |
515175846 |
US $9.67 |
||
|
25
|
25
515175882
New Genuine Part
Grand Touring SE 800 SDI.; |
515175882 |
— | ||
|
26
|
26
415050400
Gaine poignee *grip-handle
Grand Touring SE 800 SDI.; |
415050400 |
— | ||
|
27
|
27
572089200
Logement inter.*housing-switch
Grand Touring SE 800 SDI.; |
572089200 |
— | ||
|
28
|
28
206580890 Screw-set socket din.916Grand Touring SE 800 SDI.; |
206580890 |
US $21.80 |
||
|
29
|
29
572089300
Plaque *plate
Grand Touring SE 800 SDI.; |
572089300 |
— | ||
|
30
|
30
732601255
Screw-forming pan hd.type25
Grand Touring SE 800 SDI.; |
732601255 |
— | ||
| replacement | |||||
|
30
|
30
250000022 Screw-thread cut.ph.pan type25Grand Touring SE 800 SDI.; |
250000022 |
US $19.60 |
||
|
31
|
31
511000001
Interrupt.basc.*switch-rocker
Grand Touring SE 800 SDI.; |
511000001 |
— | ||
|
32
|
32
515175332 Gaine low temp.vinylGrand Touring SE 800 SDI.; |
515175332 |
US $18.78 |
||
|
33
|
33
418001800 Decal.poig.chau*decal-heatgripGrand Touring SE 800 SDI.; |
418001800 |
US $15.27 |
||
|
34
|
34
572110800 Bouchon noir *cap-blackGrand Touring SE 800 SDI.; |
572110800 |
US $6.26 |
||
|
35
|
35
511000002
Protect.interr.*protector-switch
Grand Touring SE 800 SDI.; |
511000002 |
— | ||
|
36
|
36
234081410 Washer-flat din.125aGrand Touring SE 800 SDI.; |
234081410 |
US $10.70 |
||
|
37
|
37
207182044 Screw-hex.cap din.933Grand Touring SE 800 SDI.; |
207182044 |
US $9.50 |
||
|
38
|
38
233281414 Nut-flange elastic din.6926Grand Touring SE 800 SDI.; |
233281414 |
US $18.50 |
||
|
39
|
39
210261680 Screw-forming hex.hd.fl.gm6174mGrand Touring SE 800 SDI.; |
210261680 |
US $13.90 |
||
|
40
|
40
234161601 Washer-lock helical din.127b-a2Grand Touring SE 800 SDI.; |
234161601 |
US $7.40 |
||
|
41
|
41
391302100 Washer-flat yicGrand Touring SE 800 SDI.; |
391302100 |
US $10 |
||
|
42
|
42
572089400
Protecteur dr. *protector-rh.
Grand Touring SE 800 SDI.; |
572089400 |
— | ||
|
43
|
43
293150108 Rivet-pop 3/16 *pop rivet 3/16Grand Touring SE 800 SDI.; |
293150108 |
US $1.53 |
||
|
44
|
44
293550004 Graisse dielect*grease-dielect dc4Grand Touring SE 800 SDI.; |
293550004 |
US $59.94 |
||
