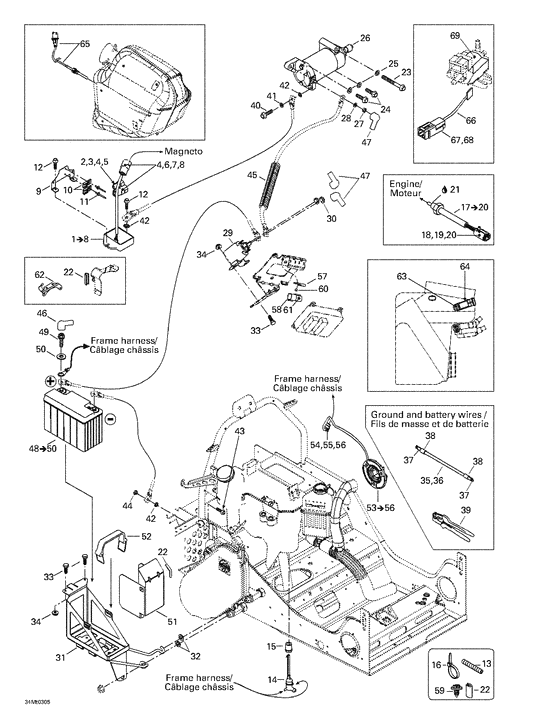

10- battery, starter and accessories Diagram Bombardier Legend
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
278001776
Cosse plate p/t*terminal-flat
|
278001776 |
— | ||
|
|
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
|
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
|
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
|
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
|
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
|
278001683
Cosse 45 p/t *terminal-45 deg.
|
278001683 |
— | ||
|
|
409901800 Tubing - insulating 13 mm |
409901800 |
US $97.10 |
||
|
|
278001684
Cosse 90 p/t *terminal-90 deg.
|
278001684 |
— | ||
|
|
515175332 Gaine low temp.vinyl |
515175332 |
US $18.78 |
||
|
|
278001685
Cosse plate g/t*terminal-flat
|
278001685 |
— | ||
|
|
515175314
Gaine basse te*gaine low temp.vinyl
|
515175314 |
— | ||
|
|
278001686
Cosse 45 g/t *terminal-45 deg.
|
278001686 |
— | ||
|
|
278001687
Cosse 90 g/t *terminal-90 deg.
|
278001687 |
— | ||
|
|
278001688 Cosse plate *terminal-flat |
278001688 |
US $3.89 |
||
|
1
|
1
515175717
Regu. tension *regulator-volt
Includes 1 - 8.; |
515175717 |
— | ||
| replacement | |||||
|
1
|
1
515176243 Regu. tension *regulator-voltIncludes 1 - 8.; |
515176243 |
US $354.93 |
||
|
2
|
2
409206900 Logement male *housing-male |
409206900 |
US $10.85 |
||
|
3
|
3
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
4
|
4
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
5
|
5
409207500 Verrou male *lock-male |
409207500 |
from US $4.23 |
||
|
6
|
6
278001477 Bloc 4 circ.fem*housing-tab |
278001477 |
US $62.27 |
||
|
7
|
7
515175568 Terminal male *treminal-male |
515175568 |
US $9.76 |
||
|
8
|
8
278001478 Cale 4 circ.mal*wedge-4 ways m |
278001478 |
US $28.80 |
||
|
9
|
9
515175923
Support logem. *support housing
|
515175923 |
— | ||
|
10
|
10
270000141 Clip *clip |
270000141 |
US $59.50 |
||
|
12
|
12
290841543 Vis taptite *screw-taptite |
290841543 |
US $1.96 |
||
| replacement | |||||
|
12
|
12
420841543 Screw-taptite |
420841543 |
US $81.30 |
||
|
13
|
13
409901700 Gaine 09mm i.d.*tubing-09mm i.d. |
409901700 |
US $83.80 |
||
|
14
|
14
414681800 Conct.niveau *switch-level |
414681800 |
US $29.53 |
||
|
15
|
15
414681900 Flotteur huile *float |
414681900 |
US $11.66 |
||
| replacements | |||||
|
15
|
15
278001013 Joint de fil *seal-wire |
278001013 |
from US $4.80 |
||
|
15
|
15
515176327 Conct.niveau *switch-level |
515176327 |
US $64.23 |
||
|
15
|
15
278001014 Cosse femelle *terminal-femal |
278001014 |
from US $6.09 |
||
|
15
|
15
409209500 Logement femel.*housing-femal. |
409209500 |
from US $15.23 |
||
|
16
|
16
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
17
|
17
420664500
Sensor-temp.cooling
Includes 17 - 20.; |
420664500 |
— | ||
| replacement | |||||
|
17
|
17
515176043
Capteur temp. *sensor-temp.
Includes 17 - 20.; |
515176043 |
— | ||
|
18
|
18
278000739 Bloc 4 circ.mal*housing-tab |
278000739 |
US $21.42 |
||
|
19
|
19
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
20
|
20
278000732
Plaque masse *plate-ground
|
278000732 |
— | ||
|
21
|
21
293800018 Scellant tuyau *sealant-pipe |
293800018 |
US $38.71 |
||
|
22
|
22
271000110 Moul.protect. *trim-protect. |
271000110 |
US $22.93 |
||
|
23
|
23
207587544 Screw-hex.flange din.6921 s.grip |
207587544 |
US $40.65 |
||
|
24
|
24
207583044 Screw-hex.flange din.6921 s.grip |
207583044 |
US $21.90 |
||
|
25
|
25
250200008 Washer-flat din.125a teflon-coat |
250200008 |
US $24.55 |
||
|
26
|
26
515175843
Demarreur *starter
|
515175843 |
— | ||
| replacement | |||||
|
26
|
26
515176133 Demarreur *starter |
515176133 |
US $563.96 |
||
|
27
|
27
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
28
|
28
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
29
|
29
710000111
Solenoide dem. *relay-starter
|
710000111 |
— | ||
| replacement | |||||
|
29
|
29
515176011 Solenoide dem. *relay-starter |
515176011 |
US $69.21 |
||
|
30
|
30
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
31
|
31
515175718
Supp.batterie *support-batt.
|
515175718 |
— | ||
|
32
|
32
503175800 Rondelle *washer |
503175800 |
US $42.30 |
||
|
33
|
33
207151444 Screw-hex.cap din.933 |
207151444 |
US $11.20 |
||
|
34
|
34
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
35
|
35
278001680
Cable batt.noir*cable-batt.ground
|
278001680 |
— | ||
|
36
|
36
278001690
Cable batt.roug*cable-batt.red
|
278001690 |
— | ||
|
37
|
37
278001682
Cosse plate p/t*terminal-flat
|
278001682 |
— | ||
|
38
|
38
278001692
Gaine protect. *tubing-prot.
|
278001692 |
— | ||
| replacement | |||||
|
38
|
38
710000483 Gaine thermo. *shrink tubing |
710000483 |
US $75.45 |
||
|
39
|
39
529035730
Pince sertissag*plier-crimp
|
529035730 |
— | ||
|
40
|
40
207361644 Screw-hex.scotch grip din.933 |
207361644 |
US $28.50 |
||
|
41
|
41
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
42
|
42
250200000
Washer-lock serrated int.& ext.m6
|
250200000 |
— | ||
| replacement | |||||
|
42
|
42
250200041 Washer-lock serrated int.ext.m6 |
250200041 |
US $14.80 |
||
|
43
|
43
207161644 Screw-hex.cap din.933 |
207161644 |
US $9.50 |
||
|
44
|
44
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
45
|
45
409901700 Gaine 09mm i.d.*tubing-09mm i.d. |
409901700 |
US $83.80 |
||
|
46
|
46
570151000 Capuchon prot. *cap-protection |
570151000 |
US $17.82 |
||
|
47
|
47
278001771 Capuchon batt. *cap-wire batt. |
278001771 |
US $29.15 |
||
|
48
|
48
515175642 Batterie 18 amp*battery-18 ampIncludes 48 - 50.; |
515175642 |
US $152.01 |
||
| replacement | |||||
|
48
|
48
410301203 Batterie ytx20lbs*battery18amps(wet)Includes 48 - 50.; |
410301203 |
US $190.18 |
||
|
49
|
49
207151260 Screw-hex.cap din.933a2 |
207151260 |
US $23 |
||
|
50
|
50
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
51
|
51
515175643 Deflecteur *deflector |
515175643 |
US $14.67 |
||
|
52
|
52
515175475
Sangle batterie*strap-battery
|
515175475 |
— | ||
|
53
|
53
504152173 Flasque ind.vit*flange-speed.Includes 53 - 56.; |
504152173 |
US $84.03 |
||
|
54
|
54
515175671 Logement femel.*housing-female |
515175671 |
US $11.49 |
||
|
55
|
55
515175676 Verrou femelle *lock-female |
515175676 |
US $7.24 |
||
|
56
|
56
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
57
|
57
270000141 Clip *clip |
270000141 |
US $59.50 |
||
|
58
|
58
515175668 Bloc 6 circ.fem*housing-tab |
515175668 |
US $16.92 |
||
|
59
|
59
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
60
|
60
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
61
|
61
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
62
|
62
515175254
Support cablage*support-cable
|
515175254 |
— | ||
|
63
|
63
414745900 Screw-tuflock phillips |
414745900 |
US $21.80 |
||
|
64
|
64
420274055
Capteur pressio*temperature sensor
|
420274055 |
— | ||
|
65
|
65
515175960
Capteur temp. *sensor-temp.
|
515175960 |
— | ||
| replacement | |||||
|
65
|
65
515176490
Sensor-temp. exh.
|
515176490 |
— | ||
|
66
|
66
515175976
Element chauff.*heated film
|
515175976 |
— | ||
|
67
|
67
515175654 Logement male *housing-male |
515175654 |
US $9.76 |
||
|
68
|
68
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
69
|
69
512059809
Support *support
|
512059809 |
— | ||
