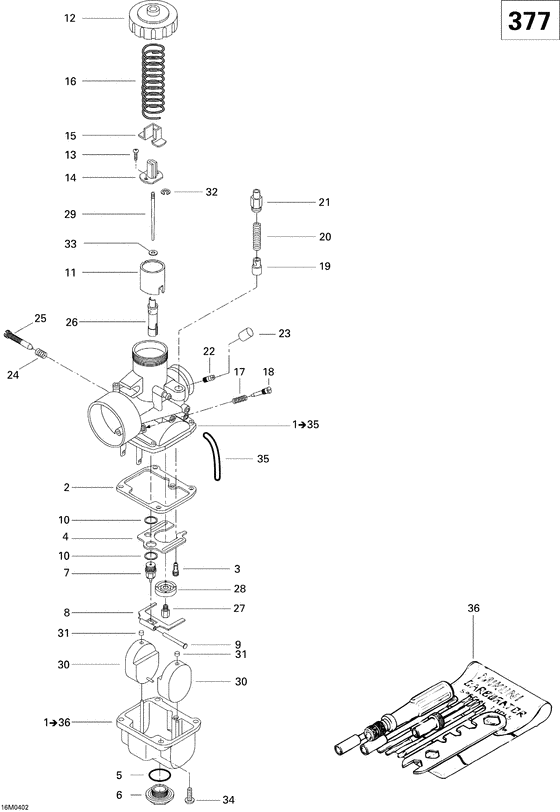

02- carburetors (380F) Diagram Bombardier MX Z
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
403138767
Carburateur *carburator
Includes Items 1 to 35; |
403138767 |
— | ||
|
2
|
2
404104200 Joint *gasket |
404104200 |
US $32.30 |
||
|
3
|
3
404109100 Gicleur ralenti*jet-pilot 40 |
404109100 |
US $29.15 |
||
|
4
|
4
404109600
Chicane *baffle
|
404109600 |
— | ||
|
5
|
5
404107300 Joint torique *o-ring |
404107300 |
US $39.60 |
||
|
6
|
6
404107400 Vis bouchon *screw-drain plug |
404107400 |
US $22.39 |
||
|
7
|
7
404147500 Pointeau vs 1.2*valve needle |
404147500 |
US $60.13 |
||
|
8
|
8
404107600 Levier flotteur*lever-float |
404107600 |
US $22.39 |
||
|
9
|
9
404103300 Goupille levier*pin-lever |
404103300 |
US $41.90 |
||
|
10
|
10
404101600 Rondelle siege *washer-seat |
404101600 |
US $19.45 |
||
|
11
|
11
404128600 Tiroir acc.2.0 *piston-val.2.0 |
404128600 |
US $121.33 |
||
|
12
|
12
404103700 Couvercle carb.*top-mix.chamb. |
404103700 |
US $29.53 |
||
|
13
|
13
404121300 Vis w.rondelle*screw-with washer |
404121300 |
US $27.90 |
||
|
14
|
14
404161987 Joint *packing |
404161987 |
US $14.57 |
||
|
15
|
15
404122100 Couvercle *cover |
404122100 |
US $18.55 |
||
|
16
|
16
404154800 Ressort *spring |
404154800 |
US $23.41 |
||
|
17
|
17
404101800 Ressort *spring |
404101800 |
US $21.50 |
||
|
18
|
18
404102300 Screw-air |
404102300 |
US $14.57 |
||
|
19
|
19
404161986 Plongeur ass. *plunger-assy |
404161986 |
US $18.55 |
||
|
20
|
20
404127400 Ressort *spring |
404127400 |
US $21.18 |
||
|
21
|
21
404161100
Guide *guide holder
|
404161100 |
— | ||
|
22
|
22
404153400 Raccord *nipple |
404153400 |
US $12.99 |
||
|
23
|
23
404156600 Capuchon *cap |
404156600 |
US $15.90 |
||
|
24
|
24
404101700 Ressort *spring |
404101700 |
US $27.90 |
||
|
25
|
25
404109700 Vis *screw-idle speed |
404109700 |
US $18.55 |
||
|
26
|
26
404110700
Gicleur aiguil.*jet needle
|
404110700 |
— | ||
|
27
|
27
404119500 Gicleur mj 185 *jet-main 185 |
404119500 |
US $5.36 |
||
|
28
|
28
404110900
Bague chicane *ring-baffle
|
404110900 |
— | ||
|
29
|
29
404162056
Aiguille *needle
|
404162056 |
— | ||
|
31
|
31
404105800 Capuchon *cap |
404105800 |
US $8.36 |
||
|
32
|
32
404152400 Rondelle e *ring-e |
404152400 |
US $18.30 |
||
|
33
|
33
404117000 Joint tampon *packing |
404117000 |
US $21.70 |
||
|
34
|
34
404102000 Screw-w/lock *screw-w/lockwasher |
404102000 |
US $19.45 |
||
|
35
|
35
404161851 Durite *hose |
404161851 |
US $16.29 |
||
|
36
|
36
404112000 Trousse outils *tool kit |
404112000 |
US $79.53 |
