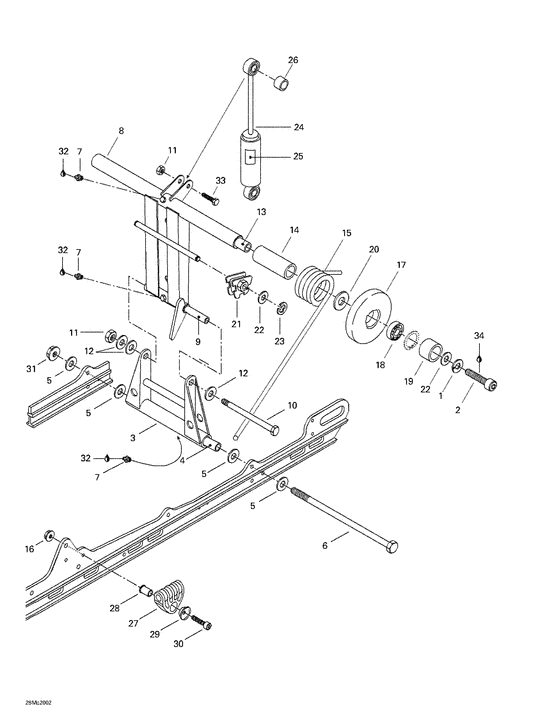

08- rear arm Diagram Bombardier MX Z
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
572030900 Came reglage dr*cam-adjust.rh. |
572030900 |
US $21.39 |
||
|
|
503189355
Ressort ga.pein*spring-lh.p.
|
503189355 |
— | ||
|
1
|
1
234101601 Washer-lock helical din.127b-a2 |
234101601 |
US $7.40 |
||
|
2
|
2
205003544 Screw-socket hd.din.912 |
205003544 |
US $21.80 |
||
|
3
|
3
503169200
Jumelle *arm-pivot weld.
|
503169200 |
— | ||
| replacement | |||||
|
3
|
3
503191372 Jumelle peinte *arm-pivot p. |
503191372 |
US $110.13 |
||
|
4
|
4
503154703
Axe inf. jumel.*axle-piv.lower
|
503154703 |
— | ||
|
5
|
5
224081201 Washer-flat |
224081201 |
US $19.60 |
||
|
6
|
6
732601198
Boulon 248mm *bolt 248mm
|
732601198 |
— | ||
|
7
|
7
408200700 Graisseur *grease fitting |
408200700 |
US $46.60 |
||
|
8
|
8
503151200
Bras arriere *arm-rear
|
503151200 |
— | ||
|
9
|
9
503144300 Axe sup. jumel.*axle-piv.upper |
503144300 |
US $11 |
||
|
10
|
10
732601197 Boulon court *bolt-short |
732601197 |
US $14.77 |
||
|
11
|
11
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
12
|
12
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
13
|
13
503151400
Axe transv.arr.*shaft-cross rr
|
503151400 |
— | ||
|
14
|
14
572047800 Douille *bushing |
572047800 |
US $5.83 |
||
|
15
|
15
503189354
Ressort dr.pein*spring-rh.p.
|
503189354 |
— | ||
|
16
|
16
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
17
|
17
572094300 Roue support *wheel-idlerIncludes 17 - 18.; |
572094300 |
US $45.90 |
||
|
18
|
18
405404600 Roulement bille*ball bearing |
405404600 |
US $23.41 |
||
|
19
|
19
503154200
Entretoise *spacer
|
503154200 |
— | ||
|
20
|
20
503144900 Rondelle *washer |
503144900 |
US $18.35 |
||
|
21
|
21
572030800 Came reglage ga*cam-adjust.lh. |
572030800 |
US $21.39 |
||
|
22
|
22
234001410 Washer-flat din.125a |
234001410 |
US $16 |
||
|
23
|
23
371907100
Circlip "e" *circlip-"e
|
371907100 |
— | ||
|
24
|
24
860305000
Ens.amor.hpg ar*kit-shock hpg rear
Includes 24 - 26.; |
860305000 |
— | ||
|
25
|
25
516000182
Decalque h.p.g *decal-h.p.g.
|
516000182 |
— | ||
|
26
|
26
414802600 Coussinet *cushion |
414802600 |
US $26.50 |
||
|
27
|
27
503188933
Support ressort*support-spring
|
503188933 |
— | ||
| replacement | |||||
|
27
|
27
503189657 Support ressort*support-spring |
503189657 |
US $11.49 |
||
|
28
|
28
503188934 Axe guide ress.*axle-guide spring |
503188934 |
US $9.78 |
||
|
29
|
29
503188929 Coussinet reten*cushion-retain. |
503188929 |
US $4.40 |
||
|
30
|
30
205084544 Screw-socket hd.din.912 |
205084544 |
US $29.25 |
||
|
31
|
31
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
32
|
32
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
33
|
33
207084044 Screw-hex.cap din.931 |
207084044 |
US $14.80 |
||
|
34
|
34
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
