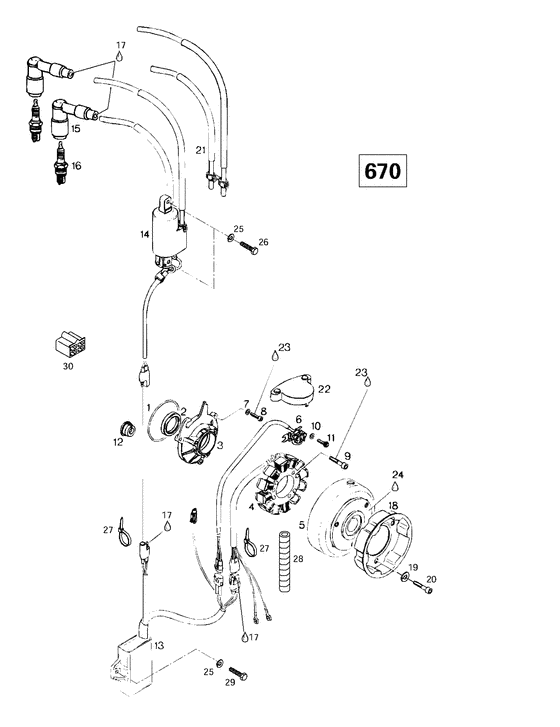

03- magneto 12v 220w (670) Diagram Bombardier MX Z
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420850430
Joint torique *o ring
MX Z 670.; |
420850430 |
— | ||
|
2
|
2
420930695 Anneau etanche *seal-oilMX Z 670.; |
420930695 |
US $33.61 |
||
|
3
|
3
420810265
Plateau armat. *plate-armat.
MX Z 670.; |
420810265 |
— | ||
|
4
|
4
410920200
New Genuine Part
Includes 4 - 6. MX Z 670.; |
410920200 |
— | ||
|
4
|
4
410919000
Plaque reacteur*plate-stator a
MX Z 670.; |
410919000 |
— | ||
|
5
|
5
410920300
Volant moteur
MX Z 670.; |
410920300 |
— | ||
|
6
|
6
410916700 Capteur ass. *pickup-assy.MX Z 670.; |
410916700 |
US $68.29 |
||
|
7
|
7
420945750 Rondelle-frein *washer-lock#5MX Z 670.; |
420945750 |
US $19.60 |
||
|
8
|
8
420941540 Screw-allen m5x20 din.6912MX Z 670.; |
420941540 |
US $20.25 |
||
|
9
|
9
420840886 Screw-cyl.m6x30 din 6912MX Z 670.; |
420840886 |
US $19.60 |
||
|
10
|
10
420827800 Rondelle *washerMX Z 670.; |
420827800 |
US $9.80 |
||
|
11
|
11
420840511 Screw-allen m5 x 16MX Z 670.; |
420840511 |
US $1.79 |
||
|
12
|
12
420960288
Passe-cable *grommet-cable
MX Z 670.; |
420960288 |
— | ||
|
13
|
13
410918900
Boite electron.*box-amplifier
MX Z 670.; |
410918900 |
— | ||
| replacements | |||||
|
13
|
13
409207300 Logement femel.*housing-femaleMX Z 670.; |
409207300 |
US $10.85 |
||
|
13
|
13
278000631 Cosse male *terminal-maleMX Z 670.; |
278000631 |
US $58.70 |
||
|
13
|
13
278000632 Cosse femelle *terminal-femalMX Z 670.; |
278000632 |
US $28.40 |
||
|
13
|
13
409207100 Verrou femelle *lock-femaleMX Z 670.; |
409207100 |
US $3.11 |
||
|
13
|
13
409207200 Verrou femelle *lock-femaleMX Z 670.; |
409207200 |
US $5.87 |
||
|
13
|
13
409207500 Verrou male *lock-maleMX Z 670.; |
409207500 |
from US $4.23 |
||
|
13
|
13
415085300
Module allumage*module-ignition
MX Z 670.; |
415085300 |
— | ||
|
13
|
13
409206900 Logement male *housing-maleMX Z 670.; |
409206900 |
US $10.85 |
||
|
13
|
13
409207400 Logement femel.*housing-femaleMX Z 670.; |
409207400 |
US $10.47 |
||
|
14
|
14
410920700
Bobine d'allumage
MX Z 670.; |
410920700 |
— | ||
|
15
|
15
414864000
Capuchon bougie*cap-spark plug
MX Z 670.; |
414864000 |
— | ||
| replacement | |||||
|
15
|
15
278000237
Capuchon bougie*cap-spark plug
MX Z 670.; |
278000237 |
— | ||
|
16
|
16
414961100
Bougie br9es *plug-spark br9es
MX Z 670.; |
414961100 |
— | ||
| replacement | |||||
|
16
|
16
219703120 SPARK PLUG, NGK BR9ESMX Z 670.; |
219703120 |
US $21.84 |
||
|
17
|
17
413706100
Graisse lith. *grease lith.
MX Z 670.; |
413706100 |
— | ||
|
18
|
18
420852416
Poulie demarrag*pull.-starting
MX Z 670.; |
420852416 |
— | ||
|
19
|
19
420945752 Washer-lock din.128MX Z 670.; |
420945752 |
US $19.60 |
||
|
20
|
20
420841520 Screw-allen m8 x 12MX Z 670.; |
420841520 |
US $19.60 |
||
|
21
|
21
420965034
Cable allumage *cable-ignition
MX Z 670.; |
420965034 |
— | ||
| replacement | |||||
|
21
|
21
278002198
Fil bougie *wire-spark plug
MX Z 670.; |
278002198 |
— | ||
|
22
|
22
420810700
Couvercle *cover-pick up
MX Z 670.; |
420810700 |
— | ||
|
23
|
23
413703000
Loctite 242 *loctite-242
MX Z 670.; |
413703000 |
— | ||
| replacement | |||||
|
23
|
23
293800060 Loctite 243 *loctite-243MX Z 670.; |
293800060 |
US $31.18 |
||
|
24
|
24
420899788
Loctite 648 *loctite 648
MX Z 670.; |
420899788 |
— | ||
| replacement | |||||
|
24
|
24
413711400
Loctite 648 *loctite-648
MX Z 670.; |
413711400 |
— | ||
|
25
|
25
224761110
Washer-lock thin black din.127a
MX Z 670.; |
224761110 |
— | ||
| replacement | |||||
|
25
|
25
234161471 Washer-lock black din.127bMX Z 670.; |
234161471 |
US $6.80 |
||
|
26
|
26
222062065
Screw-hex.cap din.933
MX Z 670.; |
222062065 |
— | ||
| replacement | |||||
|
26
|
26
207162044 Screw-hex.cap din.933MX Z 670.; |
207162044 |
US $9.90 |
||
|
27
|
27
414115200 Tie-rap 180 mmMX Z 670.; |
414115200 |
US $7 |
||
|
28
|
28
410904000
New Genuine Part
MX Z 670.; |
410904000 |
— | ||
|
29
|
29
222061665
Screw-hex.cap din.933
MX Z 670.; |
222061665 |
— | ||
| replacement | |||||
|
29
|
29
207161644 Screw-hex.cap din.933MX Z 670.; |
207161644 |
US $9.50 |
||
|
30
|
30
409204900 Logement femel.*housing-femaleMX Z 670.; |
409204900 |
US $35.45 |
||
