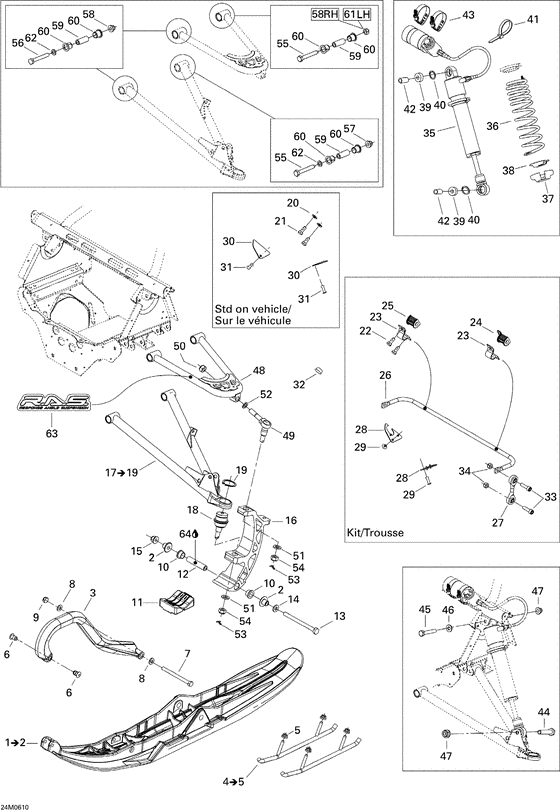

07- front suspension and ski Diagram Bombardier MX Z
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
505072004
Ski pilot5.7dr *pilotski5.7rh
Includes 1 to 2; |
505072004 |
— | ||
|
1
|
1
505072005
Ski pilot5.7ga.*pilotski5.7lh
Includes 1 to 2; |
505072005 |
— | ||
|
2
|
2
505071781 Coussinet *cushion |
505071781 |
US $18.16 |
||
|
3
|
3
505071674 Poignee jaune *handle-yellow |
505071674 |
US $33.61 |
||
|
4
|
4
860511900
Ens.2 lisse exp.*pilot ski exped.2runner
Includes 4 to 5; |
860511900 |
— | ||
|
5
|
5
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
6
|
6
505071812 Attache *retainer |
505071812 |
US $5.44 |
||
|
7
|
7
230080044 Screw-hex.cap din.931 |
230080044 |
US $19.60 |
||
|
8
|
8
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
9
|
9
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
10
|
10
505070954
Coussinet *cushion
|
505070954 |
— | ||
| replacement | |||||
|
10
|
10
505072690 Coussinet *bushing |
505072690 |
US $12.90 |
||
|
11
|
11
505071779 Butee de ski *stopper-ski |
505071779 |
US $14.67 |
||
|
12
|
12
505071271 Douille *bushing |
505071271 |
US $29.34 |
||
|
13
|
13
230003044
Screw-hex.cap m10 x 130 iso.4014
|
230003044 |
— | ||
| replacement | |||||
|
13
|
13
230100044 Screw-hex.cap iso.4017 |
230100044 |
US $14.05 |
||
|
14
|
14
732900049 Rondelle *washer |
732900049 |
US $14.50 |
||
|
15
|
15
732610084 Nut-flange flexloc m10 |
732610084 |
US $44.35 |
||
|
16
|
16
505071395 Jambe ski usine*ski leg mach. rh |
505071395 |
US $257.01 |
||
|
16
|
16
505071396 Jambe ski usine*ski leg mach. lh |
505071396 |
US $257.01 |
||
|
17
|
17
860512700 Bras inf.ass.d.*lower ars rh ass.Includes 17 to 19; |
860512700 |
US $232.53 |
||
|
17
|
17
860512600
Bras inf.ass.g.*lower ars lh ass.
Includes 17 to 19; |
860512600 |
— | ||
|
18
|
18
505071891
Joint rotule *ball joint
|
505071891 |
— | ||
|
19
|
19
293370035 Circlip *circlip |
293370035 |
US $34 |
||
|
20
|
20
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
21
|
21
250000118 Screw-hex.cap with nylon patch |
250000118 |
US $14.50 |
||
|
22
|
22
250000118 Screw-hex.cap with nylon patch |
250000118 |
US $14.50 |
||
|
23
|
23
506095800 Bride *clamp |
506095800 |
US $34.10 |
||
|
24
|
24
505071475 Coussinet stab.*bushing-torsion bar |
505071475 |
US $7 |
||
|
25
|
25
505071476 Coussinet stab.*bushing-torsion bar |
505071476 |
US $7 |
||
|
26
|
26
505071477 Stabilisateur p*stabilisator-p |
505071477 |
US $151.95 |
||
|
27
|
27
505071479
Joint rotule *ball joint
|
505071479 |
— | ||
|
28
|
28
505071253 Bouchon *plug-end |
505071253 |
US $3.18 |
||
|
29
|
29
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
30
|
30
505071131 Bouchon *aluminium plug |
505071131 |
US $7.33 |
||
|
31
|
31
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
32
|
32
572072100 Bouchon *cap |
572072100 |
US $62.60 |
||
|
33
|
33
205083044 Screw-socket hd.din.912 |
205083044 |
US $14.80 |
||
|
34
|
34
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
35
|
35
505070952
Amortisseur av.*shock-front rh
|
505070952 |
— | ||
|
35
|
35
505070953 Amortisseur av.*shock-front lh |
505070953 |
US $1,077.10 |
||
|
36
|
36
505071677 Ressort peint *spring-paint |
505071677 |
US $61.15 |
||
|
37
|
37
505071195
Butee ressort *stopper-spring
|
505071195 |
— | ||
|
38
|
38
505071199
Capuchon *cap
|
505071199 |
— | ||
|
39
|
39
414562900 Rotule radiale *joint-ball rad |
414562900 |
US $61.15 |
||
|
40
|
40
371910600 Circlip int. *circlip-int. |
371910600 |
US $17.70 |
||
|
41
|
41
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
42
|
42
506120200 Douille *bushing |
506120200 |
US $21.80 |
||
|
43
|
43
408801900 Bride serrage *clamp-gear |
408801900 |
US $50.85 |
||
|
44
|
44
207006044 Screw-hex.cap iso.4014 |
207006044 |
US $10.65 |
||
|
45
|
45
207006044 Screw-hex.cap iso.4014 |
207006044 |
US $10.65 |
||
|
46
|
46
503189564 Rondelle *washer |
503189564 |
US $7.10 |
||
|
47
|
47
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
48
|
48
505071958 Bras sup.dr *arm-upper r.h. |
505071958 |
US $177.45 |
||
|
48
|
48
505071959
Bras sup. ga. *arm-upper lh
|
505071959 |
— | ||
|
49
|
49
505071865
Joint rot. su *joint-ball
|
505071865 |
— | ||
| replacement | |||||
|
49
|
49
505072049
Joint rotule *ball joint
|
505072049 |
— | ||
|
50
|
50
250000047 Nut-stop elastic din.985 |
250000047 |
US $2.45 |
||
|
51
|
51
234021410 Washer-flat din.125a |
234021410 |
US $9.50 |
||
|
52
|
52
503189276 Rondelle *washer |
503189276 |
US $105.75 |
||
|
53
|
53
211400017 Goupille fendue*pin-cotter |
211400017 |
US $20.50 |
||
|
54
|
54
250000047 Nut-stop elastic din.985 |
250000047 |
US $2.45 |
||
|
55
|
55
250000216
Cone screw m10 x 75
|
250000216 |
— | ||
|
56
|
56
250000218 Screw-hex.cap m10 x 75 iso.876 |
250000218 |
US $10.69 |
||
|
57
|
57
250100073
Nut-flange elastic din.6926
|
250100073 |
— | ||
|
58
|
58
250100073
Nut-flange elastic din.6926
|
250100073 |
— | ||
|
59
|
59
505070960 Douille alum. *bushing-alum. |
505070960 |
US $44 |
||
|
60
|
60
505071397 Coussinet d.u. *d.u. bushing |
505071397 |
US $91.70 |
||
|
61
|
61
232501416 Nut-stop elastic din.985LH; |
232501416 |
US $9.60 |
||
|
62
|
62
503189564 Rondelle *washer |
503189564 |
US $7.10 |
||
|
63
|
63
516002747
Decal. susp. *slide decal
|
516002747 |
— | ||
|
64
|
64
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
