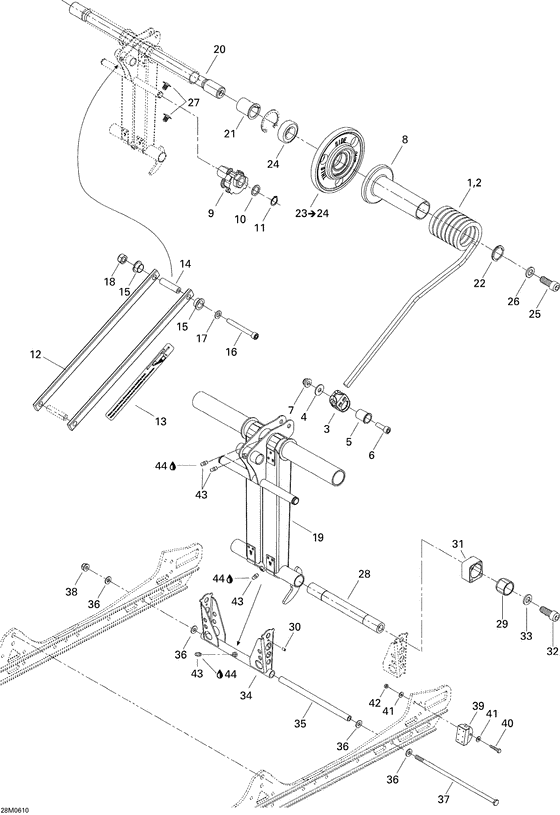

08- rear arm Diagram Bombardier MX Z
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503190999
Ressort droit *rh.spring
|
503190999 |
— | ||
|
2
|
2
503191000 Ressort gauche *lh.spring |
503191000 |
US $64.23 |
||
|
3
|
3
503190583
Support ressort*support-spring
|
503190583 |
— | ||
| replacement | |||||
|
3
|
3
503191539
Support ressort*support-spring
|
503191539 |
— | ||
|
4
|
4
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
5
|
5
503190754 Coussinet reten*cushion-retain. |
503190754 |
US $9.72 |
||
| replacement | |||||
|
5
|
5
861805547 Spring Support |
861805547 |
US $10.15 |
||
|
6
|
6
205082544 Screw-socket hd.din.912 |
205082544 |
US $14.80 |
||
|
7
|
7
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
8
|
8
503190584 Douille plast. *bushing-plastic |
503190584 |
US $10.69 |
||
|
9
|
9
503190585 Came ressort ga*cam-spring lh |
503190585 |
US $7 |
||
|
9
|
9
503190586 Came ressort dr*cam-spring rh |
503190586 |
US $7 |
||
|
10
|
10
503183400 Rondelle *washer |
503183400 |
US $12.25 |
||
|
11
|
11
293370043 Circlip *circlip |
293370043 |
US $1.79 |
||
|
12
|
12
503190644 Tige accoup. *tie rod |
503190644 |
US $34.65 |
||
|
13
|
13
516001790
Decalque *decal
|
516001790 |
— | ||
|
14
|
14
503191192 Axe barre *axle-bar |
503191192 |
US $36.69 |
||
|
15
|
15
506150200
Coussinet pivot*swivel-bushing
|
506150200 |
— | ||
|
16
|
16
205009044 Screw-socket hd.din.912 |
205009044 |
US $9.45 |
||
|
17
|
17
503175800 Rondelle *washer |
503175800 |
US $42.30 |
||
|
18
|
18
232500416 Nut-stop elastic din.985 |
232500416 |
US $9.80 |
||
|
19
|
19
503190645
Bras arriere p.*arm-rear p.
|
503190645 |
— | ||
|
20
|
20
503190618 Axe superieur *shaft-upper |
503190618 |
US $65.25 |
||
|
21
|
21
503190619 Coussinet *cushion |
503190619 |
US $4.73 |
||
|
22
|
22
503190690 Ressort axe *spring-axle |
503190690 |
US $3.83 |
||
|
23
|
23
503190620 Roue 141 *wheel-141Includes 23 to 24; |
503190620 |
US $48.93 |
||
|
24
|
24
503190621 Roulement bille*ball bearing |
503190621 |
US $22.39 |
||
|
25
|
25
205523544 Screw-socket hd.din.912 s.grip |
205523544 |
US $3.28 |
||
|
26
|
26
503189276 Rondelle *washer |
503189276 |
US $105.75 |
||
|
27
|
27
414644300 Dard pare-brise*dart-windshield 1=1 pac |
414644300 |
US $13.10 |
||
|
28
|
28
503190725 Axe inferieur *shaft-lower |
503190725 |
US $42.81 |
||
|
29
|
29
503189488 Guide bloc *guide-block |
503189488 |
US $67.22 |
||
|
30
|
30
250400005 Dowel-pin 4 x 8mm |
250400005 |
US $19.60 |
||
|
31
|
31
503190623
Bloc gauche *block-lh
|
503190623 |
— | ||
|
31
|
31
503190622
Bloc droit *block-rh
|
503190622 |
— | ||
|
32
|
32
205523544 Screw-socket hd.din.912 s.grip |
205523544 |
US $3.28 |
||
|
33
|
33
503189148 Rondelle *washer |
503189148 |
US $18.30 |
||
|
34
|
34
503191091 Jumelle peinte *arm-pivot p. |
503191091 |
US $110.13 |
||
|
35
|
35
503189156 Axe jumelle *axle-pivot |
503189156 |
US $19.57 |
||
|
36
|
36
503189157 Rondelle *washer |
503189157 |
US $42.30 |
||
|
37
|
37
732601198
Boulon 248mm *bolt 248mm
|
732601198 |
— | ||
|
38
|
38
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
39
|
39
503189608 Butee caout. *stopper-rubber |
503189608 |
US $12.19 |
||
|
40
|
40
207053044 Screw-hex.cap din.931 |
207053044 |
US $15.10 |
||
|
41
|
41
250200016 Rondelle *washer |
250200016 |
US $9.50 |
||
|
42
|
42
232551414 Nut-stop elastic din.985 |
232551414 |
US $11.20 |
||
|
43
|
43
408200700 Graisseur *grease fitting |
408200700 |
US $46.60 |
||
|
44
|
44
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
