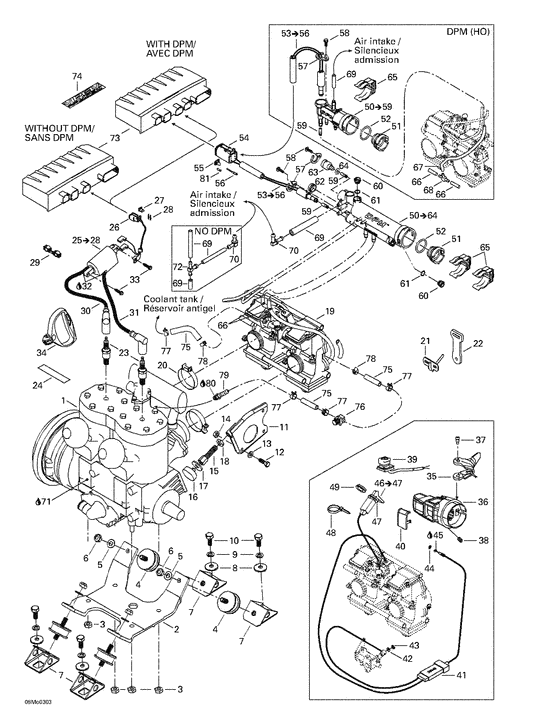

01- engine support Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
413803200
Huile 2t baril * oil 2t drum mineral
|
413803200 |
— | ||
|
|
400509736
Moteur 593 *engine-593
RER 600 ADRENALINE. RER 600 TRAIL MX Z 600.; |
400509736 |
— | ||
|
|
512059645
Module calibre *module-calib.
RER 700 ADRENALINE. RER 700 RENEGADE MX Z 500. MX Z 800.; |
512059645 |
— | ||
|
|
415080200
Boyau polyure *polyurethane hose
DPM ADRENALINE & RENEGADE. DPM-HO ADRENALINE & RENEGADE MX Z 600.; |
415080200 |
— | ||
|
|
413711000
Huile xps synth*oil-xps synth.
|
413711000 |
— | ||
| replacement | |||||
|
|
293600046
Huile 2t 3x1g synth *oil 2t 3x1g synth
|
293600046 |
— | ||
|
|
400509737
Engine 593 ho
STD 600 HO ADRENALINE. STD 600 HO RENEGADE MX Z 600.; |
400509737 |
— | ||
|
|
512059649
Module calibre *module-calib.
STD 700 ADRENALINE. STD 700 RENEGADE MX Z 500. MX Z 800.; |
512059649 |
— | ||
|
|
413710700
Huile inj.2stro*oil-inj2stroke
|
413710700 |
— | ||
| replacement | |||||
|
|
293600047
Huile 2t baril * oil 2t drum synth
|
293600047 |
— | ||
|
|
400509738
Engine 593 ho
RER 600 HO ADRENALINE. RER 600 HO RENEGADE MX Z 600.; |
400509738 |
— | ||
|
|
512059647
Module calibre *module-calib.
RER 800 ADRENALINE MX Z 500. RER 800 RENEGADE MX Z 500..; |
512059647 |
— | ||
|
|
512058949
Bouchon *cap
700 ADRENALINE & RENEGADE MX Z 700. 800 ADRENALINE & RENEGADE MX Z 800.; |
512058949 |
— | ||
|
|
414961100
Bougie br9es *plug-spark br9es
500 ADRENALINE & TRAIL MX Z 500.; |
414961100 |
— | ||
| replacement | |||||
|
|
219703120 SPARK PLUG, NGK BR9ES500 ADRENALINE & TRAIL MX Z 500.; |
219703120 |
US $21.84 |
||
|
|
413710500
Huile xps synth*oil-xps synth.
Bombardier-Rotax Formula XP-S; |
413710500 |
— | ||
| replacement | |||||
|
|
293600045
Huile 2t 12x1 synth * oil 2t 12x1 synth
Bombardier-Rotax Formula XP-S; |
293600045 |
— | ||
|
|
400604025
Moteur 693 *engine-693
STD 700 ADRENALINE. STD 700 RENEGADE MX Z 700.; |
400604025 |
— | ||
|
|
512059650
Module calibre *module-calib.
STD 800 ADRENALINE MX Z 500. STD 800 RENEGADE MX Z 500..; |
512059650 |
— | ||
|
|
512058950
Joint torique *o-ring
700 ADRENALINE & RENEGADE MX Z 700. 800 ADRENALINE & RENEGADE MX Z 800.; |
512058950 |
— | ||
|
|
400604026
Moteur 693 *engine-693
RER 700 ADRENALINE. RER 700 RENEGADE MX Z 700.; |
400604026 |
— | ||
|
|
293300042 Joint torique *o-ring600 HO ADRENALINE & RENEGADE MX Z 600.; |
293300042 |
US $8.45 |
||
|
|
512059651
Boyau *hose
DPM-HO ADRENALINE & RENEGADE MX Z 600.; |
512059651 |
— | ||
|
|
512059788
Manette ass. *handle-assy
RENEGADE MX Z 500. MX Z 700..; |
512059788 |
— | ||
| replacement | |||||
|
|
512060302
Manette ass. *handle-assy
RENEGADE MX Z 500. MX Z 700..; |
512060302 |
— | ||
|
|
400702612
Engine 793
STD 800 ADRENALINE. STD 800 RENEGADE MX Z 800.; |
400702612 |
— | ||
|
|
403138730
Ensemble carb. *kit-carb.-x tm-40
700 ADRENALINE & RENEGADE MX Z 700.; |
403138730 |
— | ||
|
|
415080200
Boyau polyure *polyurethane hose
500 / 600 ADRENALINE & TRAIL MX Z 500. MX Z 600.; |
415080200 |
— | ||
|
|
512059638
Module calibre *module-calib.
RER 500 ADRENALINE & TRAIL MX Z 500.; |
512059638 |
— | ||
|
|
400702613
Engine 793
RER 800 ADRENALINE. RER 800 RENEGADE MX Z 800.; |
400702613 |
— | ||
|
|
403138733
Ensemble carb. *kit-carb.-x tm-40
600 HO ADRENALINE & RENEGADE MX Z 600.; |
403138733 |
— | ||
|
|
509000093
Boyau 8mm *hose-8mm
|
509000093 |
— | ||
|
|
512059639
Module calibre *module-calib.
STD 600 ADRENALINE & TRAIL MX Z 600.; |
512059639 |
— | ||
|
|
403138731
Ensemble carb. *kit-carb.-x tm-40
600 ADRENALINE & TRAIL MX Z 600.; |
403138731 |
— | ||
|
|
512059488 Socle *support-engineMX Z 500. MX Z 600. MX Z 700.; |
512059488 |
US $161.13 |
||
|
|
512059641
Module calibre *module-calib.
RER 600 ADRENALINE & TRAIL MX Z 600.; |
512059641 |
— | ||
|
|
403138732
Ensemble carb. *kit-carb.-x tm-40
500 ADRENALINE & TRAIL MX Z 500.; |
403138732 |
— | ||
|
|
413802900
Huile 2t 12x1 min+r* oil 2t 12x1 mineral
|
413802900 |
— | ||
| replacement | |||||
|
|
293600117 Huile 2t 12x1 *oil 2t 12x1 mineral |
293600117 |
US $15.64 |
||
|
|
400409430
Engine 493 rer
RER 500 ADRENALINE. RER 500 TRAIL MX Z 500.; |
400409430 |
— | ||
|
|
512059642
Module calibre *module-calib.
STD 600 HO ADRENALINE. STD 600 HO RENEGADE MX Z 500. MX Z 700.; |
512059642 |
— | ||
|
|
512058919 Support *supportDPM-HO ADRENALINE & RENEGADE MX Z 600.; |
512058919 |
US $14.25 |
||
|
|
413803000
Huile 2t 3x1g min+r* oil 2t 3x1g mineral
|
413803000 |
— | ||
|
|
400509735
Moteur 593 *engine-593
STD 600 ADRENALINE. STD 600 TRAIL MX Z 600.; |
400509735 |
— | ||
|
|
512059644
Module calibre *module-calib.
RER 600 HO ADRENALINE. RER 600 HO RENEAGADE MX Z 500. MX Z 700.; |
512059644 |
— | ||
|
1
|
1
400409429
Engine 493
STD 500 ADRENALINE. STD 500 TRAIL MX Z 500.; |
400409429 |
— | ||
|
2
|
2
512059173
Socle *support-engine
MX Z 800.; |
512059173 |
— | ||
|
3
|
3
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
4
|
4
570128700 Tampon ancrage *mount-rubber |
570128700 |
US $52.14 |
||
|
5
|
5
234001410 Washer-flat din.125a |
234001410 |
US $16 |
||
|
6
|
6
233601416 Nut-locking elastic din.982 |
233601416 |
US $21.90 |
||
|
7
|
7
512050900 Supp.moteur sou*supp-engine weld |
512050900 |
US $15.54 |
||
|
8
|
8
512056700 Rondelle-frein *washer-lock |
512056700 |
US $20.50 |
||
|
9
|
9
234100602 Washer-lock spring din.128a-a2 |
234100602 |
US $19.60 |
||
|
10
|
10
207102544 Screw-hex.cap iso.4017 |
207102544 |
US $17.50 |
||
|
11
|
11
512058500
Plaque app.soud*plate-weld.
|
512058500 |
— | ||
|
12
|
12
207182044 Screw-hex.cap din.933 |
207182044 |
US $9.50 |
||
|
13
|
13
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
14
|
14
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
15
|
15
512058800 Vis d arret *screw-stopper |
512058800 |
US $16.07 |
||
|
16
|
16
512059056 Butee *stopper |
512059056 |
US $22.39 |
||
|
17
|
17
512059057 Rondelle *washer |
512059057 |
US $19.60 |
||
|
18
|
18
732610019 Nut-jam hexagonal rh. |
732610019 |
US $9.80 |
||
|
19
|
19
403138729
Ensemble carb. *kit-carb.-x tm-40
800 ADRENALINE & RENEGADE MX Z 800.; |
403138729 |
— | ||
|
20
|
20
512059305
Bride *clamp
|
512059305 |
— | ||
| replacement | |||||
|
20
|
20
512059835 Bride *clamp |
512059835 |
US $11.90 |
||
|
21
|
21
512059504
Attache carb.so*bracket-carb.weld
700 / 800 MX Z 500. MX Z 800..; |
512059504 |
— | ||
|
22
|
22
512059372
Loquet carb. *latch-carburator
700 / 800 MX Z 500. MX Z 800..; |
512059372 |
— | ||
|
23
|
23
512059552 Bougie br9ecs-5*plug-spark br9ecs-5600 HO ADRENALINE & RENEGADE 700 / 800 ADRENALINE & RENEGADE MX Z 700. MX Z 800. 600 ADRENALINE & TRAIL MX Z 600.; |
512059552 |
US $116.80 |
||
|
24
|
24
516000986
Decalque bougie*decal-spark plug
500 ADRENALINE & TRAIL MX Z 500.; |
516000986 |
— | ||
|
25
|
25
512059512
Bobine allumage*coil-ignition
Includes 25 - 28.; |
512059512 |
— | ||
|
26
|
26
409207300 Logement femel.*housing-female |
409207300 |
US $10.85 |
||
|
27
|
27
409207100 Verrou femelle *lock-female |
409207100 |
US $3.11 |
||
|
28
|
28
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
29
|
29
410914600 Attache fil bou*clip-plastic |
410914600 |
from US $9.01 |
||
|
30
|
30
512059485
Cable ass.380mm*cable-assy 380mm
|
512059485 |
— | ||
| replacement | |||||
|
30
|
30
512059696 Cable ass.375mm*cable-assy 375mm |
512059696 |
US $80.55 |
||
|
31
|
31
512059486 Cable assemble *cable ass y |
512059486 |
US $61.15 |
||
|
32
|
32
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
33
|
33
250000005
Screw-tapp.hex.type-ab
|
250000005 |
— | ||
|
34
|
34
572084400 Poignee demar. *grip-starter |
572084400 |
US $14.25 |
||
|
35
|
35
512059483
Manette ass. *handle-assy
ADRENALINE & TRAIL; |
512059483 |
— | ||
| replacement | |||||
|
35
|
35
512060302
Manette ass. *handle-assy
ADRENALINE & TRAIL; |
512060302 |
— | ||
|
36
|
36
512059763 Logem. accel. *housing throttle |
512059763 |
US $28.51 |
||
|
37
|
37
732601143 Screw-shoulder |
732601143 |
US $38.90 |
||
|
38
|
38
414440800 Screw-set din 916-a2 |
414440800 |
US $19.45 |
||
|
39
|
39
512059751
Inter.urgence *kill switch
|
512059751 |
— | ||
| replacement | |||||
|
39
|
39
548872536
Inter.urgence *switch-kill
|
548872536 |
— | ||
|
40
|
40
572100901 Couv.interrupt.*cover-switch |
572100901 |
US $14.35 |
||
|
41
|
41
512059679 Cable accelerat*throttle cable |
512059679 |
US $97.89 |
||
|
42
|
42
414753300
Rondelle *washer
|
414753300 |
— | ||
|
43
|
43
414753500 Circlip-type bs n |
414753500 |
US $9.20 |
||
|
44
|
44
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
45
|
45
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
46
|
46
512059110 Cable etrang. *cable-chokeIncludes 46 - 47.; |
512059110 |
US $82.57 |
||
|
47
|
47
394103300
Washer-lock int.teeth
|
394103300 |
— | ||
|
48
|
48
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
49
|
49
512059094 Ecrou plastique*nut-plastic |
512059094 |
US $5.87 |
||
|
50
|
50
512059634
Collect.pres.as*manif.-pres.assy
Includes 50 - 64. 700 ADRENALINE & RENEGADE MX Z 700. 800 ADRENALINE & RENEGADE MX Z 800.; |
512059634 |
— | ||
|
50
|
50
512059633
Collect.press. *pressure-manif.assy
Includes 50 - 59. 600 HO ADRENALINE & RENEGADE MX Z 600.; |
512059633 |
— | ||
| replacement | |||||
|
50
|
50
512060002 Collect.pres.as*pression manif. assyIncludes 50 - 59. 600 HO ADRENALINE & RENEGADE MX Z 600.; |
512060002 |
US $241.69 |
||
|
51
|
51
270600009 Capuchon *cap600 HO ADRENALINE & RENEGADE MX Z 600.; |
270600009 |
US $7.31 |
||
|
52
|
52
512058950
Joint torique *o-ring
700 ADRENALINE & RENEGADE MX Z 700. 800 ADRENALINE & RENEGADE MX Z 800.; |
512058950 |
— | ||
|
53
|
53
515175701 Cablage collect*harness-press.manif.Includes 53 - 56.; |
515175701 |
US $79.53 |
||
|
54
|
54
515175673 Bloc 6 circ.mal*housing-tab |
515175673 |
US $15.74 |
||
|
55
|
55
515175678 Cale 6 circ.mal*wedge-6 ways m |
515175678 |
US $7.24 |
||
|
56
|
56
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
57
|
57
415061600 Barrure electr.*lock-solenoidMX Z 600. Solenoid lock; |
415061600 |
US $8.13 |
||
|
58
|
58
241140060 Screw-pt.hex.flange k40 x 10Hex flanged screw K40 x 10 (HO) MX Z 600.; |
241140060 |
US $9.60 |
||
|
59
|
59
404161825
Gicleur lanceur*starter-jet
MX Z 600. Starter jet; |
404161825 |
— | ||
|
60
|
60
512058921
Bouchon *cap
700 ADRENALINE & RENEGADE MX Z 700. 800 ADRENALINE & RENEGADE MX Z 800.; |
512058921 |
— | ||
|
61
|
61
512058925
Joint torique *o-ring
700 ADRENALINE & RENEGADE MX Z 700. 800 ADRENALINE & RENEGADE MX Z 800.; |
512058925 |
— | ||
|
62
|
62
512058982
Capuchon *cap
700 ADRENALINE & RENEGADE MX Z 700. 800 ADRENALINE & RENEGADE MX Z 800.; |
512058982 |
— | ||
|
63
|
63
512059557
Bouchon *cap
700 ADRENALINE & RENEGADE MX Z 700. 800 ADRENALINE & RENEGADE MX Z 800.; |
512059557 |
— | ||
|
64
|
64
512059558
Joint torique *o-ring
700 ADRENALINE & RENEGADE MX Z 700. 800 ADRENALINE & RENEGADE MX Z 800.; |
512059558 |
— | ||
|
65
|
65
512058919 Support *supportDPM ADRENALINE & RENEGADE; |
512058919 |
US $14.25 |
||
|
66
|
66
415080200
Boyau polyure *polyurethane hose
DPM ADRENALINE & RENEGADE. DPM-HO ADRENALINE & RENEGADE MX Z 600.; |
415080200 |
— | ||
|
67
|
67
512059524
Boyau polyure *hose-polyurethane
DPM-HO ADRENALINE & RENEGADE MX Z 600.; |
512059524 |
— | ||
|
68
|
68
414729300 Raccord en t *fitting-tDPM-HO ADRENALINE & RENEGADE; |
414729300 |
US $11.80 |
||
|
69
|
69
512059523
Boyau polyure *hose-polyurethane
DPM ADRENALINE & RENEGADE; |
512059523 |
— | ||
|
70
|
70
414580600 Raccord male *connector-male |
414580600 |
US $27.35 |
||
|
71
|
71
413803200
Huile 2t baril * oil 2t drum mineral
|
413803200 |
— | ||
|
72
|
72
572045500 Raccord t 4-6-4*fitting-t 4-6-4500 / 600 ADRENALINE & TRAIL MX Z 500. MX Z 600.; |
572045500 |
US $35.45 |
||
|
73
|
73
512059636
Module calibre *module-calib.
STD 500 ADRENALINE & TRAIL MX Z 500.; |
512059636 |
— | ||
|
74
|
74
516000245
Decal.boit.elec*decal.-elect.box
|
516000245 |
— | ||
|
75
|
75
509000093
Boyau 8mm *hose-8mm
|
509000093 |
— | ||
|
76
|
76
512059324 Soupape 5/16" *valve-5/16 |
512059324 |
US $41.77 |
||
|
77
|
77
414655700 Bride a ressort*clamp-spring |
414655700 |
US $9.50 |
||
|
78
|
78
293650128
Bride serrage *hose clamp
|
293650128 |
— | ||
| replacement | |||||
|
78
|
78
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
79
|
79
293710082 Raccord droit *fitting-straight |
293710082 |
US $8.13 |
||
|
80
|
80
293800018 Scellant tuyau *sealant-pipe |
293800018 |
US $38.71 |
||
|
81
|
81
293000052 Bouchon etanche*cap-sealingPlug (no DPM) MX Z 500. MX Z 600. MX Z 700.; |
293000052 |
US $21.15 |
||
