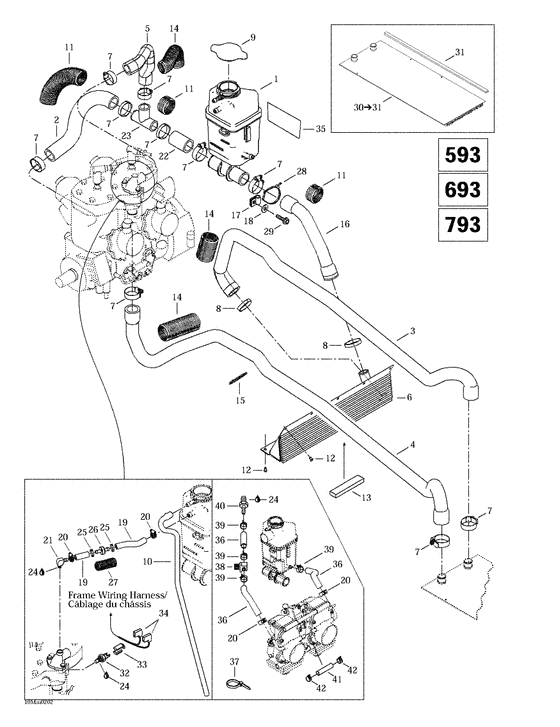

01- cooling system (593) Diagram Bombardier MX Z
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
509000150
Radiateur av. s*rad.-front weld.
(RENEGADE) MX Z 600. MX Z 700. MX Z 800.; |
509000150 |
— | ||
|
1
|
1
509000167 Res.antigel *tank-coolantMX Z 600. MX Z 700. MX Z 800.; |
509000167 |
US $86.67 |
||
|
2
|
2
509000141
Boyau entre mot*hose-inlet eng
MX Z 600. MX Z 700. MX Z 800.; |
509000141 |
— | ||
|
3
|
3
509000003 Boyau inter rad*hose-radiatorMX Z 600. MX Z 700. MX Z 800.; |
509000003 |
US $98.89 |
||
|
4
|
4
509000145
Boyau sortie .*hose-outer
MX Z 600. MX Z 700. MX Z 800.; |
509000145 |
— | ||
|
5
|
5
509000142 Boyau *hoseMX Z 600. MX Z 700. MX Z 800.; |
509000142 |
US $26.49 |
||
|
6
|
6
509000146
Radiateur av.s.*rad.-front weld.
MX Z 600. MX Z 700. MX Z 800.; |
509000146 |
— | ||
|
7
|
7
408800400 Clamp-gearMX Z 600. MX Z 700. MX Z 800.; |
408800400 |
US $121.90 |
||
|
8
|
8
509000045 Bride serrage *clamp-gearMX Z 600. MX Z 700. MX Z 800.; |
509000045 |
US $104.70 |
||
|
9
|
9
414684700
Bouchon radiat.*cap-pressure
MX Z 600. MX Z 700. MX Z 800.; |
414684700 |
— | ||
| replacement | |||||
|
9
|
9
509000187 Bouchon radiat.*pressure capMX Z 600. MX Z 700. MX Z 800.; |
509000187 |
US $32.15 |
||
|
10
|
10
415110000 Boyau polyure *hose-polyurethaneMX Z 600. MX Z 700. MX Z 800.; |
415110000 |
US $116.70 |
||
|
11
|
11
415084700 Gaine *protector tubeMX Z 600. MX Z 700. MX Z 800.; |
415084700 |
US $2.53 |
||
|
12
|
12
390402200 Rivet-pop 3/16 *rivet-pop 3/16MX Z 600. MX Z 700. MX Z 800.; |
390402200 |
US $22 |
||
|
13
|
13
293200003 Joint etanche *seal-trayMX Z 600. MX Z 700. MX Z 800.; |
293200003 |
US $37.20 |
||
|
14
|
14
409902200 Gaine 25mm *tubing-25mmMX Z 600. MX Z 700. MX Z 800.; |
409902200 |
US $15.73 |
||
|
15
|
15
293750008 Tie rap 350mm *tie-rap 350mmMX Z 600. MX Z 700. MX Z 800.; |
293750008 |
US $13.40 |
||
|
16
|
16
509000144 Boyau sort.rad.*hose-out.rad.MX Z 600. MX Z 700. MX Z 800.; |
509000144 |
US $28.51 |
||
|
17
|
17
415052400 Attache collier*open clampMX Z 600. MX Z 700. MX Z 800.; |
415052400 |
US $35.22 |
||
|
18
|
18
391301600 Rondelle *washerMX Z 600. MX Z 700. MX Z 800.; |
391301600 |
US $30.50 |
||
|
19
|
19
509000093
Boyau 8mm *hose-8mm
MX Z 600. MX Z 700. MX Z 800.; |
509000093 |
— | ||
|
20
|
20
293650128
Bride serrage *hose clamp
MX Z 600. MX Z 700. MX Z 800.; |
293650128 |
— | ||
| replacement | |||||
|
20
|
20
293650170 Bride serrage *hose clampMX Z 600. MX Z 700. MX Z 800.; |
293650170 |
US $27.20 |
||
|
21
|
21
293700020
Raccord coude90*fitting-elbow
MX Z 600. MX Z 700. MX Z 800.; |
293700020 |
— | ||
|
22
|
22
509000143
Boyau *hose
MX Z 600. MX Z 700. MX Z 800.; |
509000143 |
— | ||
|
23
|
23
414619900
Raccord en t *fitting-t
MX Z 600. MX Z 700. MX Z 800.; |
414619900 |
— | ||
|
24
|
24
293800018 Scellant tuyau *sealant-pipeMX Z 600. MX Z 700. MX Z 800.; |
293800018 |
US $38.71 |
||
|
25
|
25
293650053 Bride serrage *clamp-oetikerMX Z 600. MX Z 700. MX Z 800.; |
293650053 |
US $20.40 |
||
|
26
|
26
509000153 Soupape retenue*valve-checkMX Z 600. MX Z 700. MX Z 800.; |
509000153 |
US $17.29 |
||
|
27
|
27
415080000
Gaine *protector tube
MX Z 600. MX Z 700. MX Z 800.; |
415080000 |
— | ||
|
28
|
28
509000165 Tie rap *tie-rapMX Z 600. MX Z 700. MX Z 800.; |
509000165 |
US $136 |
||
|
29
|
29
210252040 Screw-forming hex.hd.fl.din.7500dMX Z 600. MX Z 700. MX Z 800.; |
210252040 |
US $7.25 |
||
|
30
|
30
518322901
Radiateur arr.s*rad.-rear weld.
Includes 30 - 31. MX Z 600. MX Z 700. MX Z 800.; |
518322901 |
— | ||
|
31
|
31
518321655
Protecteur *protector
MX Z 600. MX Z 700. MX Z 800.; |
518321655 |
— | ||
| replacement | |||||
|
31
|
31
415012300 Protecteur *protectorMX Z 600. MX Z 700. MX Z 800.; |
415012300 |
US $18.33 |
||
|
32
|
32
512047000
Capteur temp. *sensor-temp.
MX Z 600. MX Z 700. MX Z 800.; |
512047000 |
— | ||
|
33
|
33
515175297
Tampon connect.*plug-connector
MX Z 600. MX Z 700. MX Z 800.; |
515175297 |
— | ||
|
34
|
34
409010300 Cosse femelle *terminal-femal.MX Z 600. MX Z 700. MX Z 800.; |
409010300 |
US $58.70 |
||
|
35
|
35
514053399
Feuille reflect*sheet-reflect
MX Z 600. MX Z 700. MX Z 800.; |
514053399 |
— | ||
|
36
|
36
509000093
Boyau 8mm *hose-8mm
MX Z 600. MX Z 700. MX Z 800.; |
509000093 |
— | ||
|
37
|
37
414115200 Tie-rap 180 mmMX Z 600. MX Z 700. MX Z 800.; |
414115200 |
US $7 |
||
|
38
|
38
512059324 Soupape 5/16" *valve-5/16MX Z 600. MX Z 700. MX Z 800.; |
512059324 |
US $41.77 |
||
|
39
|
39
414655700 Bride a ressort*clamp-springMX Z 600. MX Z 700. MX Z 800.; |
414655700 |
US $9.50 |
||
|
40
|
40
293710082 Raccord droit *fitting-straightMX Z 600. MX Z 700. MX Z 800.; |
293710082 |
US $8.13 |
||
|
41
|
41
404161956 Durite *hoseMX Z 600. MX Z 700. MX Z 800.; |
404161956 |
US $18.55 |
||
|
42
|
42
404161957 Clip *clipMX Z 600. MX Z 700. MX Z 800.; |
404161957 |
US $15.90 |
||
