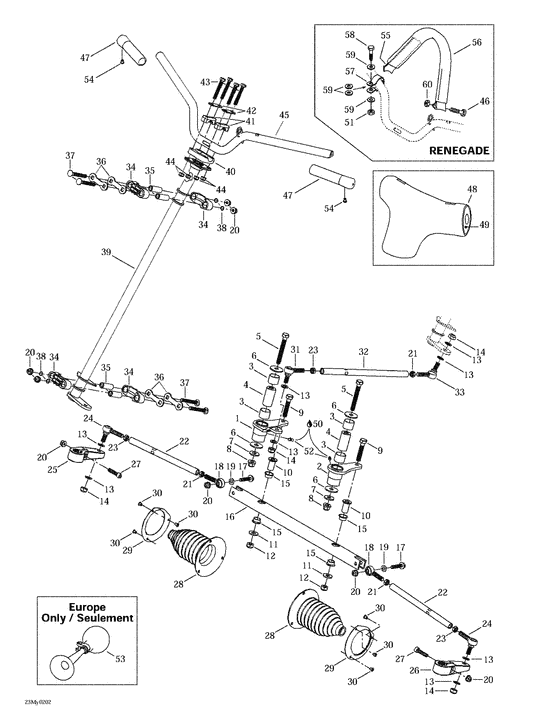

07- steering system Diagram Bombardier MX Z
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
506151222
Arbre dir.peint*tube-main paint
(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
506151222 |
— | ||
|
|
506151265
Housse coussin.*cover-padding
(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
506151265 |
— | ||
|
|
506151450
Barre accoupl. *rod-tie
(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
506151450 |
— | ||
| replacement | |||||
|
|
506151376
Barre accoupl. *rod-tie
(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
506151376 |
— | ||
|
|
506151264
Mousse *foam
(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
506151264 |
— | ||
|
|
506151451
Bras direct.dr.*arm-steer.rh
(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
506151451 |
— | ||
|
|
506151452
Bras direct.ga.*arm-steer.lh
(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
506151452 |
— | ||
|
|
506151391
Guidon *bar-handle
(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
506151391 |
— | ||
|
1
|
1
506151506
Bras piv.dr.sou*arm-swivel rh w.
|
506151506 |
— | ||
|
2
|
2
506151507
Bras piv.ga.sou*arm-swivel lh w.
|
506151507 |
— | ||
| replacement | |||||
|
2
|
2
506151623 Bras piv.ga.sou*swivel arm lh w. |
506151623 |
US $97.89 |
||
|
3
|
3
506149900 Coussinet pivot*swivel-bushing |
506149900 |
US $14.67 |
||
|
4
|
4
506150100 Pivot de bras *swivel-pivot |
506150100 |
US $18.34 |
||
|
5
|
5
207008086 Screw-hex.cap iso.4014 |
207008086 |
US $16 |
||
|
6
|
6
506150000 Rondelle *washer m10 |
506150000 |
US $3.54 |
||
|
7
|
7
506151251 Rondelle *washer |
506151251 |
US $1.96 |
||
|
8
|
8
732610084 Nut-flange flexloc m10 |
732610084 |
US $44.35 |
||
|
9
|
9
207005544 Screw-hex.cap iso.4014 |
207005544 |
US $14.35 |
||
|
10
|
10
506147300 Pivot de barre *pivot-bar |
506147300 |
US $18.34 |
||
|
11
|
11
224002251 Washer-flat |
224002251 |
US $9.80 |
||
|
12
|
12
233601416 Nut-locking elastic din.982 |
233601416 |
US $21.90 |
||
|
13
|
13
503175800 Rondelle *washer |
503175800 |
US $42.30 |
||
|
14
|
14
232501416 Nut-stop elastic din.985 |
232501416 |
US $9.60 |
||
|
15
|
15
506150200
Coussinet pivot*swivel-bushing
|
506150200 |
— | ||
|
16
|
16
506147000 Barre pivotante*bar-swivel |
506147000 |
US $65.25 |
||
|
17
|
17
207684044 Screw-hex.flange din.6921 |
207684044 |
US $19.20 |
||
|
18
|
18
506151496 Joint rotule ga*joint-ball lh |
506151496 |
US $48.93 |
||
|
19
|
19
506151252 Rondelle *washer |
506151252 |
US $102.50 |
||
|
20
|
20
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
21
|
21
250100016 Nut-jam hexagonal lh. |
250100016 |
US $9.50 |
||
|
22
|
22
506151190
Barre accoupl. *rod-tie
|
506151190 |
— | ||
| replacement | |||||
|
22
|
22
506151374 Barre accoupl. *rod-tie |
506151374 |
US $48.93 |
||
|
23
|
23
732610010 Nut-jam hexagonal rh. |
732610010 |
US $9.50 |
||
|
24
|
24
506151491 Joint rotule *joint-ball |
506151491 |
US $41.74 |
||
|
25
|
25
506145800 Bras direct.dr.*arm-steer.rh |
506145800 |
US $146.85 |
||
|
26
|
26
506145900 Bras direct.ga.*arm-steer.lh |
506145900 |
US $146.85 |
||
|
27
|
27
205083544 Screw-socket hd.din.912 |
205083544 |
US $8.65 |
||
|
28
|
28
570070500 Capuchon timon.*cap-tie rod |
570070500 |
US $17.12 |
||
|
29
|
29
506151100 Anneau retenue *ring-retainer |
506151100 |
US $5.41 |
||
|
30
|
30
390402300 Rivet-pop 3/16 *rivet-pop 3/16 |
390402300 |
US $50 |
||
|
31
|
31
506151492 Joint rotule dr*joint-ball rh |
506151492 |
US $53.13 |
||
|
32
|
32
506150300
Barre accoup.in*rod-tie inside
|
506150300 |
— | ||
| replacement | |||||
|
32
|
32
506151375
Barre accoupl. *rod-tie
|
506151375 |
— | ||
|
33
|
33
506151495 Joint rotule ga*joint-ball lh |
506151495 |
US $46.10 |
||
| replacement | |||||
|
33
|
33
506151845 Joint rotule ga*ball joint lh |
506151845 |
US $46.10 |
||
|
34
|
34
506150400 Demi logement *half-housing |
506150400 |
US $9.74 |
||
|
35
|
35
506150500 Douille logem. *bushing-housing |
506150500 |
US $9.78 |
||
|
36
|
36
506150600 Plaque d arret *plate-stopper |
506150600 |
US $5.47 |
||
|
37
|
37
207787044 Bolt-carriage din.603 |
207787044 |
US $17.50 |
||
|
38
|
38
506151140 Joint torique *o-ring |
506151140 |
US $213.75 |
||
|
39
|
39
506147100
Arbre dir.peint*tube-main paint
|
506147100 |
— | ||
|
40
|
40
277000142 Bride direction*clamp-steering |
277000142 |
US $11.02 |
||
|
41
|
41
414491600
Support guidon *support-steer.
|
414491600 |
— | ||
| replacement | |||||
|
41
|
41
506151622
Support guidon *steering support
|
506151622 |
— | ||
|
42
|
42
506151196
Renfort *reiforcement
|
506151196 |
— | ||
|
43
|
43
207085544 Screw-hex.cap din.931 |
207085544 |
US $21.60 |
||
|
44
|
44
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
45
|
45
506151478
Guidon peint *bar-handle paint
|
506151478 |
— | ||
|
46
|
46
207063544 Screw-hex.cap din.931(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
207063544 |
US $17.70 |
||
|
47
|
47
M5340464
Gaine poignee *grip-handle
|
M5340464 |
— | ||
| replacement | |||||
|
47
|
47
506152483 GRIP |
506152483 |
US $13.18 |
||
|
48
|
48
506151263
Housse coussin.*cover-padding
|
506151263 |
— | ||
|
49
|
49
506151262
Mousse *foam
|
506151262 |
— | ||
|
50
|
50
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
51
|
51
232561414 Nut-stop elastic din.985(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
232561414 |
US $7.10 |
||
|
52
|
52
408200700 Graisseur *grease fitting |
408200700 |
US $46.60 |
||
|
53
|
53
415040700
Avertisseur *horn
|
415040700 |
— | ||
| replacement | |||||
|
53
|
53
549011291 Avertisseur *horn |
549011291 |
US $31.59 |
||
|
54
|
54
390403600
Rivet-pop 3/16 *rivet-pop 3/16
|
390403600 |
— | ||
|
55
|
55
415095500
Sangle *tie-down
(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
415095500 |
— | ||
| replacement | |||||
|
55
|
55
506152115 Sangle ass. *strap ass.(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
506152115 |
US $48.72 |
||
|
56
|
56
415090200
Gaine *grip
(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
415090200 |
— | ||
| replacement | |||||
|
56
|
56
506152115 Sangle ass. *strap ass.(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
506152115 |
US $48.72 |
||
|
57
|
57
506148200
Plaque support *plate-support
(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
506148200 |
— | ||
|
58
|
58
207162544 Screw-hex.cap din.933(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
207162544 |
US $14.60 |
||
|
59
|
59
234061410 Washer-flat m6 din.125a(Renegade) MX Z 600. MX Z 700. MX Z 800.; |
234061410 |
US $17.20 |
||
