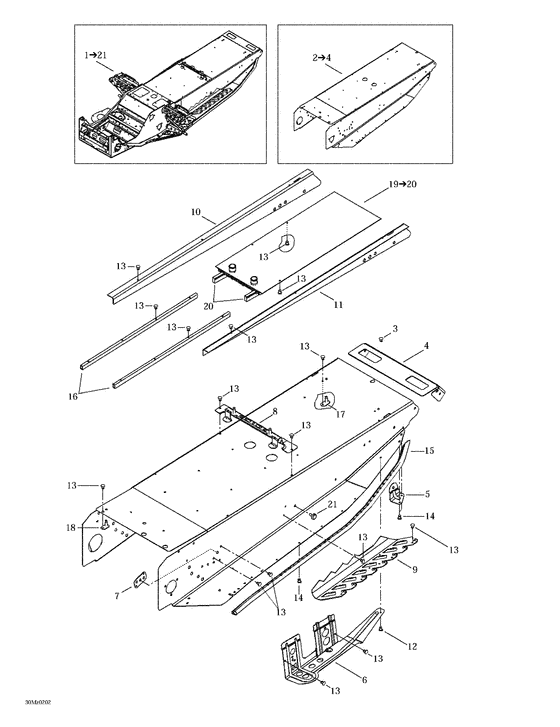

09- frame - rear (X) Diagram Bombardier MX Z
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
518322810
Renfort arr.ga.*reinf-lh paint
MX Z 600. MX Z 700. MX Z 800.; |
518322810 |
— | ||
|
|
518322870
Attache gauche *bracket-lh
MX Z 600. MX Z 700. MX Z 800.; |
518322870 |
— | ||
| replacement | |||||
|
|
518323444
Attache gauche *lh bracket
MX Z 600. MX Z 700. MX Z 800.; |
518323444 |
— | ||
|
|
518322596
Renf.marche-pie*reinf.-foot.lh
MX Z 600. MX Z 700. MX Z 800.; |
518322596 |
— | ||
| replacement | |||||
|
|
518323432
Marche-pied ga.*footrest-lh
MX Z 600. MX Z 700. MX Z 800.; |
518323432 |
— | ||
|
|
518322698
Doublure gauche*liner-lh p.
MX Z 600. MX Z 700. MX Z 800.; |
518322698 |
— | ||
|
1
|
1
518323009
Chassis *frame
Includes 1 - 21. MX Z 600.; |
518323009 |
— | ||
|
1
|
1
518323008
Chassis *frame
Includes 1 - 21. MX Z 700. MX Z 800.; |
518323008 |
— | ||
| replacement | |||||
|
1
|
1
415128547
Chassis *frame service
Includes 1 - 21. MX Z 700. MX Z 800.; |
415128547 |
— | ||
|
2
|
2
518323022
Forming frame (x)
Includes 2 - 4. MX Z 600. MX Z 700. MX Z 800.; |
518323022 |
— | ||
|
3
|
3
390402200 Rivet-pop 3/16 *rivet-pop 3/16MX Z 600. MX Z 700. MX Z 800.; |
390402200 |
US $22 |
||
|
4
|
4
518321303 Capuchon arr. *cap-rearMX Z 600. MX Z 700. MX Z 800.; |
518321303 |
US $54.03 |
||
|
5
|
5
518322808
Renfort arr.dr.*reinf-rh paint
MX Z 600. MX Z 700. MX Z 800.; |
518322808 |
— | ||
|
6
|
6
518322867
Attache droite *bracket-rh
MX Z 600. MX Z 700. MX Z 800.; |
518322867 |
— | ||
| replacement | |||||
|
6
|
6
518323442
Attache droite *rh bracket
MX Z 600. MX Z 700. MX Z 800.; |
518323442 |
— | ||
|
7
|
7
518201321 Plaque renfort *plate-reinf.MX Z 600. MX Z 700. MX Z 800.; |
518201321 |
US $8.38 |
||
|
8
|
8
518321510 Att.reserv.p. *brkt-tank paintMX Z 600. MX Z 700. MX Z 800.; |
518321510 |
US $23.41 |
||
|
9
|
9
518322697
Doublure droite*liner-rh p.
MX Z 600. MX Z 700. MX Z 800.; |
518322697 |
— | ||
|
10
|
10
518322593
Renf.tunnel dr.*reinf-frame rh
MX Z 600. MX Z 700. MX Z 800.; |
518322593 |
— | ||
|
11
|
11
518322594
Renf.tunnel ga.*reinf-frame lh
MX Z 600. MX Z 700. MX Z 800.; |
518322594 |
— | ||
|
12
|
12
390909200 Rivet avex *rivet avexMX Z 600. MX Z 700. MX Z 800.; |
390909200 |
US $19.50 |
||
|
13
|
13
390402200 Rivet-pop 3/16 *rivet-pop 3/16MX Z 600. MX Z 700. MX Z 800.; |
390402200 |
US $22 |
||
|
14
|
14
390402400 Rivet-pop 3/16 *rivet-pop 3/16MX Z 600. MX Z 700. MX Z 800.; |
390402400 |
US $22 |
||
|
15
|
15
518322595
Renf.marche-pie*reinf.-foot.rh
MX Z 600. MX Z 700. MX Z 800.; |
518322595 |
— | ||
| replacement | |||||
|
15
|
15
518323429
Marche-pied dr.*footrest-rh
MX Z 600. MX Z 700. MX Z 800.; |
518323429 |
— | ||
|
16
|
16
518321543
Protect. tunnel*protect.-frame
MX Z 600. MX Z 700. MX Z 800.; |
518321543 |
— | ||
|
17
|
17
518319730
Attache siege s*brkt-seat weld
MX Z 600. MX Z 700. MX Z 800.; |
518319730 |
— | ||
| replacement | |||||
|
17
|
17
518323321 Attache siege s*seat bracke weldMX Z 600. MX Z 700. MX Z 800.; |
518323321 |
US $11.49 |
||
|
18
|
18
518321604
Guide soude *guide-weld.
MX Z 600. MX Z 700. MX Z 800.; |
518321604 |
— | ||
|
19
|
19
518322901
Radiateur arr.s*rad.-rear weld.
Includes 19 - 20. MX Z 600. MX Z 700. MX Z 800.; |
518322901 |
— | ||
|
20
|
20
518321655
Protecteur *protector
MX Z 600. MX Z 700. MX Z 800.; |
518321655 |
— | ||
| replacement | |||||
|
20
|
20
415012300 Protecteur *protectorMX Z 600. MX Z 700. MX Z 800.; |
415012300 |
US $18.33 |
||
|
21
|
21
518321954 Attache panneau*panel-fastenerMX Z 600. MX Z 700. MX Z 800.; |
518321954 |
US $48.05 |
||
