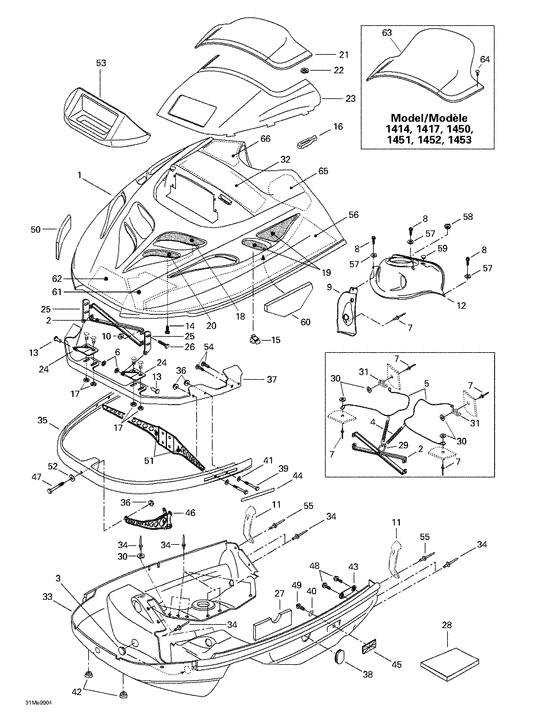

09- cab, console Diagram Bombardier MX Z
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
517295100
Support droit *support-rh
|
517295100 |
— | ||
|
|
415120100
Mousse lat.ga. *foam-side lh.
MX Z 670 HO.; |
415120100 |
— | ||
|
|
502006534
Coque *pan-bottom
MX Z 670 HO.; |
502006534 |
— | ||
| replacement | |||||
|
|
502006581
Coque *pan-bottom
MX Z 670 HO.; |
502006581 |
— | ||
|
|
415120300
Mousse avant ga*foam-front lh
MX Z 670 HO.; |
415120300 |
— | ||
|
|
517298500
Grille sup.ga.a*grill-upper lh assy
|
517298500 |
— | ||
|
|
517301800
Grille lat.dr. *grill-side rh
MX Z 670 HO.; |
517301800 |
— | ||
|
|
517301802
Grille lat.ga. *grill-side lh
MX Z 670 HO.; |
517301802 |
— | ||
|
|
517302161
Console inter. *dash-switch
MX Z 670 HO.; |
517302161 |
— | ||
| replacement | |||||
|
|
517302542
Console inter. *dash-switch
MX Z 670 HO.; |
517302542 |
— | ||
|
|
415048700
Mousse inf. dr.*foam-lower rh
|
415048700 |
— | ||
|
|
414631900
Mousse acousti.*foam-acoustic
|
414631900 |
— | ||
|
|
414883700
Mousse arr.ga. *foam-rear lh
|
414883700 |
— | ||
|
|
517298700
Grille inf.ga. *grill-low.lh assy
|
517298700 |
— | ||
|
1
|
1
517302201
Capot *hood
|
517302201 |
— | ||
|
2
|
2
517278100
Renf. capot *reinf.-hood
|
517278100 |
— | ||
|
3
|
3
570041600
Couvercle caout*cover-rubber
|
570041600 |
— | ||
|
4
|
4
414763300 Ressort *spring |
414763300 |
US $29.15 |
||
|
5
|
5
415093900 Cable retenue *cable-retainer |
415093900 |
US $13.60 |
||
|
6
|
6
389804300 Ecrou pression *push-nut |
389804300 |
US $7.10 |
||
|
7
|
7
390409600
Rivet-pop 3/16 *rivet-pop 3/16
|
390409600 |
— | ||
|
8
|
8
732600030
Screw-forming
|
732600030 |
— | ||
|
9
|
9
572052101
Console manette*dash-handle
|
572052101 |
— | ||
|
10
|
10
228751045
Nut-flange elastic din.6926
|
228751045 |
— | ||
| replacement | |||||
|
10
|
10
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
11
|
11
570027100 Loquet de capot*latch-hood |
570027100 |
from US $12.92 |
||
|
12
|
12
517302160
Console inter. *dash-switch
MX Z 500.; |
517302160 |
— | ||
| replacement | |||||
|
12
|
12
517302542
Console inter. *dash-switch
MX Z 500.; |
517302542 |
— | ||
|
13
|
13
390906200 Rivet-steel flat head |
390906200 |
US $21.50 |
||
|
14
|
14
732601210 Screw-tapp.hex.wr.hd.sltd. |
732601210 |
US $9.80 |
||
|
15
|
15
517302183
Pince *clip
|
517302183 |
— | ||
| replacement | |||||
|
15
|
15
517302785 Pince *clip |
517302785 |
US $11.70 |
||
|
16
|
16
570023800 Loquet pare-bri*latch-windshield |
570023800 |
from US $6.09 |
||
|
17
|
17
228761045
Nut-flange elastic din.6926
|
228761045 |
— | ||
| replacement | |||||
|
17
|
17
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
18
|
18
517298400
Grille sup.dr.a*grill-upper rh assy
|
517298400 |
— | ||
|
19
|
19
517280200
Grille lat.noir*grill-side black
|
517280200 |
— | ||
|
20
|
20
517298600
Grille inf.dr.a*grill-lower rh assy
|
517298600 |
— | ||
|
21
|
21
414795900
Pare-brise bas *windshield-low
|
414795900 |
— | ||
|
22
|
22
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
23
|
23
572101800
Supp.pare-brise*support-windsh
|
572101800 |
— | ||
|
24
|
24
517289900
Charniere inf.s*hinge-low.weld
|
517289900 |
— | ||
|
25
|
25
517261100 Charniere sup. *hinge-upper |
517261100 |
US $8.13 |
||
|
26
|
26
222051665
Screw-hex.cap din.933
|
222051665 |
— | ||
| replacement | |||||
|
26
|
26
207151644 Screw-hex.cap din.933 |
207151644 |
US $11.70 |
||
|
27
|
27
415028100
Mousse *foam
|
415028100 |
— | ||
|
28
|
28
414632400
Mousse acousti.*foam-acoustic
|
414632400 |
— | ||
|
29
|
29
415058300 Bague *ring |
415058300 |
US $6.22 |
||
|
30
|
30
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
31
|
31
517262800 Attache *bracket |
517262800 |
US $15.73 |
||
|
32
|
32
414985100
Mousse centrale*foam-center
|
414985100 |
— | ||
|
33
|
33
572076216
Coque *pan-bottom
MX Z 500.; |
572076216 |
— | ||
| replacement | |||||
|
33
|
33
502006574
Coque *pan-botton
MX Z 500.; |
502006574 |
— | ||
|
34
|
34
390910200
Rivet-pop 3/16 *rivet-pop 3/16
|
390910200 |
— | ||
|
35
|
35
517265400
Pare-chocs av. *bumper-front
|
517265400 |
— | ||
|
36
|
36
228761045
Nut-flange elastic din.6926
|
228761045 |
— | ||
| replacement | |||||
|
36
|
36
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
37
|
37
517296600
Attache charn.s*brkt-hinge weld
|
517296600 |
— | ||
|
38
|
38
570053704
Capuchon coque *cap-pan bottom
|
570053704 |
— | ||
|
39
|
39
222063065
Screw-hex.cap din.931
|
222063065 |
— | ||
| replacement | |||||
|
39
|
39
207063044 Screw-hex.cap din.931 |
207063044 |
US $16 |
||
|
40
|
40
224151101
Washer-lock serrated din.6798a
|
224151101 |
— | ||
| replacement | |||||
|
40
|
40
234451418 Washer-lock serrated din.6798a |
234451418 |
US $5.30 |
||
|
41
|
41
224061121 Washer-flat |
224061121 |
US $6.80 |
||
|
42
|
42
572072100 Bouchon *cap |
572072100 |
US $62.60 |
||
|
43
|
43
517267100
Attache lateral*bracket-side
|
517267100 |
— | ||
|
44
|
44
418001009
Decalque refl. *decal-refl.
|
418001009 |
— | ||
|
45
|
45
414510200 Reflecteur amb.*reflector-ambe |
414510200 |
US $23.41 |
||
|
46
|
46
517294500
Supp. avant *support-front
|
517294500 |
— | ||
|
47
|
47
222064065
Screw-hex.cap din.931
|
222064065 |
— | ||
| replacement | |||||
|
47
|
47
207064044 Screw-hex.cap din.931 |
207064044 |
US $19.20 |
||
|
48
|
48
732600002
Screw-forming hex.hd.fl.gm6174m
|
732600002 |
— | ||
| replacement | |||||
|
48
|
48
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
49
|
49
222851065
Screw-pan hd.ph.din.7985a
|
222851065 |
— | ||
| replacement | |||||
|
49
|
49
208651041 Screw-pan hd.ph.din.7985a |
208651041 |
US $19.60 |
||
|
50
|
50
415049100
Feuille reflect*sheet-reflect
MX Z 670 HO.; |
415049100 |
— | ||
|
51
|
51
517295000
Support gauche *support-lh
|
517295000 |
— | ||
|
52
|
52
224061201 Washer-flat |
224061201 |
US $17.50 |
||
|
53
|
53
415077300
Mousse etanch. *foam-sealing
|
415077300 |
— | ||
|
54
|
54
365901100 Screw-hex.taping 12 |
365901100 |
US $15.60 |
||
|
55
|
55
390906800 Rivet-pop 3/16 *rivet-pop 3/16 |
390906800 |
US $62 |
||
|
56
|
56
414883500
Mousse inf. ga.*foam-lower lh
|
414883500 |
— | ||
|
57
|
57
391301600 Rondelle *washer |
391301600 |
US $30.50 |
||
|
58
|
58
291000339 Bouchon parecho*plug-bumperMX Z 670 HO.; |
291000339 |
from US $4.90 |
||
|
59
|
59
572096200
Bouchon *cap
MX Z 670 HO.; |
572096200 |
— | ||
|
60
|
60
415120000
Mousse lat.dr. *foam-side rh.
MX Z 670 HO.; |
415120000 |
— | ||
|
61
|
61
415120200
Mousse avant dr*foam-front rh
MX Z 670 HO.; |
415120200 |
— | ||
|
62
|
62
415120400
Mousse avant *foam-front
MX Z 670 HO.; |
415120400 |
— | ||
|
63
|
63
415050500
Pare-brise med.*windshield-med.
(1414, 1417, 1450, 1451, 1452, 1453); |
415050500 |
— | ||
|
64
|
64
414939500 Dard pare-brise*dart-windshiel 1=1 pac |
414939500 |
US $6.70 |
||
|
65
|
65
414883800
Mousse arr. dr.*foam-rear rh
|
414883800 |
— | ||
|
66
|
66
414975000
Mousse sup. *foam-upper
|
414975000 |
— | ||
