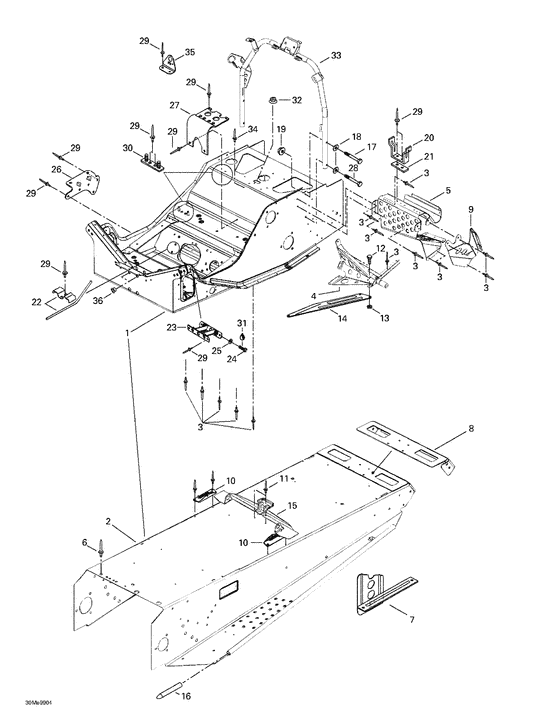

09- frame and accessories Diagram Bombardier MX Z
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
518206300
Support silenc.*support-muffler
MX Z 670 HO.; |
518206300 |
— | ||
| replacement | |||||
|
|
518322635
Support silenc.*support-muffler
MX Z 670 HO.; |
518322635 |
— | ||
|
|
518308730
Plaque sup. dr.*plate-upper rh
|
518308730 |
— | ||
| replacement | |||||
|
|
518308715
Plaque sup. dr.*plate-upper rh
|
518308715 |
— | ||
|
|
518304748
Attache gauche *bracket-lh
|
518304748 |
— | ||
|
|
518320506
Support droit *rh.support
|
518320506 |
— | ||
|
|
518321418
Repose-pied ga.*footrest-lh
|
518321418 |
— | ||
|
|
518316712
Guide corde sou*guide-rope weld.
MX Z 670 HO.; |
518316712 |
— | ||
|
|
518316710
Plaque renf.ga.*plate-reinf.lh
|
518316710 |
— | ||
| replacement | |||||
|
|
518321959
Plaque renf.ga.*plate-reinf.lh
|
518321959 |
— | ||
|
|
518321534
Attache *rh.bracket
|
518321534 |
— | ||
|
1
|
1
518321633
Chassis *frame
Includes 1 - 16.; |
518321633 |
— | ||
|
2
|
2
518321661
Tunnel *frame-forming
|
518321661 |
— | ||
|
3
|
3
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
4
|
4
518320507 Support gauche *lh.support |
518320507 |
US $138.69 |
||
|
5
|
5
518321417
Repose-pied dr.*rh.footrest
|
518321417 |
— | ||
|
6
|
6
390402300 Rivet-pop 3/16 *rivet-pop 3/16 |
390402300 |
US $50 |
||
|
7
|
7
518321535
Attache *lh.bracket
|
518321535 |
— | ||
|
8
|
8
518321301
Capuchon arr. *cap-rear
|
518321301 |
— | ||
|
9
|
9
518308729
Plaque sup. ga.*plate-upper lh
|
518308729 |
— | ||
|
10
|
10
518304747
Attache droite *bracket-rh
|
518304747 |
— | ||
|
11
|
11
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
|
12
|
12
222051665
Screw-hex.cap din.933
|
222051665 |
— | ||
| replacement | |||||
|
12
|
12
207151644 Screw-hex.cap din.933 |
207151644 |
US $11.70 |
||
|
13
|
13
228751045
Nut-flange elastic din.6926
|
228751045 |
— | ||
| replacement | |||||
|
13
|
13
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
14
|
14
518316709
Plaque de renfort dr
|
518316709 |
— | ||
|
15
|
15
518317506
Attache siege *bracket-seat
|
518317506 |
— | ||
|
16
|
16
518304746 Renf.marche-pie*reinf.-foot. |
518304746 |
US $31.59 |
||
|
17
|
17
222063565
Screw-hex.cap din.931
|
222063565 |
— | ||
| replacement | |||||
|
17
|
17
207063544 Screw-hex.cap din.931 |
207063544 |
US $17.70 |
||
|
18
|
18
224061151
Washer-flat din.125a
|
224061151 |
— | ||
| replacement | |||||
|
18
|
18
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
19
|
19
228761045
Nut-flange elastic din.6926
|
228761045 |
— | ||
| replacement | |||||
|
19
|
19
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
20
|
20
518202100 Attache gard.co*brkt-guard belt |
518202100 |
US $15.73 |
||
|
21
|
21
518207500 Renfort *reinforcement |
518207500 |
US $8.38 |
||
|
22
|
22
518315100
Guide corde sou*guide-rope weld.
MX Z 500.; |
518315100 |
— | ||
|
23
|
23
518304741
Plaque renf.sou*plate-reinf.weld
|
518304741 |
— | ||
|
24
|
24
222082065
Screw-hex.cap din.933
|
222082065 |
— | ||
| replacement | |||||
|
24
|
24
207182044 Screw-hex.cap din.933 |
207182044 |
US $9.50 |
||
|
25
|
25
224781140
Washer-lock din.127a
|
224781140 |
— | ||
| replacement | |||||
|
25
|
25
234181401 Washer-lock din*.127b |
234181401 |
US $59.50 |
||
|
26
|
26
518206300
Support silenc.*support-muffler
MX Z 500.; |
518206300 |
— | ||
| replacement | |||||
|
26
|
26
518322635
Support silenc.*support-muffler
MX Z 500.; |
518322635 |
— | ||
|
27
|
27
518310400 Supp.silenc.adm*supp-air intake |
518310400 |
US $13.21 |
||
|
28
|
28
222064065
Screw-hex.cap din.931
|
222064065 |
— | ||
| replacement | |||||
|
28
|
28
207064044 Screw-hex.cap din.931 |
207064044 |
US $19.20 |
||
|
29
|
29
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
30
|
30
518315300
Plaque supp.sou*plate-supp.weld
|
518315300 |
— | ||
|
31
|
31
413707400
Loctite 271 *loctite-271
|
413707400 |
— | ||
| replacement | |||||
|
31
|
31
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
32
|
32
414859400 Bouchon *cap |
414859400 |
US $30.10 |
||
|
33
|
33
518321428
Supp.guidon *supp-handle
|
518321428 |
— | ||
|
34
|
34
390402400 Rivet-pop 3/16 *rivet-pop 3/16MX Z 670 HO.; |
390402400 |
US $22 |
||
|
35
|
35
518310206
Attache soup.ar*brkt.-valve
MX Z 670 HO.; |
518310206 |
— | ||
|
36
|
36
293450166 Ajout *insert |
293450166 |
US $5.71 |
||
