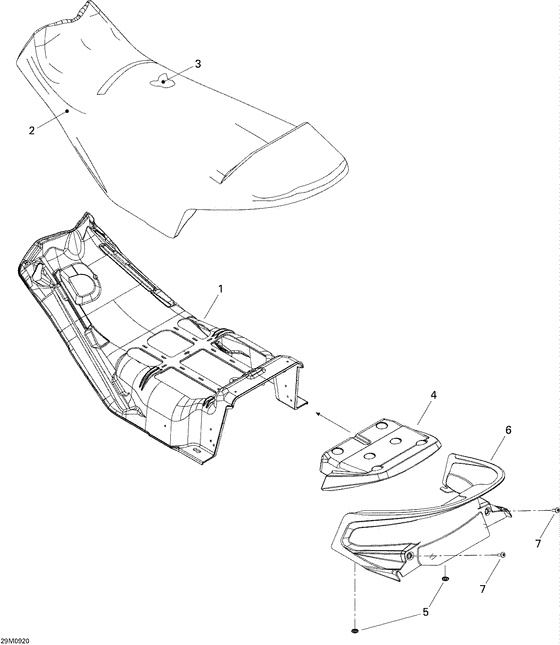

09- seat Diagram Bombardier MX Z
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
510004658 Base siege *seat base |
510004658 |
US $85.65 |
||
|
2
|
2
510004724 Housse de siege*seat cover |
510004724 |
US $443.67 |
||
|
3
|
3
510004918 Mousse siege pu*foam-seat pu |
510004918 |
US $251.89 |
||
|
4
|
4
510004714 Bloc de soutien*support. bloc |
510004714 |
US $19.92 |
||
|
5
|
5
510004715 Nut-push *ecrou pression |
510004715 |
US $22.98 |
||
|
6
|
6
510004736 Enjoliveur *seat cap |
510004736 |
US $33.61 |
||
|
7
|
7
250000324 Screw-torx button head m6 x 25 |
250000324 |
US $2.01 |
