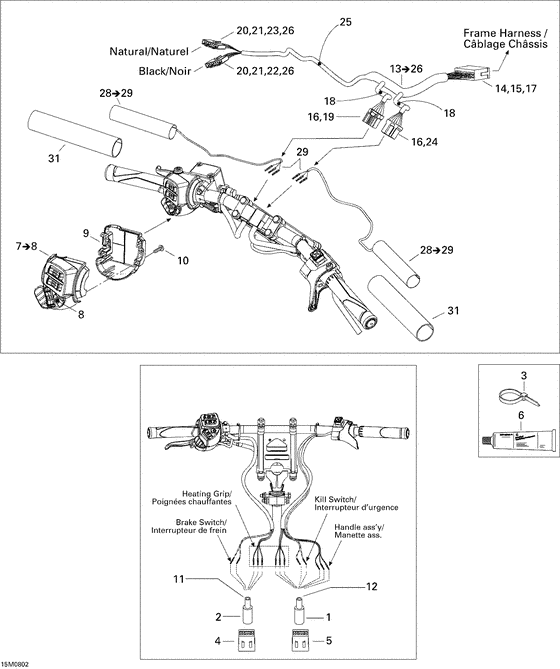

10- steering wiring harness Diagram Bombardier MX Z
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515175830 Gaine basse te*gaine low temp.vinyl |
515175830 |
US $40.80 |
||
|
2
|
2
515175830 Gaine basse te*gaine low temp.vinyl |
515175830 |
US $40.80 |
||
|
3
|
3
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
3
|
3
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
3
|
3
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
3
|
3
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
4
|
4
515175662 Log.pt male .*housing-term.male |
515175662 |
US $9.67 |
||
|
5
|
5
515175817 Log.pt male .*housing-term.male |
515175817 |
US $8.38 |
||
|
6
|
6
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
7
|
7
515176187
Logem.inter. *housing-switch lh
Includes 7 to 8; |
515176187 |
— | ||
| replacement | |||||
|
7
|
7
515177021 LH HOUSINGIncludes 7 to 8; |
515177021 |
US $203.97 |
||
|
8
|
8
515176088 Bouton *switch |
515176088 |
US $23.63 |
||
|
9
|
9
515175926 Plate (cover) house-switch lh |
515175926 |
US $17.37 |
||
|
10
|
10
250000263 Screw type #8-18 hi-lo torx |
250000263 |
US $13.40 |
||
|
11
|
11
409902000 Gaine low temp.vinyl |
409902000 |
US $11.49 |
||
|
12
|
12
409902000 Gaine low temp.vinyl |
409902000 |
US $11.49 |
||
|
13
|
13
515176310 Cablage guidon *wiring harnessIncludes 13 to 26; |
515176310 |
US $97.89 |
||
|
14
|
14
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
15
|
15
515175273 Cosse male *terminal-male |
515175273 |
US $73.10 |
||
|
16
|
16
515175231 Cosse femelle *terminal-female |
515175231 |
US $58.70 |
||
|
17
|
17
515175352 Logement male *housing-male |
515175352 |
US $13.12 |
||
|
18
|
18
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
19
|
19
515175543 Log.term.femel.*housing-term.female |
515175543 |
US $8.38 |
||
|
20
|
20
515175808 Cosse femelle *terminal-femal. |
515175808 |
US $62.60 |
||
|
21
|
21
515175809 Verrou *lock-tab |
515175809 |
US $8.38 |
||
|
22
|
22
515175807 Log.term.femel.*housing-term.female |
515175807 |
US $14.60 |
||
|
23
|
23
515175810 Log.term.femel.*housing-term.female |
515175810 |
US $11.02 |
||
|
24
|
24
515175819 Logement femel.*housing-female |
515175819 |
US $7.23 |
||
|
25
|
25
515175830 Gaine basse te*gaine low temp.vinyl |
515175830 |
US $40.80 |
||
|
26
|
26
515175941 Cosse femelle *terminal-femal. |
515175941 |
US $3.54 |
||
|
28
|
28
506152422 Element chauff.*heated filmIncludes 28 to 29; |
506152422 |
US $67.29 |
||
|
29
|
29
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
31
|
31
506152423 Isolant *isolant |
506152423 |
US $9.78 |
||
