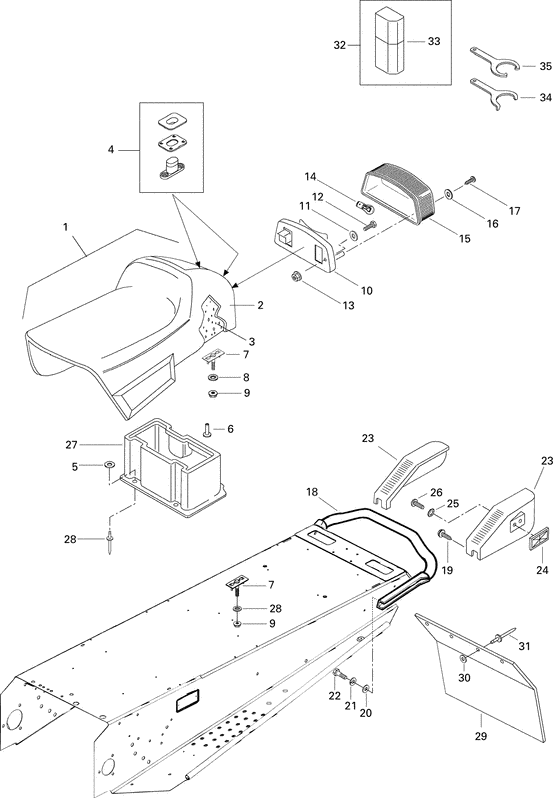

09- seat 583 Diagram Bombardier MX Z
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
414971501
New Genuine Part
|
414971501 |
— | ||
|
2
|
2
414971503
New Genuine Part
|
414971503 |
— | ||
|
3
|
3
414891300
Mousse de siege*foam-seat
|
414891300 |
— | ||
|
4
|
4
414728000 Boucle de siege*buckle-seat |
414728000 |
US $14.25 |
||
|
5
|
5
517225900 Washer - flat |
517225900 |
US $2.40 |
||
|
7
|
7
732605024
Screw-weld
|
732605024 |
— | ||
|
8
|
8
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
9
|
9
228761045
Nut-flange elastic din.6926
|
228761045 |
— | ||
| replacement | |||||
|
9
|
9
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
10
|
10
414513600
Boitier lumiere*housing-20/18
|
414513600 |
— | ||
| replacement | |||||
|
10
|
10
510004061 Boitier lumiere*housing-20/18 |
510004061 |
US $45.85 |
||
|
11
|
11
517225900 Washer - flat |
517225900 |
US $2.40 |
||
|
12
|
12
222053065
Screw-hex.cap din.931
|
222053065 |
— | ||
| replacement | |||||
|
12
|
12
207053044 Screw-hex.cap din.931 |
207053044 |
US $15.10 |
||
|
13
|
13
228751045
Nut-flange elastic din.6926
|
228751045 |
— | ||
| replacement | |||||
|
13
|
13
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
14
|
14
410504000
Bulb -tail lamp 12v/21/5w
|
410504000 |
— | ||
| replacement | |||||
|
14
|
14
520000758 Ampoule *bulb |
520000758 |
US $160.50 |
||
|
15
|
15
414513700 Lens 21/68 |
414513700 |
US $31.06 |
||
|
16
|
16
414516400 Washer |
414516400 |
US $0.82 |
||
|
17
|
17
414516300
Screw
|
414516300 |
— | ||
| replacement | |||||
|
17
|
17
209632540 Screw-tapp.pan.hd.ph.din.7981c |
209632540 |
US $1.31 |
||
|
18
|
18
518314000
Pare-chocs *bumper
|
518314000 |
— | ||
| replacement | |||||
|
18
|
18
518322708 Pare-chocs arr.*bumper-rear |
518322708 |
US $97.89 |
||
|
19
|
19
365901100 Screw-hex.taping 12 |
365901100 |
US $15.60 |
||
|
20
|
20
224081171
Washer-flat din.125a
|
224081171 |
— | ||
| replacement | |||||
|
20
|
20
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
21
|
21
224781140
Washer-lock din.127a
|
224781140 |
— | ||
| replacement | |||||
|
21
|
21
234181401 Washer-lock din*.127b |
234181401 |
US $59.50 |
||
|
22
|
22
222082065
Screw-hex.cap din.933
|
222082065 |
— | ||
| replacement | |||||
|
22
|
22
207182044 Screw-hex.cap din.933 |
207182044 |
US $9.50 |
||
|
23
|
23
580642000
Enjoliv.dr.ass.*mould.-rh assy.
Includes 23 to 26; |
580642000 |
— | ||
|
23
|
23
580642100
Enjoliv.ga.ass.*mould.-lh assy.
Includes 23 to 26; |
580642100 |
— | ||
|
24
|
24
414510100
Reflecteur roug*reflector-red
|
414510100 |
— | ||
|
25
|
25
224151101
Washer-lock serrated din.6798a
|
224151101 |
— | ||
| replacement | |||||
|
25
|
25
234451418 Washer-lock serrated din.6798a |
234451418 |
US $5.30 |
||
|
26
|
26
222851065
Screw-pan hd.ph.din.7985a
|
222851065 |
— | ||
| replacement | |||||
|
26
|
26
208651041 Screw-pan hd.ph.din.7985a |
208651041 |
US $19.60 |
||
|
27
|
27
572039802
Coffre *box
|
572039802 |
— | ||
| replacement | |||||
|
27
|
27
572106300
Coffre arriere *trunk-rear
|
572106300 |
— | ||
|
28
|
28
390908000
Rivet-pop 3/16 *rivet-pop 3/16
|
390908000 |
— | ||
| replacement | |||||
|
28
|
28
293150100 Rivet-pop 3/16 *pop rivet 3/16 |
293150100 |
US $74 |
||
|
29
|
29
572030100
Garde-neige *guard-snow
|
572030100 |
— | ||
| replacement | |||||
|
29
|
29
520000162
Garde-neige *snow guard
|
520000162 |
— | ||
|
30
|
30
517225900 Washer - flat |
517225900 |
US $2.40 |
||
|
31
|
31
390908000
Rivet-pop 3/16 *rivet-pop 3/16
|
390908000 |
— | ||
| replacement | |||||
|
31
|
31
293150100 Rivet-pop 3/16 *pop rivet 3/16 |
293150100 |
US $74 |
||
|
32
|
32
529027900
Trousse outils *tool kit
|
529027900 |
— | ||
| replacement | |||||
|
32
|
32
529035500 Trousse outils *tool kit |
529035500 |
US $53.01 |
||
|
33
|
33
572036310
Coffre outils *box-tool assy.
|
572036310 |
— | ||
|
34
|
34
529019000
New Genuine Part
|
529019000 |
— | ||
