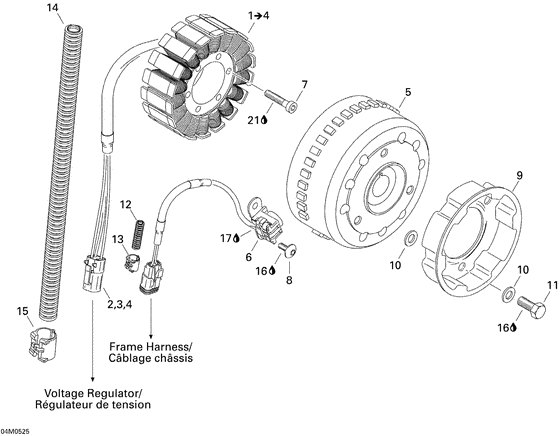

03- magneto Diagram Bombardier MX Z
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420866065
Plaque reacteur*plate-stator
Includes 1 to 4; |
420866065 |
— | ||
| replacement | |||||
|
1
|
1
420866068 Plaque reacteur*plate-statorIncludes 1 to 4; |
420866068 |
US $702.75 |
||
|
2
|
2
278001473 Bloc 4 circ.mal*housing-tab |
278001473 |
US $30.19 |
||
|
3
|
3
515175568 Terminal male *treminal-male |
515175568 |
US $9.76 |
||
|
4
|
4
278001474 Cale 4 circ.mal*wedge-4 ways m |
278001474 |
US $4.49 |
||
|
5
|
5
420866040
Volant moteur *flywheel-magneto
|
420866040 |
— | ||
| replacement | |||||
|
5
|
5
420866041
Volant moteur *flywheel-magneto
|
420866041 |
— | ||
|
6
|
6
410922963
Capteur ass. *pickup-assy.
|
410922963 |
— | ||
|
7
|
7
420241816 Screw-allen m6 x 40 |
420241816 |
US $19.60 |
||
|
8
|
8
420640321
Screw-taptite
|
420640321 |
— | ||
|
9
|
9
420852532 Poulie *pulley |
420852532 |
US $27.34 |
||
| replacement | |||||
|
9
|
9
420852533 Poulie *pulley |
420852533 |
US $27.34 |
||
|
10
|
10
420827405 Rondelle plate *flat washer |
420827405 |
US $6.54 |
||
|
11
|
11
207181644 Screw-hex.cap din.933 |
207181644 |
US $14.50 |
||
|
12
|
12
420460012 Tube *corrugated tube |
420460012 |
US $5.07 |
||
|
13
|
13
420960890 Attache *clip |
420960890 |
US $1.87 |
||
|
14
|
14
420660911 Tube *corrugated tube |
420660911 |
US $8.13 |
||
|
15
|
15
420960892 Attache *clip |
420960892 |
US $1.87 |
||
|
16
|
16
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
