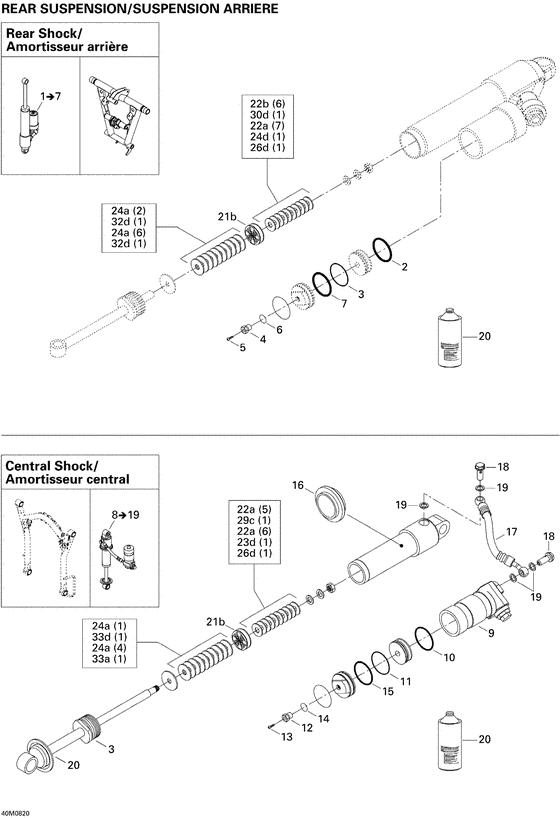

08- take apart shock, rear Diagram Bombardier MX Z
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503191807 Amort. arr. *shock-rearIncludes 1 to 7; |
503191807 |
US $709.89 |
||
|
2
|
2
415093807 Joint torique *o-ring |
415093807 |
US $30.57 |
||
|
3
|
3
415093806 Bague *ring-stop |
415093806 |
US $14.67 |
||
|
4
|
4
505070398 Soupape air *valve-air+ring |
505070398 |
US $17.12 |
||
|
5
|
5
505070399 Screw *vis |
505070399 |
US $3.83 |
||
|
6
|
6
505070400 Joint torique *o ring |
505070400 |
US $4.17 |
||
|
7
|
7
415093804 Joint torique *o-ring |
415093804 |
US $4.17 |
||
|
8
|
8
503191809
Amort. cent *shock-cent
Includes 8 to 19; |
503191809 |
— | ||
|
9
|
9
415128596 Reservoir *reservoir |
415128596 |
US $305.97 |
||
|
10
|
10
415093807 Joint torique *o-ring |
415093807 |
US $30.57 |
||
|
11
|
11
415093806 Bague *ring-stop |
415093806 |
US $14.67 |
||
|
12
|
12
505070398 Soupape air *valve-air+ring |
505070398 |
US $17.12 |
||
|
13
|
13
505070399 Screw *vis |
505070399 |
US $3.83 |
||
|
14
|
14
505070400 Joint torique *o ring |
505070400 |
US $4.17 |
||
|
15
|
15
415093804 Joint torique *o-ring |
415093804 |
US $4.17 |
||
|
16
|
16
415128598 Collet ressort*collar-spring |
415128598 |
US $48.93 |
||
|
17
|
17
415128595 Boyau assemble *hose ass y |
415128595 |
US $144.81 |
||
|
18
|
18
415093810 Boulon *bolt |
415093810 |
US $14.67 |
||
|
19
|
19
415038700 Joint torique *packing |
415038700 |
US $36.69 |
||
|
20
|
20
293600035 Huile amortis. *oil-shock |
293600035 |
US $89.73 |
||
|
21e
|
21e
414888306
Piston (2 x 0.3-4) (c36)
|
414888306 |
— | ||
|
21g
|
21g
414888307
Piston (2 x 0.3-6) (c36)
|
414888307 |
— | ||
|
21a
|
21a
414888304
Piston (c36)
|
414888304 |
— | ||
|
21c
|
21c
414888305
Piston comp. *piston-comp.
|
414888305 |
— | ||
|
22a
|
22a
415039100
Lame soupape *leaf-valve
|
415039100 |
— | ||
|
22b
|
22b
414888318
Lame soupape *leaf-valve
|
414888318 |
— | ||
|
22c
|
22c
414888319
Lame soupape *leaf-valve
|
414888319 |
— | ||
|
23b
|
23b
414888320
New Genuine Part
|
414888320 |
— | ||
|
23c
|
23c
414888321 New Genuine Part |
414888321 |
US $1.96 |
||
|
24a
|
24a
415039000
Lame soupape *leaf-valve
|
415039000 |
— | ||
|
24b
|
24b
414888322
New Genuine Part
|
414888322 |
— | ||
|
24c
|
24c
414888323
Lame soupape *leaf-valve
|
414888323 |
— | ||
|
26b
|
26b
414888324 Lame soupape *leaf-valve |
414888324 |
US $1.96 |
||
|
26c
|
26c
414888325
New Genuine Part
|
414888325 |
— | ||
|
27d
|
27d
414888340
New Genuine Part
|
414888340 |
— | ||
|
28b
|
28b
414888326
Lame soupape *leaf-valve
|
414888326 |
— | ||
|
28c
|
28c
414888327
Lame soupape *leaf-valve
|
414888327 |
— | ||
|
28d
|
28d
414888328
New Genuine Part
|
414888328 |
— | ||
|
30b
|
30b
414888329 Lame soupape *leaf-valve |
414888329 |
US $5.83 |
||
|
30c
|
30c
414888330
Lame soupape *leaf-valve
|
414888330 |
— | ||
|
32a
|
32a
414888331
Lame soupape *leaf-valve
|
414888331 |
— | ||
|
32b
|
32b
414888332
New Genuine Part
|
414888332 |
— | ||
|
32c
|
32c
414888333 New Genuine Part |
414888333 |
US $1.96 |
||
|
32d
|
32d
415038900
Lame soupape *leaf-valve
|
415038900 |
— | ||
|
33a
|
33a
414888334
New Genuine Part
|
414888334 |
— | ||
|
33b
|
33b
414888335
Lame soupape *leaf-valve
|
414888335 |
— | ||
|
33c
|
33c
414888336
New Genuine Part
|
414888336 |
— | ||
|
33d
|
33d
414888337
Lame soupape *leaf-valve
|
414888337 |
— | ||
|
36d
|
36d
415038800
Lame soupape *leaf-valve
|
415038800 |
— | ||
|
36a
|
36a
503189538
Lame soupape *leaf-valve 12xt0.254
|
503189538 |
— | ||
|
36b
|
36b
414888338
Lame soupape *leaf-valve
|
414888338 |
— | ||
|
36c
|
36c
414888339
New Genuine Part
|
414888339 |
— |
