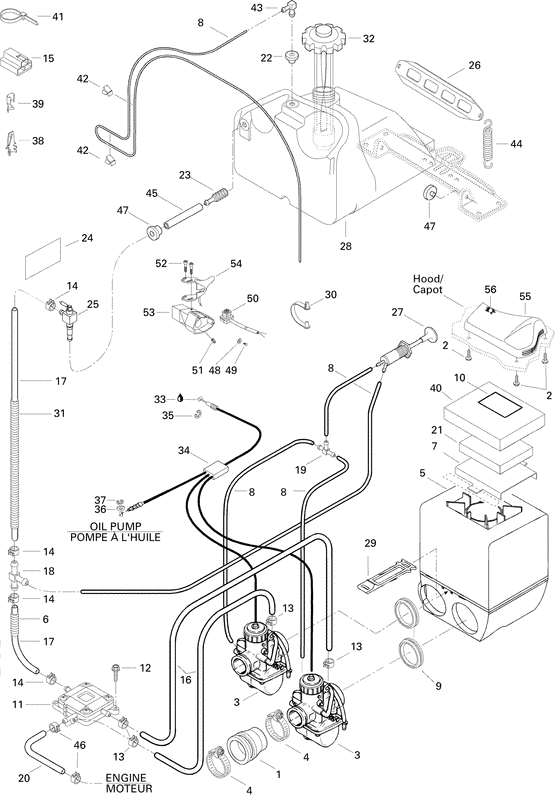

02- fuel system Diagram Bombardier MX Z
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
570049200
Adapteur carb. *adaptor-carb.
|
570049200 |
— | ||
|
2
|
2
365901100 Screw-hex.taping 12 |
365901100 |
US $15.60 |
||
|
3
|
3
403127700
Carburateur vm 40-84 (pdm)
|
403127700 |
— | ||
|
3
|
3
403127800
Carburateur vm 40-85 (mag)
|
403127800 |
— | ||
|
4
|
4
414532800
Collet *collar
|
414532800 |
— | ||
|
5
|
5
580638603
New Genuine Part
Includes 7,9,10,21,29,40; |
580638603 |
— | ||
|
6
|
6
414942900
Gaine
|
414942900 |
— | ||
|
7
|
7
517283900 Grille adm. *grill-intake |
517283900 |
US $9.71 |
||
|
8
|
8
414296900
Conduit amorc. *line-prim.1/8
|
414296900 |
— | ||
| replacement | |||||
|
8
|
8
415080100 Boyau amorce *line-primer |
415080100 |
US $75.90 |
||
|
9
|
9
570049000
Adap.admis.vm40*adap-air vm-40
|
570049000 |
— | ||
|
10
|
10
414161500
New Genuine Part
|
414161500 |
— | ||
|
11
|
11
403901200
Pompe a essence*pump-fuel
|
403901200 |
— | ||
|
12
|
12
732600005
Screw-forming hex.hd.fl.gm6174m
|
732600005 |
— | ||
| replacement | |||||
|
12
|
12
210262080 Screw-forming hex.hd.fl.gm6174m |
210262080 |
US $2.72 |
||
|
13
|
13
414554800 Bride a ressort*clamp-spring |
414554800 |
US $11.70 |
||
|
14
|
14
414655700 Bride a ressort*clamp-spring |
414655700 |
US $9.50 |
||
|
15
|
15
409008500 Logement femel.*housing-female |
409008500 |
US $3.89 |
||
|
16
|
16
414834000
Conduit *line
|
414834000 |
— | ||
| replacement | |||||
|
16
|
16
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
17
|
17
414931400
Conduit d ess. *line-fuel
|
414931400 |
— | ||
| replacement | |||||
|
17
|
17
415080300 Conduit d ess. *line-fuel |
415080300 |
US $190.60 |
||
|
18
|
18
414875200
Raccord en t *fitting-t
|
414875200 |
— | ||
| replacement | |||||
|
18
|
18
415119300 Raccord en t *fitting-t |
415119300 |
US $30.10 |
||
|
19
|
19
414222400 Raccord en t *fitting-t |
414222400 |
US $21.90 |
||
|
20
|
20
414286700
Boyau *hose-rubber
|
414286700 |
— | ||
| replacement | |||||
|
20
|
20
415079800
Boyau 1/4 i.d. *hose-1/4 i.d.
|
415079800 |
— | ||
|
21
|
21
415014800 Filtre a air *filter-air |
415014800 |
US $12.19 |
||
|
22
|
22
570135100
Passe-fils *grommet
|
570135100 |
— | ||
| replacement | |||||
|
22
|
22
709200285
GROMMET
|
709200285 |
— | ||
|
23
|
23
414872100 Crepine *filter-fuel |
414872100 |
US $14.03 |
||
|
24
|
24
414931500
Etiquette secur*label-security
|
414931500 |
— | ||
|
25
|
25
415018400
New Genuine Part
|
415018400 |
— | ||
|
26
|
26
517249200
Support res.ess*support-tank fuel
|
517249200 |
— | ||
|
27
|
27
414479200
Amorceur *valve-primer
|
414479200 |
— | ||
| replacement | |||||
|
27
|
27
415060500 Amorceur *primer |
415060500 |
US $40.04 |
||
|
28
|
28
572077700
New Genuine Part
|
572077700 |
— | ||
|
29
|
29
570048800
Loquet *latch
|
570048800 |
— | ||
| replacement | |||||
|
29
|
29
570069700
Loquet *latch
|
570069700 |
— | ||
|
30
|
30
414379300 Pince cable *clip-cable |
414379300 |
US $30.35 |
||
|
31
|
31
415011500
Gaine *tubing
|
415011500 |
— | ||
| replacement | |||||
|
31
|
31
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
32
|
32
414971000
Bouchon res.ess*cap-fuel tank
|
414971000 |
— | ||
| replacement | |||||
|
32
|
32
415048800 Bouchon res.ess*cap-fuel tank |
415048800 |
US $63.21 |
||
|
33
|
33
413701700
New Genuine Part
|
413701700 |
— | ||
|
34
|
34
414966201
Cable accelerat*cable-throttle
|
414966201 |
— | ||
|
35
|
35
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
36
|
36
414753300
Rondelle *washer
|
414753300 |
— | ||
|
37
|
37
414753500 Circlip-type bs n |
414753500 |
US $9.20 |
||
|
38
|
38
561503400
Cosse male *terminal-male
|
561503400 |
— | ||
| replacement | |||||
|
38
|
38
409210000 Cosse male *terminal-male |
409210000 |
US $58.30 |
||
|
39
|
39
561503200
Cosse femelle *terminal-femal.
|
561503200 |
— | ||
| replacement | |||||
|
39
|
39
515175253 Cosse femelle *terminal-femal |
515175253 |
US $73.10 |
||
|
40
|
40
415012700
Mousse ext. *foam-lower
|
415012700 |
— | ||
| replacement | |||||
|
40
|
40
415105900
Mousse ext. *foam-lower
|
415105900 |
— | ||
|
41
|
41
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
42
|
42
414227300 Clip - spring |
414227300 |
US $20.70 |
||
|
43
|
43
414814100 Raccord male *connector-male |
414814100 |
US $14.35 |
||
|
44
|
44
517182100 Ressort *spring |
517182100 |
US $55.85 |
||
|
45
|
45
414976300
Boyau polyure *hose-polyurethane
|
414976300 |
— | ||
|
46
|
46
414415200 Bride a ressort*clamp-spring |
414415200 |
US $11.70 |
||
|
47
|
47
570273900 Passe-fils *grommet |
570273900 |
US $11.76 |
||
|
48
|
48
391300700
Washer-flat
|
391300700 |
— | ||
|
49
|
49
414473200 Screw-thread cut.ph.pan type25 |
414473200 |
US $10.70 |
||
| replacement | |||||
|
49
|
49
211000098 Screw-thread cut.ph.pan type25 |
211000098 |
US $49.10 |
||
|
50
|
50
414612700
Inter.urgence *switch-kill
|
414612700 |
— | ||
|
51
|
51
414440800 Screw-set din 916-a2 |
414440800 |
US $19.45 |
||
|
52
|
52
732601143 Screw-shoulder |
732601143 |
US $38.90 |
||
|
53
|
53
572028600
Logement acc. *housing-throttle
|
572028600 |
— | ||
|
54
|
54
572057000
Manette ass. *handle-assy
|
572057000 |
— | ||
|
55
|
55
572077900 Couvercle adm. *cover-intake |
572077900 |
US $14.25 |
||
|
56
|
56
414972600 Filtre a air *filter-air |
414972600 |
US $42.81 |
||
