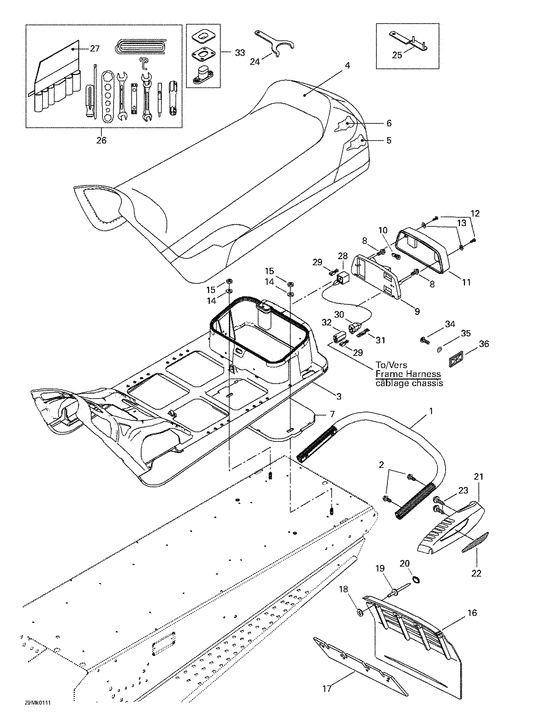

09- seat and accessories Diagram Bombardier MX Z
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
529035582 Cle de reglage *wrench-adjust.X. Europe.; |
529035582 |
US $17.29 |
||
|
|
414510200 Reflecteur amb.*reflector-ambeEurope.; |
414510200 |
US $23.41 |
||
|
|
572092300
Enjoliveur ga. *lh.moulding
Standard. Adrenaline.; |
572092300 |
— | ||
| replacement | |||||
|
|
861777800
Enjoliveur ga. *mould.-lh black
Standard. Adrenaline.; |
861777800 |
— | ||
|
|
516000238
Reflecteur ga. *reflector-lh
Standard. Adrenaline.; |
516000238 |
— | ||
|
|
510003859
Housse de siege*cover-seat
X.; |
510003859 |
— | ||
|
1
|
1
518322438
Pare-chocs arr.*bumper-rear
|
518322438 |
— | ||
| replacement | |||||
|
1
|
1
518322708 Pare-chocs arr.*bumper-rear |
518322708 |
US $97.89 |
||
|
2
|
2
207682044 Screw-hex.flange din.6921 |
207682044 |
US $14.80 |
||
|
3
|
3
572107600
Base siege *base-seat
|
572107600 |
— | ||
| replacement | |||||
|
3
|
3
510003983
Base siege *base-seat
|
510003983 |
— | ||
|
4
|
4
510003858
Housse de siege*cover-seat
|
510003858 |
— | ||
|
5
|
5
510003840
Mousse de siege*foam-seat
|
510003840 |
— | ||
|
6
|
6
510003841
Mousse de siege*foam-seat
|
510003841 |
— | ||
| replacement | |||||
|
6
|
6
510004255
Mousse de siege*foam-seat
|
510004255 |
— | ||
|
7
|
7
572107601 Sous-coffre *chest-under |
572107601 |
US $19.92 |
||
|
8
|
8
732603006 Screw-plastite hex.wr.hd. |
732603006 |
US $19.60 |
||
|
9
|
9
414513600
Boitier lumiere*housing-20/18
|
414513600 |
— | ||
| replacement | |||||
|
9
|
9
510004061 Boitier lumiere*housing-20/18 |
510004061 |
US $45.85 |
||
|
10
|
10
410504000
Bulb -tail lamp 12v/21/5w
|
410504000 |
— | ||
| replacement | |||||
|
10
|
10
520000758 Ampoule *bulb |
520000758 |
US $160.50 |
||
|
11
|
11
414513700 Lens 21/68 |
414513700 |
US $31.06 |
||
|
12
|
12
209632540 Screw-tapp.pan.hd.ph.din.7981c |
209632540 |
US $1.31 |
||
|
13
|
13
414516400 Washer |
414516400 |
US $0.82 |
||
|
14
|
14
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
15
|
15
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
16
|
16
572092100 Garde-neige *guard-snow |
572092100 |
US $96.87 |
||
|
17
|
17
572108200 Renfort *reinforcement |
572108200 |
US $14.67 |
||
|
18
|
18
517225900 Washer - flat |
517225900 |
US $2.40 |
||
|
19
|
19
390908000
Rivet-pop 3/16 *rivet-pop 3/16
|
390908000 |
— | ||
| replacement | |||||
|
19
|
19
293150100 Rivet-pop 3/16 *pop rivet 3/16 |
293150100 |
US $74 |
||
|
20
|
20
415073300 Capuchon *cap |
415073300 |
US $29.15 |
||
|
21
|
21
572092200
Enjoliveur dr. *rh.moulding
Standard. Adrenaline.; |
572092200 |
— | ||
| replacement | |||||
|
21
|
21
861777700 Enjoliveur dr. *mould.-rear rh blackStandard. Adrenaline.; |
861777700 |
US $36.69 |
||
|
22
|
22
516000237
Reflecteur dr. *reflector-rh
Standard. Adrenaline.; |
516000237 |
— | ||
|
23
|
23
365901100 Screw-hex.taping 12Standard. Adrenaline.; |
365901100 |
US $15.60 |
||
|
24
|
24
529032900
Cle de reglage *wrench-adj.
Standard. Adrenaline.; |
529032900 |
— | ||
|
25
|
25
520000126 Cle de regl.sou*wrench-adjust.weld. |
520000126 |
US $11.17 |
||
|
26
|
26
529035596 Trousse outils *tool kitIncludes 26 - 27.; |
529035596 |
US $50.97 |
||
|
27
|
27
520000047
Sac a outils *bag-tool
|
520000047 |
— | ||
| replacement | |||||
|
27
|
27
520000552
Sac a outils *bag-tool
|
520000552 |
— | ||
|
28
|
28
515175250
Bloc invers. *block-dim.switch
|
515175250 |
— | ||
|
29
|
29
561503100 Cosse femelle *terminal-femal. |
561503100 |
US $52 |
||
|
30
|
30
409204200 Logement male *housing-male |
409204200 |
US $50.70 |
||
|
31
|
31
409206100
Cosse male *terminal-male
|
409206100 |
— | ||
| replacement | |||||
|
31
|
31
409210000 Cosse male *terminal-male |
409210000 |
US $58.30 |
||
|
32
|
32
409204300
Logement femel.*housing-female
|
409204300 |
— | ||
|
33
|
33
414728000 Boucle de siege*buckle-seat |
414728000 |
US $14.25 |
||
|
34
|
34
208651041 Screw-pan hd.ph.din.7985aX. Europe.; |
208651041 |
US $19.60 |
||
|
35
|
35
234451418 Washer-lock serrated din.6798aX. Europe.; |
234451418 |
US $5.30 |
||
|
36
|
36
414510100
Reflecteur roug*reflector-red
X. Europe.; |
414510100 |
— | ||
