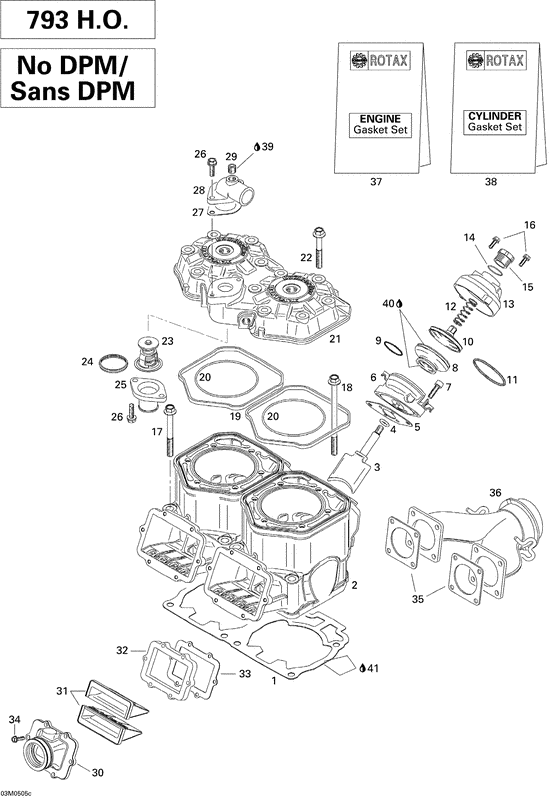

01- cylinder, exhaust manifold and reed valve 793ho no pdm Diagram Bombardier MX Z
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420931838 Joint 0.5 *gasket 0.5 |
420931838 |
US $19.33 |
||
|
1
|
1
420931837 Joint 0.6 *gasket 0.6 |
420931837 |
US $20.37 |
||
|
1
|
1
420931964 Joint 0.7 *gasket 0.7 |
420931964 |
US $23.41 |
||
|
1
|
1
420931839 Joint 0.8 *gasket 0.8 |
420931839 |
US $23.41 |
||
|
2
|
2
420613852 Cylindre nicas.*cylinder-nicasil |
420613852 |
US $912.87 |
||
|
3
|
3
420854465 Soupape echap. *valve-exhaust |
420854465 |
US $59.13 |
||
|
4
|
4
420430110 Joint torique *o ring |
420430110 |
US $57.10 |
||
|
5
|
5
420931542 Joint *gasket |
420931542 |
US $9.13 |
||
|
6
|
6
420854455 Boitier *housing-valve |
420854455 |
US $74.41 |
||
|
7
|
7
205062544 Screw-socket hd.din.912 |
205062544 |
US $14.60 |
||
|
8
|
8
420260729 Manchon *bellows |
420260729 |
US $34.65 |
||
|
9
|
9
420838255 Spring-hose |
420838255 |
US $47.25 |
||
|
10
|
10
420854449 Soupape echapp.*valve-exhaust |
420854449 |
US $39.95 |
||
|
11
|
11
420939280
Spring-hose
|
420939280 |
— | ||
| replacement | |||||
|
11
|
11
420939281 Hose Spring |
420939281 |
US $9.45 |
||
|
12
|
12
420239941 Ressort *spring |
420239941 |
US $7 |
||
|
13
|
13
420911558 Couvercle soup.*cover-valve |
420911558 |
US $26.49 |
||
|
14
|
14
420430220 Joint torique *o ring |
420430220 |
US $50.40 |
||
|
15
|
15
420241221 Vis ajustement *screw-adjuster |
420241221 |
US $12.19 |
||
|
16
|
16
420241270 Screw-taptite m5 |
420241270 |
US $20.10 |
||
|
17
|
17
420640524 Screw-hex collar |
420640524 |
US $11.17 |
||
|
18
|
18
420640534 Screw-hex collar |
420640534 |
US $13.21 |
||
|
19
|
19
420931590 Bague caout. *ring-rubber |
420931590 |
US $13.16 |
||
|
20
|
20
420931410 Joint torique *o ring |
420931410 |
US $21.42 |
||
|
21
|
21
420923827
Couvercle cyl. *cover-cyl.head
|
420923827 |
— | ||
| replacement | |||||
|
21
|
21
420923828 Couvercle cyl. *cover-cyl.head |
420923828 |
US $622.17 |
||
|
22
|
22
420941621
Screw-hex collar m8x56,5
|
420941621 |
— | ||
| replacement | |||||
|
22
|
22
420941627 Collar-hex. screw m8x56,5 |
420941627 |
US $8.13 |
||
|
23
|
23
420922518
Thermostat *thermostat
|
420922518 |
— | ||
| replacement | |||||
|
23
|
23
420922519 Thermostat *thermostat |
420922519 |
US $75.16 |
||
|
24
|
24
420931272 Sealing ring |
420931272 |
US $15.27 |
||
|
25
|
25
420922025 Raccord sortie *bent outlet socket |
420922025 |
US $28.51 |
||
|
26
|
26
420941250 Screw-tapping |
420941250 |
US $5.07 |
||
|
27
|
27
420850338 Joint *gasket |
420850338 |
US $10.17 |
||
|
28
|
28
420922062 Raccord sortie *bent outlet socket |
420922062 |
US $46.60 |
||
|
29
|
29
420240480 Screw-plug 1/8-27 npt |
420240480 |
US $7 |
||
|
30
|
30
420667105
Tubulure d adm.*socket-intake
|
420667105 |
— | ||
| replacement | |||||
|
30
|
30
420667109
Tubulure d adm.*socket-intake
|
420667109 |
— | ||
|
31
|
31
420924790 Reed valve assy |
420924790 |
US $92.77 |
||
|
32
|
32
420924820 Distance flange |
420924820 |
US $27.49 |
||
|
33
|
33
420630815 Gasket |
420630815 |
US $13.21 |
||
|
34
|
34
420641840 Screw m5x35, taptite |
420641840 |
US $4.05 |
||
|
35
|
35
420931850 Joint *gasket |
420931850 |
US $14.25 |
||
|
36
|
36
420973713 Collect.echapp.*exhaust manifold |
420973713 |
US $296.79 |
||
|
37
|
37
420888741 Ens.joint etanc*kit-gasket engine |
420888741 |
US $263.13 |
||
|
38
|
38
420888745 Ens.joint etanc*kit-gasket cylinder |
420888745 |
US $128.49 |
||
|
39
|
39
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
40
|
40
420297906 Compose etanche*compound sealing |
420297906 |
US $39.73 |
||
|
41
|
41
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
