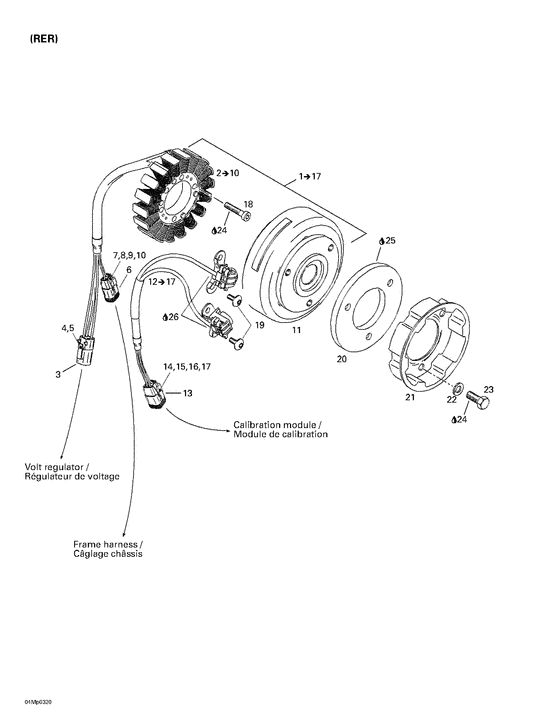

03- magneto (12V, 360W) Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
410922946
Plaque reacteur*plate-stator a
Includes 2 - 10.; |
410922946 |
— | ||
| replacement | |||||
|
2
|
2
410922993
Plaque reacteu*plate-stator assy
Includes 2 - 10.; |
410922993 |
— | ||
|
3
|
3
278001473 Bloc 4 circ.mal*housing-tab |
278001473 |
US $30.19 |
||
|
4
|
4
515175568 Terminal male *treminal-male |
515175568 |
US $9.76 |
||
|
5
|
5
278001474 Cale 4 circ.mal*wedge-4 ways m |
278001474 |
US $4.49 |
||
|
6
|
6
515175670 Logement femel.*housing-female |
515175670 |
US $10.51 |
||
|
7
|
7
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
8
|
8
278001661 Cosse femelle *terminal-femal |
278001661 |
US $8.38 |
||
|
9
|
9
515175675 Verrou femelle *lock-female |
515175675 |
US $29.35 |
||
|
10
|
10
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
11
|
11
410922947 Volant moteur *flywheel |
410922947 |
US $447.73 |
||
|
12
|
12
410922948 Capteur ass. *pickup-assy.Includes 12 - 17.; |
410922948 |
US $179.49 |
||
|
13
|
13
515175672 Bloc 4 circ.mal*housing-tab |
515175672 |
US $13.60 |
||
|
14
|
14
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
15
|
15
278001661 Cosse femelle *terminal-femal |
278001661 |
US $8.38 |
||
|
16
|
16
515175677 Cale 4 circ.mal*wedge-4 ways m |
515175677 |
US $6.26 |
||
|
17
|
17
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
18
|
18
205063044 Screw-socket hd.din.912 |
205063044 |
US $21.90 |
||
|
19
|
19
420640321
Screw-taptite
|
420640321 |
— | ||
|
20
|
20
420866756 Contrepoids *flywheel |
420866756 |
US $97.89 |
||
|
21
|
21
420852532 Poulie *pulley |
420852532 |
US $27.34 |
||
| replacement | |||||
|
21
|
21
420852533 Poulie *pulley |
420852533 |
US $27.34 |
||
|
22
|
22
420945752 Washer-lock din.128 |
420945752 |
US $19.60 |
||
|
23
|
23
207182044 Screw-hex.cap din.933 |
207182044 |
US $9.50 |
||
|
24
|
24
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
25
|
25
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
26
|
26
293530011
Scellant *sealant
|
293530011 |
— | ||
