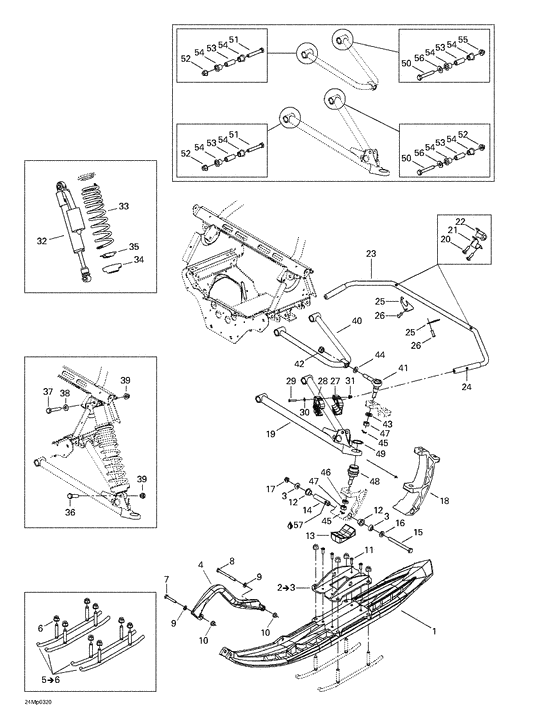

07- front suspension and ski Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
505070903
Amort.avant ga *shock-front lh
|
505070903 |
— | ||
|
|
505070938
Amort.avant dr *shock-front rh
|
505070938 |
— | ||
| replacement | |||||
|
|
505070904
Amort. avant dr*shock-front rh
|
505070904 |
— | ||
|
|
505070937
Amort.avant ga *shock-front lh
|
505070937 |
— | ||
| replacement | |||||
|
|
505070903
Amort.avant ga *shock-front lh
|
505070903 |
— | ||
|
|
505071162
Ressort peint *spring-paint
|
505071162 |
— | ||
|
|
505071091
Bras inf.gauche*arm-lower l.h.
|
505071091 |
— | ||
| replacement | |||||
|
|
860512400 Bras inf.ass.g.*lower ars lh ass. |
860512400 |
US $254.97 |
||
|
|
505070881 Coussinet stab.*bushing-torsion bar |
505070881 |
US $4.03 |
||
|
1
|
1
505070727 Ski precision *ski-precision |
505070727 |
US $108.46 |
||
|
2
|
2
505070764
Pont ass. *bridge-assy
Includes 2 - 3.; |
505070764 |
— | ||
|
3
|
3
505070001 Douille *bushing |
505070001 |
US $17.10 |
||
|
4
|
4
505070917 Poignee jaune *handle-yellow |
505070917 |
US $33.61 |
||
|
5
|
5
860504900
Ens.lisse 6car.*kit-runner 6 carbides
Includes 5 - 6.; |
860504900 |
— | ||
|
6
|
6
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
7
|
7
207085044 Screw-hex.cap din.931 |
207085044 |
US $19.20 |
||
|
8
|
8
207089044 Screw-hex.cap din.931 |
207089044 |
US $22.35 |
||
|
9
|
9
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
10
|
10
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
11
|
11
293150090
Pop rivet 1/4 *rivet-pop 1/4
|
293150090 |
— | ||
|
12
|
12
505070954
Coussinet *cushion
|
505070954 |
— | ||
| replacement | |||||
|
12
|
12
505072690 Coussinet *bushing |
505072690 |
US $12.90 |
||
|
13
|
13
505070671
Butee de ski *stopper-ski
|
505070671 |
— | ||
|
14
|
14
506133300 Entretoise *spacer |
506133300 |
US $22.44 |
||
|
15
|
15
250000001 Screw-hex.cap |
250000001 |
US $19.45 |
||
|
16
|
16
732900049 Rondelle *washer |
732900049 |
US $14.50 |
||
|
17
|
17
732610084 Nut-flange flexloc m10 |
732610084 |
US $44.35 |
||
|
18
|
18
505071094
Jambe ski usine*leg-ski mach.
|
505071094 |
— | ||
|
19
|
19
505071088
Bras inf.droit *arm-lower r.h.
|
505071088 |
— | ||
| replacement | |||||
|
19
|
19
860512500 Bras inf.ass.d.*lower ars rh ass. |
860512500 |
US $254.97 |
||
|
20
|
20
250000118 Screw-hex.cap with nylon patch |
250000118 |
US $14.50 |
||
|
21
|
21
506095800 Bride *clamp |
506095800 |
US $34.10 |
||
|
22
|
22
505070665 Coussinet stab.*bushing-torsion bar |
505070665 |
US $4.40 |
||
|
23
|
23
505070659 Stabilisateur p*stabilisator-p |
505070659 |
US $146.85 |
||
|
24
|
24
505070750 Embout stabilis*boot-stabilisator |
505070750 |
US $9.78 |
||
|
25
|
25
505070874
Bouchon *plug-end
|
505070874 |
— | ||
|
26
|
26
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
27
|
27
505070667
Demi couliss.dr*half-slider rh
|
505070667 |
— | ||
|
28
|
28
505070668
Demi couliss.ga*half-slider lh
|
505070668 |
— | ||
| replacement | |||||
|
28
|
28
505071269
Demi couliss.ga*half-slider lh
|
505071269 |
— | ||
|
29
|
29
207152544 Screw-hex.cap din.933 |
207152544 |
US $8.70 |
||
|
30
|
30
391301700
Rondelle *washer
|
391301700 |
— | ||
|
31
|
31
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
32
|
32
505070904
Amort. avant dr*shock-front rh
|
505070904 |
— | ||
|
33
|
33
505071162
Ressort peint *spring-paint
|
505071162 |
— | ||
|
34
|
34
503140600
Butee ressort *stopper-spring
|
503140600 |
— | ||
| replacement | |||||
|
34
|
34
503191611
Butee ressort *stopper-spring
|
503191611 |
— | ||
|
35
|
35
503141600
Capuchon *cap
|
503141600 |
— | ||
|
36
|
36
207005544 Screw-hex.cap iso.4014 |
207005544 |
US $14.35 |
||
|
37
|
37
207006044 Screw-hex.cap iso.4014 |
207006044 |
US $10.65 |
||
|
38
|
38
732900049 Rondelle *washer |
732900049 |
US $14.50 |
||
|
39
|
39
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
40
|
40
505071165
Bras sup.peint *arm-upper paint
|
505071165 |
— | ||
| replacement | |||||
|
40
|
40
505071727
Bras sup.peint *arm-upper paint
|
505071727 |
— | ||
|
41
|
41
505071082
Joint rotule su*joint-ball upper
|
505071082 |
— | ||
| replacement | |||||
|
41
|
41
505071863
Joint rotule su*joint-ball upper
|
505071863 |
— | ||
|
42
|
42
250000047 Nut-stop elastic din.985 |
250000047 |
US $2.45 |
||
|
43
|
43
234021410 Washer-flat din.125a |
234021410 |
US $9.50 |
||
|
44
|
44
503189276 Rondelle *washer |
503189276 |
US $105.75 |
||
|
45
|
45
211400017 Goupille fendue*pin-cotter |
211400017 |
US $20.50 |
||
|
46
|
46
505071184
Entretoise *spacer
|
505071184 |
— | ||
|
47
|
47
232221414 Nut-hex.castle din.935 |
232221414 |
US $20.50 |
||
|
48
|
48
505071074
Joint rotule *ball joint
|
505071074 |
— | ||
| replacements | |||||
|
48
|
48
505071673 Cale epaisseur *shim |
505071673 |
US $17.29 |
||
|
48
|
48
505072048
Joint rotule *ball joint
|
505072048 |
— | ||
|
49
|
49
293370035 Circlip *circlip |
293370035 |
US $34 |
||
|
50
|
50
250000114 Cone screw m10 x 75 |
250000114 |
US $5.83 |
||
|
51
|
51
207007044 Screw-hex.cap iso.4014 |
207007044 |
US $29.90 |
||
|
52
|
52
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
53
|
53
505070567 Douille *bushing |
505070567 |
US $14.67 |
||
|
54
|
54
505070566 Coussinet *bushing |
505070566 |
US $2.30 |
||
|
55
|
55
233601416 Nut-locking elastic din.982 |
233601416 |
US $21.90 |
||
|
56
|
56
503189564 Rondelle *washer |
503189564 |
US $7.10 |
||
|
57
|
57
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
