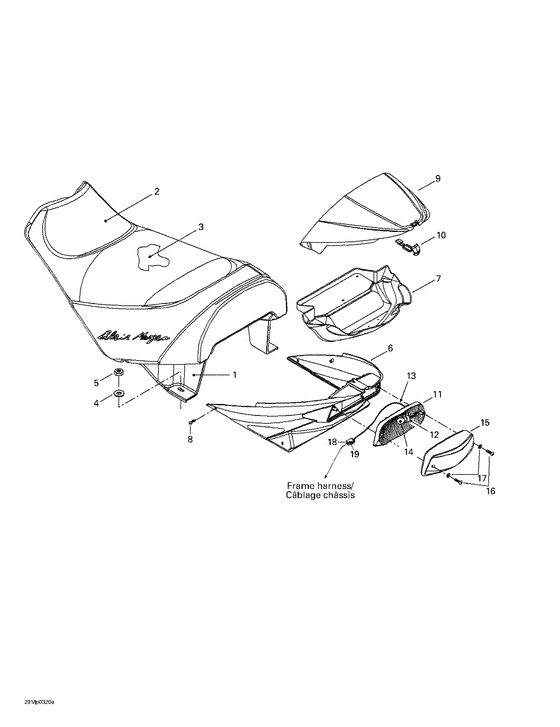

09- seat Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
510003819
Base siege *base-seat
|
510003819 |
— | ||
|
2
|
2
510004176
Housse de siege*cover-seat
|
510004176 |
— | ||
|
3
|
3
510003821
Mousse de siege*foam-seat
|
510003821 |
— | ||
|
4
|
4
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
5
|
5
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
6
|
6
510004138 Coffre *trunk |
510004138 |
US $60.13 |
||
|
7
|
7
510004021 Fond coffre *liner-box |
510004021 |
US $16.29 |
||
|
8
|
8
250000123
Phil-truss m/s-gm6047m nylon patch
|
250000123 |
— | ||
|
9
|
9
510004160
Couvercle *cover
|
510004160 |
— | ||
|
10
|
10
510003917
Attache *bracket
|
510003917 |
— | ||
|
11
|
11
510004018
Reflecteur *reflector
|
510004018 |
— | ||
| replacement | |||||
|
11
|
11
510004442 Reflecteur *reflector |
510004442 |
US $27.49 |
||
|
12
|
12
414979411
Amortissement *damper-rubber
|
414979411 |
— | ||
|
13
|
13
515175940
Raccord *fitting
|
515175940 |
— | ||
|
14
|
14
410504100
Ampoule feu arr*bulb-tail lamp
|
410504100 |
— | ||
| replacement | |||||
|
14
|
14
520000758 Ampoule *bulb |
520000758 |
US $160.50 |
||
|
15
|
15
510003826
Lentille *lens
|
510003826 |
— | ||
| replacement | |||||
|
15
|
15
511000315 Lentille *lens |
511000315 |
US $30.57 |
||
|
16
|
16
209632580 Screw-tapp.pan.hd.ph.din.7981c |
209632580 |
US $58.30 |
||
|
17
|
17
414516400 Washer |
414516400 |
US $0.82 |
||
|
18
|
18
515175494 Logement male *housing-male |
515175494 |
US $90.60 |
||
|
19
|
19
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
