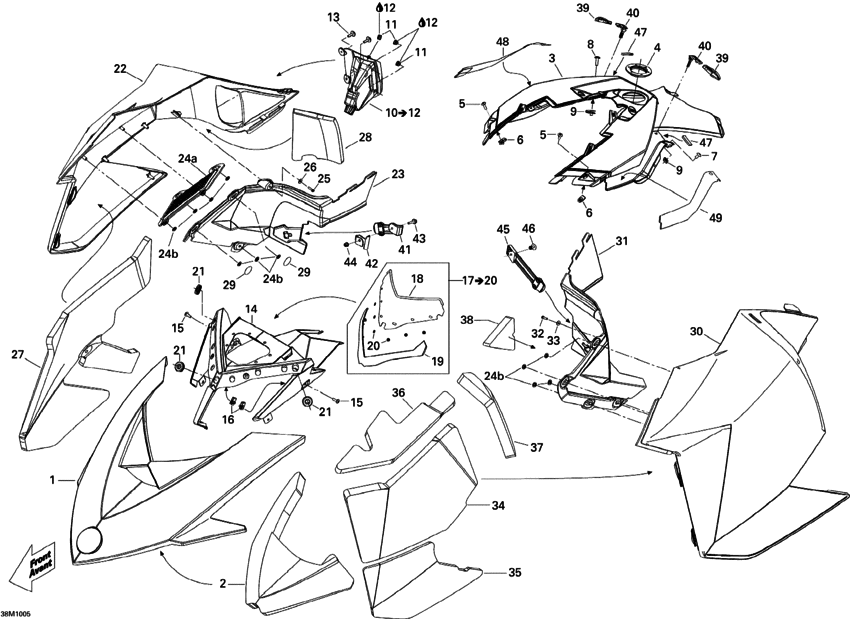

09- Hood Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
517304492 WHITE HOOD |
517304492 |
US $201.93 |
||
|
2
|
2
517303990
Mousse capot foam
|
517303990 |
— | ||
|
3
|
3
517-304-493
Console *console
|
517-304-493 |
— | ||
|
4
|
4
517304518 CONSOLE NUT |
517304518 |
US $13.45 |
||
|
5
|
5
250000128
Torx-truss m/s gm6047m nylon patch
|
250000128 |
— | ||
|
6
|
6
250000048 Extruded panel nut m6 x 1.0 |
250000048 |
US $8.25 |
||
|
7
|
7
250000129 200x-truss m/s gm6047m nylon patch |
250000129 |
US $14.28 |
||
|
8
|
8
250000128
Torx-truss m/s gm6047m nylon patch
|
250000128 |
— | ||
|
9
|
9
250000048 Extruded panel nut m6 x 1.0 |
250000048 |
US $8.25 |
||
|
10
|
10
517304322 Console droite *console-rh |
517304322 |
US $28.51 |
||
|
11
|
11
275500241 Bouchon bouton *plug-cap fuel valve |
275500241 |
US $21.75 |
||
|
12
|
12
413408300 Loctite bl-max *loctite bl.max |
413408300 |
US $31.18 |
||
|
13
|
13
250000113
Screw plastite type k-40 m4 x 16
|
250000113 |
— | ||
|
14
|
14
517303603
Support ind. *indicator support
|
517303603 |
— | ||
|
15
|
15
250000128
Torx-truss m/s gm6047m nylon patch
|
250000128 |
— | ||
|
16
|
16
250000048 Extruded panel nut m6 x 1.0 |
250000048 |
US $8.25 |
||
|
17
|
17
517304226 Pare-brise ass.*windshield ass |
517304226 |
US $106.05 |
||
|
18
|
18
XXX
Not Sold
|
XXX |
— | ||
|
19
|
19
517303757 Support *support |
517303757 |
US $27.34 |
||
|
20
|
20
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
21
|
21
517303756 Rondelle *grommet |
517303756 |
US $5.05 |
||
|
22
|
22
517304422 WHITE RH PANEL |
517304422 |
US $195.81 |
||
|
23
|
23
517304420 RH MOULDING PANEL, VIPER RED |
517304420 |
US $24.45 |
||
|
24a
|
24a
517303622 Grille *grill |
517303622 |
US $27.49 |
||
|
24b
|
24b
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
25
|
25
241141660 Screw-pt.hex.flange k40 x 16 |
241141660 |
US $9.60 |
||
|
26
|
26
234042600 Washer-flat din.9021b-a2 |
234042600 |
US $7.40 |
||
|
27
|
27
517-304-280
Mousse *foam
|
517-304-280 |
— | ||
|
28
|
28
517303982
Mousse *foam
|
517303982 |
— | ||
|
29
|
29
518325560 Rondelle *adhesive patch |
518325560 |
US $5.87 |
||
|
30
|
30
517304426 WHITE LH PANEL |
517304426 |
US $195.81 |
||
|
31
|
31
517304427 LH MOULDING PANEL, VIPER RED |
517304427 |
US $24.45 |
||
|
32
|
32
241141660 Screw-pt.hex.flange k40 x 16 |
241141660 |
US $9.60 |
||
|
33
|
33
234042600 Washer-flat din.9021b-a2 |
234042600 |
US $7.40 |
||
|
34
|
34
517303983
Mousse *foam
|
517303983 |
— | ||
|
35
|
35
517303984
Mousse *foam
|
517303984 |
— | ||
|
36
|
36
517303985
Mousse *foam
|
517303985 |
— | ||
|
37
|
37
517303986
Mousse *foam
|
517303986 |
— | ||
|
38
|
38
517303987
Mousse *foam
|
517303987 |
— | ||
|
39
|
39
517304435 EMBOUT *END PIECE |
517304435 |
US $11 |
||
|
40
|
40
517303981 Loquet panneau *latch-panel |
517303981 |
US $11.27 |
||
|
41
|
41
517303612 Loquet panneau *latch-panel |
517303612 |
US $10.73 |
||
|
42
|
42
517304221 Support loquet *latch support |
517304221 |
US $6.26 |
||
|
43
|
43
207652044 Screw-hex.flange din.6921 |
207652044 |
US $2.45 |
||
|
44
|
44
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
45
|
45
517303808 Loquet panneau *latch-panel |
517303808 |
US $12.51 |
||
|
46
|
46
293150108 Rivet-pop 3/16 *pop rivet 3/16 |
293150108 |
US $1.53 |
||
|
47
|
47
517304105 Decalque *console decal |
517304105 |
US $10.17 |
||
|
48
|
48
517304103 Decalque droit *rh.decal |
517304103 |
US $16.29 |
||
|
49
|
49
517304104 Decalque gauche*lh.decal |
517304104 |
US $16.29 |
