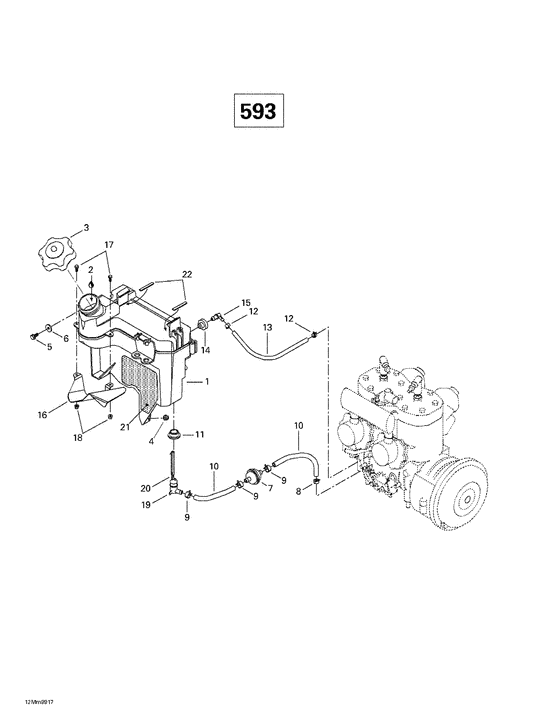

02- oil tank (593) Diagram Bombardier MX Z
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
413802900
Huile 2t 12x1 min+r* oil 2t 12x1 mineral
MXZ 600.; |
413802900 |
— | ||
| replacement | |||||
|
|
293600117 Huile 2t 12x1 *oil 2t 12x1 mineralMXZ 600.; |
293600117 |
US $15.64 |
||
|
|
413803000
Huile 2t 3x1g min+r* oil 2t 3x1g mineral
MXZ 600.; |
413803000 |
— | ||
|
|
413803200
Huile 2t baril * oil 2t drum mineral
MXZ 600.; |
413803200 |
— | ||
|
|
413711000
Huile xps synth*oil-xps synth.
MXZ 600.; |
413711000 |
— | ||
| replacement | |||||
|
|
293600046
Huile 2t 3x1g synth *oil 2t 3x1g synth
MXZ 600.; |
293600046 |
— | ||
|
|
413710700
Huile inj.2stro*oil-inj2stroke
MXZ 600.; |
413710700 |
— | ||
| replacement | |||||
|
|
293600047
Huile 2t baril * oil 2t drum synth
MXZ 600.; |
293600047 |
— | ||
|
|
413710500
Huile xps synth*oil-xps synth.
Bombardier-Rotax Formula XP-S MXZ 600.; |
413710500 |
— | ||
| replacement | |||||
|
|
293600045
Huile 2t 12x1 synth * oil 2t 12x1 synth
Bombardier-Rotax Formula XP-S MXZ 600.; |
293600045 |
— | ||
|
1
|
1
519000000
Reservoir huile*tank-oil
MXZ 600.; |
519000000 |
— | ||
| replacement | |||||
|
1
|
1
519000049
Reservoir huile*tank-oil
MXZ 600.; |
519000049 |
— | ||
|
2
|
2
413803100
Huile pr+-m+l * oil premix 12x500ml
MXZ 600.; |
413803100 |
— | ||
|
3
|
3
519000017
Bouchon *cap
MXZ 600.; |
519000017 |
— | ||
| replacement | |||||
|
3
|
3
519000042 Bouchon *capMXZ 600.; |
519000042 |
US $42.81 |
||
|
4
|
4
233261414 Nut-flange elastic din.6926MXZ 600.; |
233261414 |
US $18.40 |
||
|
5
|
5
210261680 Screw-forming hex.hd.fl.gm6174mMXZ 600.; |
210261680 |
US $13.90 |
||
|
6
|
6
250200000
Washer-lock serrated int.& ext.m6
MXZ 600.; |
250200000 |
— | ||
| replacement | |||||
|
6
|
6
250200041 Washer-lock serrated int.ext.m6MXZ 600.; |
250200041 |
US $14.80 |
||
|
7
|
7
414536500 Filtre huile *filter-oilMXZ 600.; |
414536500 |
US $4.56 |
||
|
8
|
8
414420700 Bride a ressort*clamp-springMXZ 600.; |
414420700 |
US $9.50 |
||
|
9
|
9
414415200 Bride a ressort*clamp-springMXZ 600.; |
414415200 |
US $11.70 |
||
|
10
|
10
415080700 Boyau polyure *hose*polyurethaneMXZ 600.; |
415080700 |
US $30.51 |
||
|
11
|
11
570023000 Bague isolante *ring-insulatedMXZ 600.; |
570023000 |
US $36.20 |
||
|
12
|
12
414554800 Bride a ressort*clamp-springMXZ 600.; |
414554800 |
US $11.70 |
||
|
13
|
13
415080200
Boyau polyure *polyurethane hose
MXZ 600.; |
415080200 |
— | ||
|
14
|
14
570135100
Passe-fils *grommet
MXZ 600.; |
570135100 |
— | ||
| replacement | |||||
|
14
|
14
709200285
GROMMET
MXZ 600.; |
709200285 |
— | ||
|
15
|
15
414580700 Raccord male *connector-maleMXZ 600.; |
414580700 |
US $26.60 |
||
|
16
|
16
519000018
Deflecteur *deflector
MXZ 600.; |
519000018 |
— | ||
| replacement | |||||
|
16
|
16
519000043
Deflecteur *deflector
MXZ 600.; |
519000043 |
— | ||
|
17
|
17
207151244 Screw-hex.cap din.933MXZ 600.; |
207151244 |
US $11.70 |
||
|
18
|
18
228751045
Nut-flange elastic din.6926
MXZ 600.; |
228751045 |
— | ||
| replacement | |||||
|
18
|
18
233251414 Nut-flange elastic din.6926MXZ 600.; |
233251414 |
US $5.36 |
||
|
19
|
19
414681800 Conct.niveau *switch-levelMXZ 600.; |
414681800 |
US $29.53 |
||
|
20
|
20
414681900 Flotteur huile *floatMXZ 600.; |
414681900 |
US $11.66 |
||
| replacements | |||||
|
20
|
20
278001013 Joint de fil *seal-wireMXZ 600.; |
278001013 |
from US $4.80 |
||
|
20
|
20
515176327 Conct.niveau *switch-levelMXZ 600.; |
515176327 |
US $64.23 |
||
|
20
|
20
278001014 Cosse femelle *terminal-femalMXZ 600.; |
278001014 |
from US $6.09 |
||
|
20
|
20
409209500 Logement femel.*housing-femal.MXZ 600.; |
409209500 |
from US $15.23 |
||
|
21
|
21
519000023
Feuille reflect*sheet-reflect
MXZ 600.; |
519000023 |
— | ||
|
22
|
22
293250008 Joint etanche *gasketMXZ 600.; |
293250008 |
US $15.73 |
||
