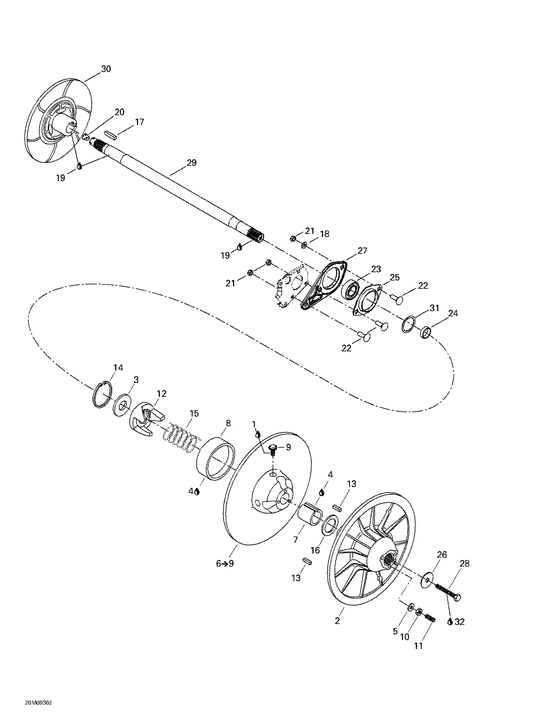

05- driven pulley Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
417300054
Entretoise *spacer
|
417300054 |
— | ||
|
|
504112000 Cale epaisseur *shim |
504112000 |
US $30.35 |
||
|
1
|
1
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
2
|
2
417126478
Flasque fixe us*flange-fix.mach
|
417126478 |
— | ||
| replacement | |||||
|
2
|
2
417126650
Flasque fixe us*fixed flange mach.
|
417126650 |
— | ||
|
3
|
3
504141800
Rondelle *washer
|
504141800 |
— | ||
|
4
|
4
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
5
|
5
420245370 Rondelle *washer |
420245370 |
US $7.10 |
||
|
6
|
6
417126739
Sliding flange ass'y
Includes 6 - 9.; |
417126739 |
— | ||
|
7
|
7
417126515 Coussinet dp *cushion-dp |
417126515 |
US $27.49 |
||
|
8
|
8
417126514
Coussinet dp *cushion-dp
|
417126514 |
— | ||
|
9
|
9
417126601 Rouleau *roller |
417126601 |
US $226.35 |
||
|
10
|
10
232061414 Nut-hexagonal din.934 |
232061414 |
US $6.80 |
||
|
11
|
11
206263044 Screw-set socket din.913 |
206263044 |
US $22.10 |
||
|
12
|
12
417126737 Came usine *cam-mach. |
417126737 |
US $277.41 |
||
|
13
|
13
414820800 Clavette *key |
414820800 |
US $35.45 |
||
|
14
|
14
371903100 Circlip *circlip |
371903100 |
US $51.35 |
||
|
15
|
15
414558900
Ressort rappel *spring-release
|
414558900 |
— | ||
|
16
|
16
504141900 Rondelle appuie*washer-thrust |
504141900 |
US $8.13 |
||
|
17
|
17
507021300 Clavette *key |
507021300 |
US $13.45 |
||
|
18
|
18
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
19
|
19
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
20
|
20
414784800 Bouchon liege *cork |
414784800 |
US $3.01 |
||
|
21
|
21
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
22
|
22
207782544 Bolt-carriage din.603 |
207782544 |
US $10.20 |
||
|
23
|
23
504152026
Roulement bille*ball bearing
|
504152026 |
— | ||
| replacement | |||||
|
23
|
23
504152535
Roulement bille*ball bearing
|
504152535 |
— | ||
|
24
|
24
417126302 Spacer |
417126302 |
US $16.29 |
||
|
25
|
25
501026900
Flasque *flange
|
501026900 |
— | ||
|
26
|
26
517302322 Rondelle force *washer-strength |
517302322 |
US $11.17 |
||
|
27
|
27
504151968 Entretoise *spacer |
504151968 |
US $15.27 |
||
|
28
|
28
207087544 Screw-hex.cap din.931 |
207087544 |
US $15.80 |
||
|
29
|
29
504152020 Arbre renvoi p.*shaft-counter p. |
504152020 |
US $300.85 |
||
|
30
|
30
507032363
Disque usine *disk mach.
|
507032363 |
— | ||
|
31
|
31
417300231
Entretoise *spacer
|
417300231 |
— | ||
| replacement | |||||
|
31
|
31
417300252 Entretoise *spacer |
417300252 |
US $5.07 |
||
|
32
|
32
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
