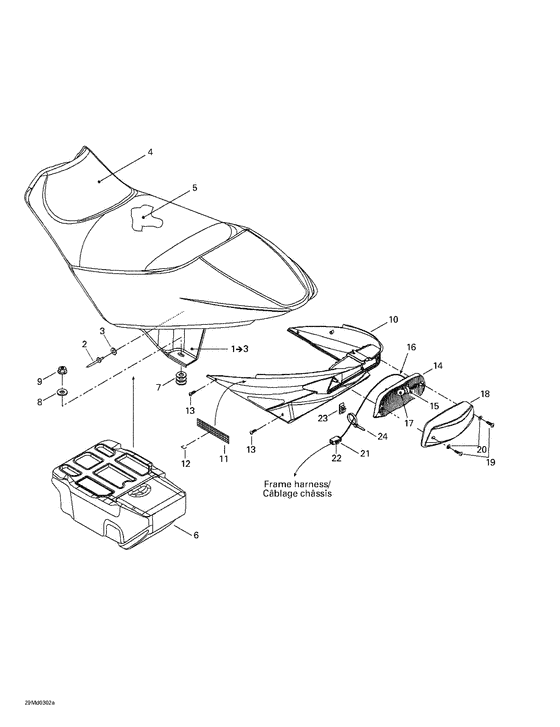

09- seat Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
510004145
Base siege ass.*seat base assy
Includes 1 - 3.; |
510004145 |
— | ||
|
2
|
2
390901700
Rivet pop 3/16"
|
390901700 |
— | ||
|
3
|
3
517225900 Washer - flat |
517225900 |
US $2.40 |
||
|
4
|
4
510004154
Housse de siege*cover-seat
|
510004154 |
— | ||
|
5
|
5
510004155
Mousse siege pu*foam-seat pu
|
510004155 |
— | ||
|
6
|
6
510004161 Mousse epp *foam epp |
510004161 |
US $96.87 |
||
|
7
|
7
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
8
|
8
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
9
|
9
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
10
|
10
510004147
Coffre
|
510004147 |
— | ||
|
11
|
11
415110900 Velcro mva *velcro mva #8-1/2 |
415110900 |
US $12.58 |
||
|
12
|
12
510004183
Broche
|
510004183 |
— | ||
|
13
|
13
250000123
Phil-truss m/s-gm6047m nylon patch
|
250000123 |
— | ||
|
14
|
14
510004018
Reflecteur *reflector
|
510004018 |
— | ||
| replacement | |||||
|
14
|
14
510004442 Reflecteur *reflector |
510004442 |
US $27.49 |
||
|
15
|
15
414979411
Amortissement *damper-rubber
|
414979411 |
— | ||
|
16
|
16
515175940
Raccord *fitting
|
515175940 |
— | ||
|
17
|
17
410504100
Ampoule feu arr*bulb-tail lamp
|
410504100 |
— | ||
| replacement | |||||
|
17
|
17
520000758 Ampoule *bulb |
520000758 |
US $160.50 |
||
|
18
|
18
510003826
Lentille *lens
|
510003826 |
— | ||
| replacement | |||||
|
18
|
18
511000315 Lentille *lens |
511000315 |
US $30.57 |
||
|
19
|
19
209632580 Screw-tapp.pan.hd.ph.din.7981c |
209632580 |
US $58.30 |
||
|
20
|
20
414516400 Washer |
414516400 |
US $0.82 |
||
|
21
|
21
515175494 Logement male *housing-male |
515175494 |
US $90.60 |
||
|
22
|
22
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
23
|
23
293750015 Ancrage tie rap*mount-tie rap |
293750015 |
US $15.05 |
||
|
24
|
24
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
