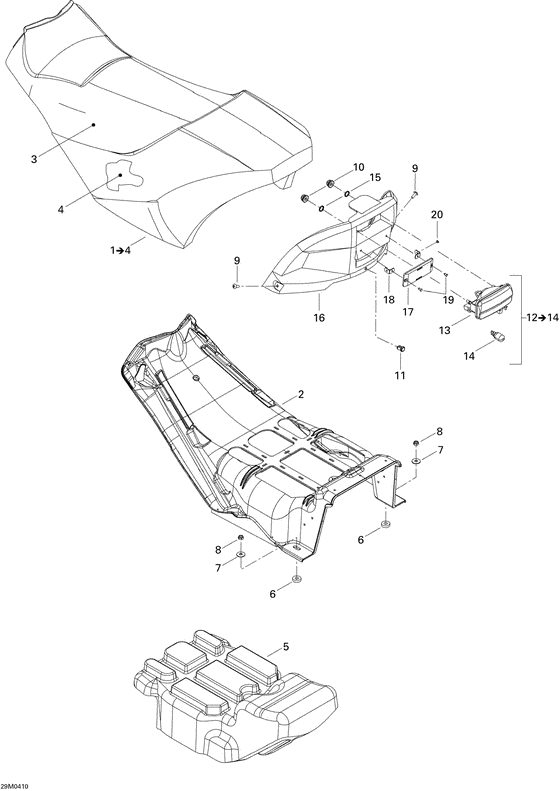

09- seat Diagram Bombardier MX Z
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
510004317
New Genuine Part
INCLUDES 1 TO 4; |
510004317 |
— | ||
|
2
|
2
510004430
Base siege *seat base
|
510004430 |
— | ||
| replacement | |||||
|
2
|
2
510004658 Base siege *seat base |
510004658 |
US $85.65 |
||
|
3
|
3
510004320 Housse de siege*seat cover |
510004320 |
US $405.93 |
||
|
4
|
4
510004321 Mousse siege pu*foam-seat pu |
510004321 |
US $236.61 |
||
|
5
|
5
510004161 Mousse epp *foam epp |
510004161 |
US $96.87 |
||
|
6
|
6
510004418 Rondelle *washer |
510004418 |
US $73.30 |
||
|
7
|
7
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
8
|
8
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
9
|
9
250000129 200x-truss m/s gm6047m nylon patch |
250000129 |
US $14.28 |
||
|
10
|
10
705001119
Grommet - rubber
|
705001119 |
— | ||
| replacement | |||||
|
10
|
10
705003666 RUBBER GROMMET |
705003666 |
US $6.63 |
||
|
11
|
11
293150089
Plastique rivet tuflok
|
293150089 |
— | ||
| replacement | |||||
|
11
|
11
293150230 TUFLOK PLASTIC RIVET |
293150230 |
US $1.90 |
||
|
12
|
12
510004319
Feu arr.ass e *rear light ass
INCLUDES 12 TO 14; |
510004319 |
— | ||
|
13
|
13
710000652
Boitier *lens housing
|
710000652 |
— | ||
|
14
|
14
710000653 Ampoule *bulb |
710000653 |
US $2.09 |
||
|
15
|
15
293300006 Joint torique *o-ring |
293300006 |
US $57.10 |
||
|
19
|
19
390403000 Rivet-pop 5/32 *rivet-pop 5/32 |
390403000 |
US $25.50 |
||
|
20
|
20
293150059 Rivet-pop 5/32 *rivet-pop 5/32 |
293150059 |
US $18.75 |
||
