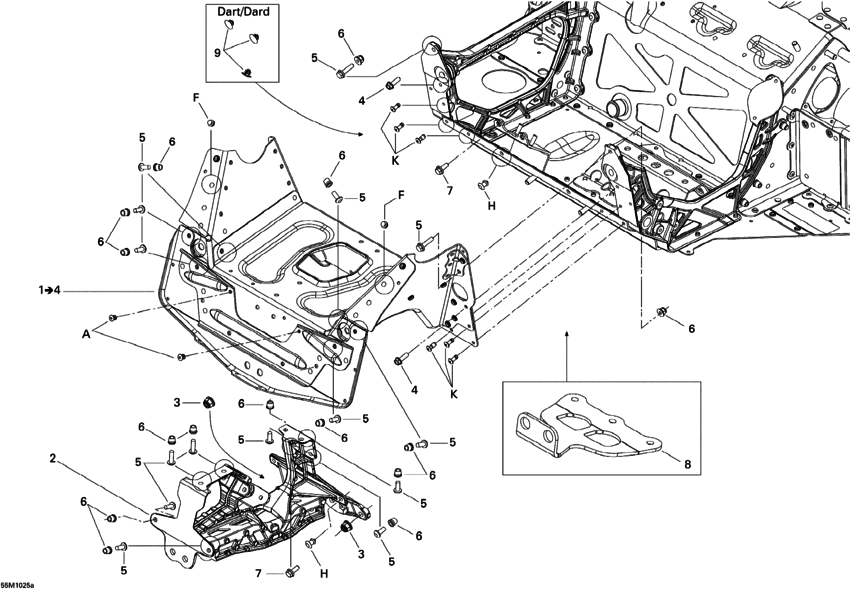

09- Frame And Components 1 Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
518325946
Module s *cross member
|
518325946 |
— | ||
|
2
|
2
518325925
Support *support
|
518325925 |
— | ||
| replacement | |||||
|
2
|
2
518327487 FRONT SUSPENSION SUPPORT |
518327487 |
US $317.10 |
||
|
3
|
3
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
4
|
4
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
5
|
5
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
6
|
6
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
7
|
7
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
8
|
8
518326466 MODULE REINFORCEMENT |
518326466 |
US $27.49 |
||
|
9
|
9
293730042 Dard 5-6 *dart 5-6 |
293730042 |
US $2.84 |
||
|
A
|
A
293150144 Rivet stavex *stavex rivet |
293150144 |
US $21.80 |
||
|
B
|
B
293150120 Rivet hemlock *rivet-hemlock 6.5mm |
293150120 |
US $37.80 |
||
|
C
|
C
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
D
|
D
293150104 Pop rivet 3/16 |
293150104 |
US $34 |
||
|
E
|
E
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
F
|
F
293150091 Rivet henrob *rivet-henrob |
293150091 |
US $19.50 |
||
|
G
|
G
293150146 Rivet henrob *henrob rivet |
293150146 |
US $20.10 |
||
|
H
|
H
293150147 Rivet *rivet |
293150147 |
US $4.22 |
||
|
I
|
I
293150174 Rivet hemlok *hemlok rivet |
293150174 |
US $96.10 |
||
|
J
|
J
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
K
|
K
293150175
Monobolt 4.8 *monobolt 4.8
|
293150175 |
— | ||
|
L
|
L
293150182 MONOBOLT 6.4 |
293150182 |
US $3.13 |
||
