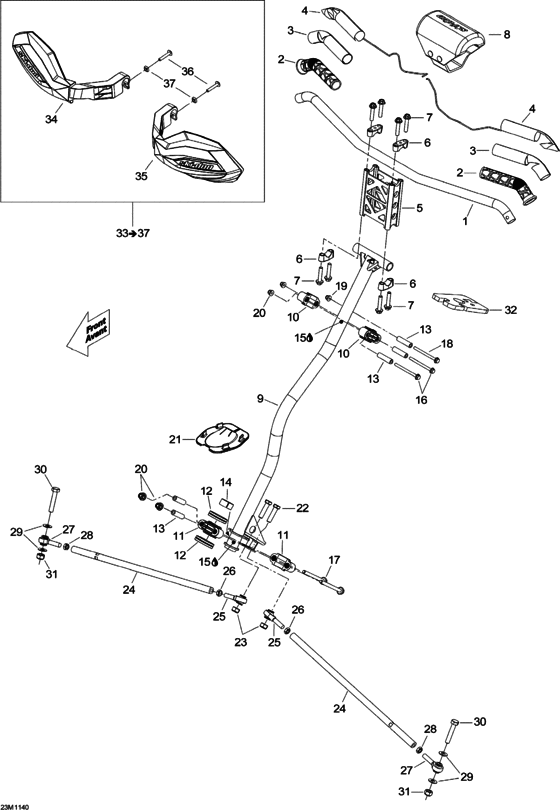

07- Steering Diagram Bombardier MX Z
- Year
- 2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
506152087 Hand bar paint |
506152087 |
US $103.99 |
||
|
2
|
2
506152226
Grip
|
506152226 |
— | ||
| replacement | |||||
|
2
|
2
506152486 GRIP |
506152486 |
US $17.09 |
||
|
3
|
3
506-152-484
Element chauff.*heated film
|
506-152-484 |
— | ||
|
4
|
4
506152360 Isolant *isolant |
506152360 |
US $5.41 |
||
|
5
|
5
506152457 HANDLE BAR EXTENSION |
506152457 |
US $97.89 |
||
|
6
|
6
506152395 Support guidon *steering support |
506152395 |
US $12.22 |
||
|
7
|
7
250000352 Screw hexagonal flange m8 |
250000352 |
US $13.05 |
||
|
8
|
8
506152522 PAD-STEERING |
506152522 |
US $48.93 |
||
|
9
|
9
506152478 ARBRE DIR.PEINT*TUBE-MAIN PAINT |
506152478 |
US $232.53 |
||
|
10
|
10
506152293 Demi logement *half-housing |
506152293 |
US $9.78 |
||
|
11
|
11
506152217 Demi logement *half-housing |
506152217 |
US $12.39 |
||
|
12
|
12
506152218
Joint vib. *vibrat. gasket
|
506152218 |
— | ||
|
13
|
13
506152297 Douille logem. *bushing-housing |
506152297 |
US $9.78 |
||
|
14
|
14
506152440 RETAINING RING |
506152440 |
US $21.39 |
||
|
15
|
15
293550033
Synthetic grease
|
293550033 |
— | ||
|
16
|
16
207667086 Screw-hex.flange din.6921 |
207667086 |
US $2.01 |
||
|
17
|
17
207667044 Screw-hex.flange din.6921 |
207667044 |
US $1.09 |
||
|
18
|
18
207667086 Screw-hex.flange din.6921 |
207667086 |
US $2.01 |
||
|
19
|
19
233261416 Nut-flange elastic din.6926 |
233261416 |
US $2.72 |
||
|
20
|
20
233261416 Nut-flange elastic din.6926 |
233261416 |
US $2.72 |
||
|
21
|
21
506152163 Plaque *plate |
506152163 |
US $11.93 |
||
|
22
|
22
207004034 Screw-hex.cap iso 4014 |
207004034 |
US $2.01 |
||
|
23
|
23
232500416 Nut-stop elastic din.985 |
232500416 |
US $9.80 |
||
|
24
|
24
506152500 TIE-ROD |
506152500 |
US $55.03 |
||
|
25
|
25
506152081 Joint rotule *ball joint |
506152081 |
US $40.39 |
||
|
26
|
26
250100016 Nut-jam hexagonal lh. |
250100016 |
US $9.50 |
||
|
27
|
27
506152019 Joint rotule *ball joint |
506152019 |
US $44.93 |
||
|
28
|
28
732610010 Nut-jam hexagonal rh. |
732610010 |
US $9.50 |
||
|
29
|
29
506152194 Rondelle *washer |
506152194 |
US $4.15 |
||
|
30
|
30
207006044 Screw-hex.cap iso.4014 |
207006044 |
US $10.65 |
||
|
31
|
31
232500416 Nut-stop elastic din.985 |
232500416 |
US $9.80 |
||
|
32
|
32
506152476 COUSSINET *CUSHION |
506152476 |
US $9.78 |
||
|
33
|
33
860-200-437
Deflecteur air *wind deflector
|
860-200-437 |
— | ||
|
34
|
34
517304656 RH DEFLECTOR, YELLOW |
517304656 |
US $48.93 |
||
|
35
|
35
517304657 LH DEFLECTOR, YELLOW |
517304657 |
US $48.93 |
||
|
36
|
36
250000501 PHILLIPS SCREW M6 X 35 |
250000501 |
US $10.14 |
||
|
37
|
37
250000498 NUT-SQUARE M6 DIN.557 |
250000498 |
US $10.14 |
||
