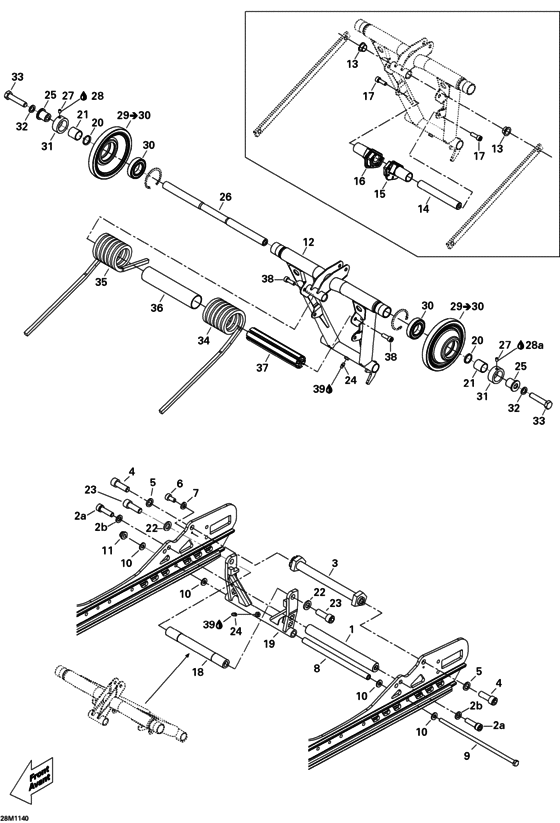

08- Rear Arm Diagram Bombardier MX Z
- Year
- 2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503192715 AXE LIMITEUR *LIMIT AXEL |
503192715 |
US $73.41 |
||
|
2a
|
2a
205003544 Screw-socket hd.din.912 |
205003544 |
US $21.80 |
||
|
2b
|
2b
503189564 Rondelle *washer |
503189564 |
US $7.10 |
||
|
3
|
3
503192716 CAM AXLE |
503192716 |
US $232.53 |
||
|
4
|
4
205523587 Screw-socket hd.din.912 s.grip |
205523587 |
US $8.04 |
||
|
5
|
5
503189276 Rondelle *washer |
503189276 |
US $105.75 |
||
|
6
|
6
205061260 Screw-socket hd.din.912a2 |
205061260 |
US $20.10 |
||
|
7
|
7
234161471 Washer-lock black din.127b |
234161471 |
US $6.80 |
||
|
8
|
8
503189156 Axe jumelle *axle-pivot |
503189156 |
US $19.57 |
||
|
9
|
9
503192440 BOLT M8 X 248MM |
503192440 |
US $27.49 |
||
|
10
|
10
503192494 RONDELLE *WASHER |
503192494 |
US $20.50 |
||
|
11
|
11
250100131 ELASTIC FLANGE NUT M8 |
250100131 |
US $1.12 |
||
|
12
|
12
503-192-691
Bras arriere s.*arm-rear w.
|
503-192-691 |
— | ||
|
13
|
13
503191555 Coussinet pivot*swivel-bushing |
503191555 |
US $5.54 |
||
|
14
|
14
503191178 Axe de came *axe cam |
503191178 |
US $24.45 |
||
|
15
|
15
503191191 Came ressort ga*cam-spring lh |
503191191 |
US $13.45 |
||
|
16
|
16
503191190 Came ressort dr*cam-spring rh |
503191190 |
US $13.45 |
||
|
17
|
17
205582544 Screw-socket hd.din.912 s.grip |
205582544 |
US $9.80 |
||
|
18
|
18
503192095 Axe inferieur *shaft-lower |
503192095 |
US $42.81 |
||
|
19
|
19
503192701 PIVOT ARM |
503192701 |
US $255.97 |
||
|
20
|
20
503191774 Rondelle *washer |
503191774 |
US $2.18 |
||
|
21
|
21
503191773 Couss. all *ext. bushing |
503191773 |
US $13.45 |
||
|
22
|
22
503189148 Rondelle *washer |
503189148 |
US $18.30 |
||
|
23
|
23
205523587 Screw-socket hd.din.912 s.grip |
205523587 |
US $8.04 |
||
|
24
|
24
408200700 Graisseur *grease fitting |
408200700 |
US $46.60 |
||
|
25
|
25
503191775 Coussinet *bushing |
503191775 |
US $14.67 |
||
|
26
|
26
503191776 Axe superieur *shaft-upper |
503191776 |
US $42.81 |
||
|
27
|
27
206260844 Screw-set socket din.913 |
206260844 |
US $9.60 |
||
|
28
|
28
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
29
|
29
503192483 BLACK WHEEL ASS Y 155 MM |
503192483 |
US $48.93 |
||
|
30
|
30
503191778 Roulement bille*ball bearing |
503191778 |
US $12.22 |
||
|
31
|
31
503191782 Bague d appui *ring-retaining |
503191782 |
US $26.90 |
||
|
32
|
32
503189276 Rondelle *washer |
503189276 |
US $105.75 |
||
|
33
|
33
207226044 Screw-hex.cap iso.4014 s.grip |
207226044 |
US $19.45 |
||
|
34
|
34
503191615 Ressort ga.pein*spring lh pain |
503191615 |
US $55.03 |
||
|
35
|
35
503191614 Ressort peint *spring paint |
503191614 |
US $55.03 |
||
|
36
|
36
503191345 Douille plast. *bushing-plastic |
503191345 |
US $5.53 |
||
|
37
|
37
503191344 Axe ressort *spring axle |
503191344 |
US $29.53 |
||
|
38
|
38
205582544 Screw-socket hd.din.912 s.grip |
205582544 |
US $9.80 |
||
|
39
|
39
293550033
Synthetic grease
|
293550033 |
— |
